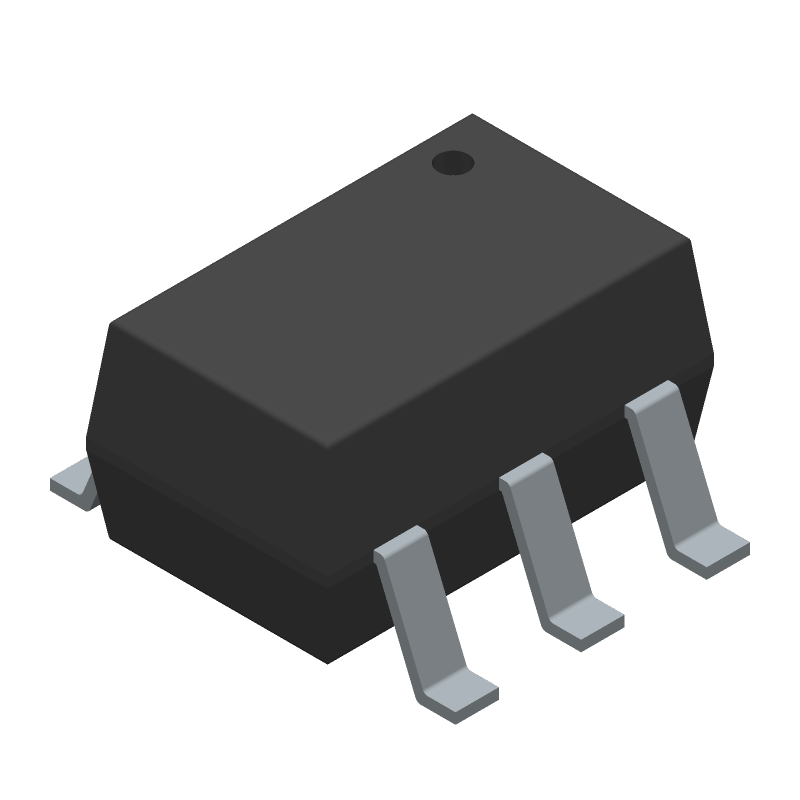

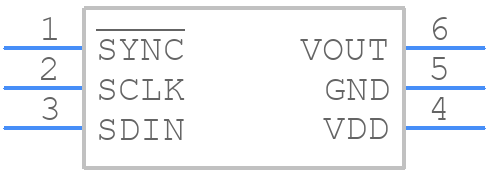

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5641BKSZ-500RL7 by Analog Devices Inc
Results Overview of AD5641BKSZ-500RL7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD5641BKSZ-500RL7 Information
AD5641BKSZ-500RL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5641BKSZ-500RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6579
|
Newark | Dac, 14Bit, Sc-70-6, -40 To 125Deg C, Resolution (Bits):14Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:2.7V To 5.5V, Adc/Dac Case Style:Sc-70, No. Of Pins:6Pins Rohs Compliant: Yes |Analog Devices AD5641BKSZ-500RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 181 |
|
$3.2400 / $6.6600 | Buy Now |
|
DISTI #
505-AD5641BKSZ-500RL7CT-ND
|
DigiKey | IC DAC 14BIT V-OUT SC70-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3940 In Stock |
|
$3.1875 / $7.6500 | Buy Now |
|
DISTI #
584-AD5641BKSZ-500R7
|
Mouser Electronics | Digital to Analog Converters - DAC 2.7 V to 5.5 V, nanoDAC , SPI Interface in LFCSP and SC70 RoHS: Compliant | 5612 |
|
$3.1800 / $6.0900 | Buy Now |
|
|
Analog Devices Inc | Single 2.7-5.5V 14Bit DAC in S Package Multiple: 500 | 788 |
|
$2.4200 / $7.6500 | Buy Now |
|
DISTI #
26616384
|
Verical | DAC 1-CH Resistor-String 14-bit 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 1500 |
|
$3.2075 | Buy Now |
|
DISTI #
AD5641BKSZ500R7
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 500 | 0 |
|
$3.3400 / $3.3800 | Buy Now |
|
|
Vyrian | Converters | 1532 |
|
RFQ | |
|
|
Win Source Electronics | IC DAC 14BIT V-OUT SC70-6 | 2750 |
|
$5.2136 / $7.8203 | Buy Now |
Part Details for AD5641BKSZ-500RL7
AD5641BKSZ-500RL7 CAD Models
AD5641BKSZ-500RL7 Part Data Attributes
|
|
AD5641BKSZ-500RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5641BKSZ-500RL7
Analog Devices Inc
2.7 V to 5.5 V, nanoDAC®, SPI Interface in LFCSP and SC70
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-203-AB, SC-70, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | KS-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 3 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 0.1 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 1.25 mm |
