AD5622AKSZ-2500RL7 by: Analog Devices Inc

2.7 V to 5.5 V, <100 &#181;A, 12-Bit nanoDAC&reg; with I<sup>2</sup>C Compatible Interface, Tiny SC70 Package

Part Details for AD5622AKSZ-2500RL7 by Analog Devices Inc

Results Overview of AD5622AKSZ-2500RL7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Agriculture Technology Medical Imaging Telecommunications Automotive

AD5622AKSZ-2500RL7 Information

AD5622AKSZ-2500RL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD5622AKSZ-2500RL7

Part # Distributor Description Stock Price Buy
DISTI # 80AK4579
Newark D/A Converter, 12Bit, Sc-70-6 Rohs Compliant: Yes |Analog Devices AD5622AKSZ-2500RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 981
  • 1 $5.3500
  • 10 $3.9300
  • 25 $3.7200
  • 50 $3.5200
  • 100 $3.3100
  • 250 $3.0100
  • 500 $2.8200
  • 1,000 $2.5900
$2.5900 / $5.3500 Buy Now
DISTI # AD5622AKSZ-2500RL7CT-ND
DigiKey IC DAC 12BIT V-OUT SC70-6 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 932
In Stock
  • 1 $6.4000
  • 10 $4.2300
  • 25 $3.6640
  • 100 $3.0238
  • 250 $2.7094
  • 500 $2.5160
  • 1,000 $2.5000
$2.5000 / $6.4000 Buy Now
DISTI # 584-AD5622AKSZ2500R7
Mouser Electronics Digital to Analog Converters - DAC Single 2.7-5.5V 12bit I2C DAC in SC-70 RoHS: Compliant 379
  • 1 $4.9000
  • 10 $3.7200
  • 25 $3.3700
  • 100 $2.9700
  • 250 $2.8300
  • 500 $2.6600
  • 1,000 $2.6000
  • 2,500 $2.5800
$2.5800 / $4.9000 Buy Now
DISTI # V72:2272_06209932
Arrow Electronics DAC 1-CH Resistor-String 12-bit 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2246 Container: Cut Strips Americas - 184
  • 1 $3.0180
  • 10 $2.7390
  • 25 $2.6470
  • 100 $2.5650
$2.5650 / $3.0180 Buy Now
Analog Devices Inc Single 2.7-5.5V 12bit I2C DAC Package Multiple: 500 5687
  • 1 $6.4000
  • 10 $4.2300
  • 25 $3.6640
  • 100 $3.0238
  • 250 $2.7094
  • 500 $2.5160
  • 1,000 $2.5000
$2.5000 / $6.4000 Buy Now
DISTI # 26616195
Verical DAC 1-CH Resistor-String 12-bit 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 5500
  • 500 $2.5157
$2.5157 Buy Now
DISTI # 66298720
Verical DAC 1-CH Resistor-String 12-bit 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2246 Americas - 184
  • 3 $3.0180
  • 10 $2.7390
  • 25 $2.6470
  • 100 $2.5650
$2.5650 / $3.0180 Buy Now
Rochester Electronics AD5622 - 2.7V to 5.5V, LESS THAN 100uA, 12-Bit nanoDAC with I2C-Compatible Interface RoHS: Compliant Status: Active Min Qty: 1 1
  • 25 $2.6300
  • 100 $2.5000
  • 500 $2.3700
  • 1,000 $2.2400
  • 10,000 $2.1000
$2.1000 / $2.6300 Buy Now
DISTI # AD5622AKSZ2.5R7
Richardson RFPD CONVERTER - DAC RoHS: Compliant Min Qty: 500 0
  • 500 $2.6500
  • 1,000 $2.6100
$2.6100 / $2.6500 Buy Now

Part Details for AD5622AKSZ-2500RL7

AD5622AKSZ-2500RL7 CAD Models

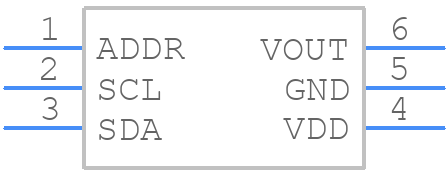

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD5622AKSZ-2500RL7 Part Data Attributes

Parametric Data
AD5622AKSZ-2500RL7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD5622AKSZ-2500RL7 Analog Devices Inc 2.7 V to 5.5 V, <100 &#181;A, 12-Bit nanoDAC&reg; with I<sup>2</sup>C Compatible Interface, Tiny SC70 Package
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSSOP
Package Description SC-70, 6 PIN
Pin Count 6
Manufacturer Package Code KS-6
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Output Voltage-Max 5.5 V
Analog Output Voltage-Min
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format SERIAL
JESD-30 Code R-PDSO-G6
JESD-609 Code e4
Length 2 mm
Linearity Error-Max (EL) 0.1465%
Moisture Sensitivity Level 1
Number of Bits 12
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSSOP6,.08
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1 mm
Settling Time-Max 10 µs
Settling Time-Nom (tstl) 6 µs
Supply Current-Max 0.1 mA
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Width 1.25 mm
