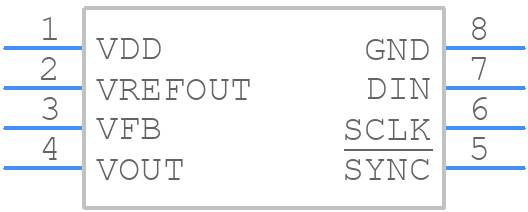

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5620CRMZ-3 by Analog Devices Inc
Results Overview of AD5620CRMZ-3 by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5620CRMZ-3 Information
AD5620CRMZ-3 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5620CRMZ-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9685
|
Newark | Dac, 12Bit, Msop-8, -40 To 105Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:3 Wire, Dsp, Microwire, Qspi, Serial, Spi, Supply Voltage Range:4.5V To 5.5V, Adc/Dac Case Style:Msop, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices AD5620CRMZ-3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 45 |
|
$4.1500 / $7.3500 | Buy Now |
|
DISTI #
584-AD5620CRMZ-3
|
Mouser Electronics | Digital to Analog Converters - DAC Single 5V 12bit SPI DAC with reference RoHS: Compliant | 0 |
|
$3.9200 / $8.0500 | Order Now |
|
|
Analog Devices Inc | Single 5V 12bit SPI DAC with r Package Multiple: 50 | 380 |
|
$2.9200 / $8.9200 | Buy Now |
|
DISTI #
26736247
|
Verical | DAC 1-CH Resistor-String 12-bit 8-Pin MSOP Tube RoHS: Compliant Min Qty: 150 Package Multiple: 150 | Americas - 300 |
|
$3.8837 | Buy Now |
|
DISTI #
AD5620CRMZ-3
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 150 | 0 |
|
$4.1100 / $4.2700 | Buy Now |
Part Details for AD5620CRMZ-3
AD5620CRMZ-3 CAD Models
AD5620CRMZ-3 Part Data Attributes
|
|
AD5620CRMZ-3
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5620CRMZ-3
Analog Devices Inc
Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-187AA, MSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5.5 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 10 µs | |
| Settling Time-Nom (tstl) | 8 µs | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for AD5620CRMZ-3
This table gives cross-reference parts and alternative options found for AD5620CRMZ-3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5620CRMZ-3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5620CRMZ-1 | Analog Devices Inc | $4.5058 | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRMZ-1 |
| AD5620CRM-3REEL7 | Analog Devices Inc | Check for Price | IC SERIAL INPUT LOADING, 8 us SETTLING TIME, 12-BIT DAC, PDSO8, MO-187AA, MSOP-8, Digital to Analog Converter | AD5620CRMZ-3 vs AD5620CRM-3REEL7 |
| AD5620CRMZ-3REEL7 | Analog Devices Inc | Check for Price | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRMZ-3REEL7 |
| AD5620CRMZ-2REEL7 | Analog Devices Inc | Check for Price | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRMZ-2REEL7 |
| AD5620CRM-2REEL7 | Analog Devices Inc | Check for Price | SERIAL INPUT LOADING, 8us SETTLING TIME, 12-BIT DAC, PDSO8, MO-187AA, MSOP-8 | AD5620CRMZ-3 vs AD5620CRM-2REEL7 |
| AD5620CRMZ-1REEL7 | Analog Devices Inc | Check for Price | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRMZ-1REEL7 |
| AD5620ARMZ-2REEL7 | Analog Devices Inc | Check for Price | SERIAL INPUT LOADING, 8us SETTLING TIME, 12-BIT DAC, PDSO8, ROHS COMPLIANT, MO-187AA, MSOP-8 | AD5620CRMZ-3 vs AD5620ARMZ-2REEL7 |
| AD5620CRM-1REEL7 | Analog Devices Inc | Check for Price | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRM-1REEL7 |
| AD5620CRM-2 | Analog Devices Inc | Check for Price | SERIAL INPUT LOADING, 8us SETTLING TIME, 12-BIT DAC, PDSO8, MO-187AA, MSOP-8 | AD5620CRMZ-3 vs AD5620CRM-2 |
| AD5620CRM-1 | Analog Devices Inc | Check for Price | Single, 12-Bit nanoDAC® with 5 ppm/°C On-Chip Reference in SOT-23 | AD5620CRMZ-3 vs AD5620CRM-1 |
AD5620CRMZ-3 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly.
-
To ensure accurate voltage output, it is essential to decouple the AVDD and VDD pins with 0.1 μF and 10 μF capacitors, respectively. Additionally, use a low-noise, low-dropout voltage regulator to power the AD5620.
-
The maximum output current of the AD5620 is 5 mA. Exceeding this current limit can cause damage to the device.
-
The AD5620 can be interfaced with a microcontroller using a standard SPI interface. The microcontroller should be configured as a master, and the AD5620 as a slave. Ensure that the microcontroller's clock frequency is within the AD5620's specified clock frequency range.
-
The CLR (Clear) pin is an active-low input that resets the DAC output to zero scale (00000000) when pulled low. This pin can be used to reset the DAC output to a known state during power-up or when the device is not in use.
