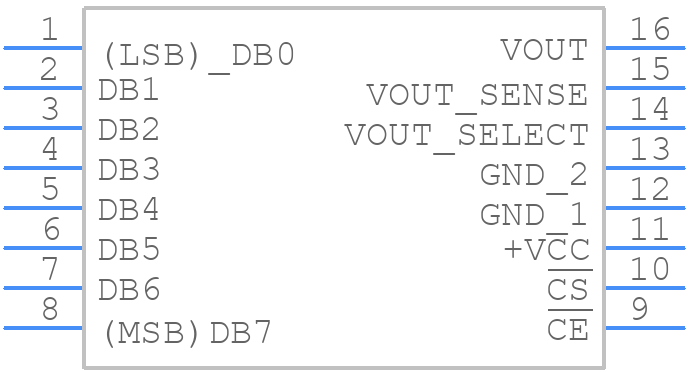

Part Symbol
-

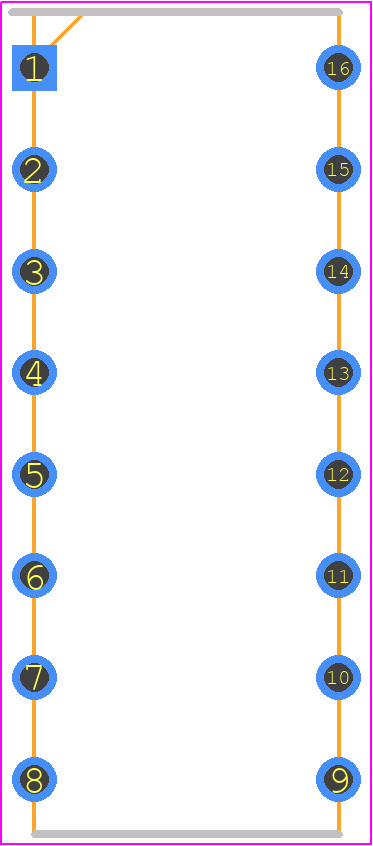

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD558SD by Analog Devices Inc
Results Overview of AD558SD by Analog Devices Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD558SD Information
AD558SD by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD558SD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9235
|
Newark | Dac, 8Bit, Sbdip-16, -55 To 125Deg C, Resolution (Bits):8Bit, Sampling Rate:-, Data Interface:Parallel, Supply Voltage Range:4.5V To 16.5V, 11.4V To 16.5V, Adc/Dac Case Style:Sbdip, No. Of Pins:16Pins Rohs Compliant: No |Analog Devices AD558SD RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 33 |
|
$74.5900 / $88.9100 | Buy Now |
|
DISTI #
AD558SD-ND
|
DigiKey | IC DAC 8BIT V-OUT 16CDIP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
15 In Stock |
|
$74.5874 / $88.9100 | Buy Now |
|
DISTI #
584-AD558SD
|
Mouser Electronics | Digital to Analog Converters - DAC IC, MONO 8-BIT D/A CONVER RoHS: Not Compliant | 10 |
|
$85.4000 / $101.8300 | Buy Now |
|
DISTI #
V99:2348_06209710
|
Arrow Electronics | DAC 1-CH R-2R/Current Steering 8-bit 16-Pin SBCDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2244 | Americas - 3 |
|
$75.7300 / $88.6400 | Buy Now |
|
DISTI #
25965830
|
Verical | DAC 1-CH R-2R/Current Steering 8-bit 16-Pin SBCDIP Tube RoHS: Not Compliant Min Qty: 8 Package Multiple: 8 | Americas - 552 |
|
$73.8033 | Buy Now |
|
DISTI #
83354812
|
Verical | DAC 1-CH R-2R/Current Steering 8-bit 16-Pin SBCDIP Tube RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2244 | Americas - 3 |
|
$75.7300 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 3 |
|
$105.3000 | Buy Now |
|
|
Quest Components | PARALLEL, 8 BITS INPUT LOADING, 2 US SETTLING TIME, 8-BIT DAC, CDIP16 | 14 |
|
$68.8500 / $76.5000 | Buy Now |
|
|
Quest Components | PARALLEL, 8 BITS INPUT LOADING, 2 US SETTLING TIME, 8-BIT DAC, CDIP16 | 2 |
|
$114.0750 | Buy Now |
|
|
Rochester Electronics | DACPort Microprocessor 8-Bit DAC RoHS: Not Compliant Status: Active Min Qty: 1 | 111 |
|
$62.8100 / $78.5100 | Buy Now |
Part Details for AD558SD
AD558SD CAD Models
AD558SD Part Data Attributes
|
|
AD558SD
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD558SD
Analog Devices Inc
Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | DIP | |
| Package Description | DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | D-16 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 3A001.A.2.C | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 2.56 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | COMPLEMENTARY OFFSET BINARY | |
| Input Format | PARALLEL, 8 BITS | |
| JESD-30 Code | R-CDIP-T16 | |
| JESD-609 Code | e0 | |
| Length | 20.32 mm | |
| Linearity Error-Max (EL) | 0.293% | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Settling Time-Max | 3 µs | |
| Settling Time-Nom (tstl) | 0.8 µs | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for AD558SD
This table gives cross-reference parts and alternative options found for AD558SD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD558SD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD558JNZ | Analog Devices Inc | $21.5790 | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs AD558JNZ |
| 5962-87789012A | Analog Devices Inc | Check for Price | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs 5962-87789012A |
| AD558JN/+ | Analog Devices Inc | Check for Price | IC PARALLEL, 8 BITS INPUT LOADING, 0.8 us SETTLING TIME, 8-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter | AD558SD vs AD558JN/+ |
| AD558KD | Analog Devices Inc | Check for Price | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs AD558KD |
| AD558JD | Analog Devices Inc | Check for Price | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs AD558JD |
| 5962-8778901EA | Analog Devices Inc | Check for Price | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs 5962-8778901EA |
| 5962-8778901EX | Defense Logistics Agency | Check for Price | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP16, DIP-16 | AD558SD vs 5962-8778901EX |
| 5962-8778902EA | Defense Logistics Agency | Check for Price | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP16, DIP-16 | AD558SD vs 5962-8778902EA |
| 5962-87789012X | Analog Devices Inc | Check for Price | IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CQCC20, CERAMIC, LCC-20, Digital to Analog Converter | AD558SD vs 5962-87789012X |
| AD558TD/883B | Analog Devices Inc | Check for Price | Voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision | AD558SD vs AD558TD/883B |
AD558SD Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
To ensure accurate voltage reference output, it is essential to decouple the VREF pin with a 0.1uF capacitor to ground, and also to use a low-impedance voltage source for the VCC pin.
-
The AD558SD can drive up to 100pF of capacitive load on the VOUT pin. Exceeding this limit may cause oscillations or instability in the output voltage.
-
To minimize noise and interference, use a ground plane, keep the analog and digital grounds separate, and use shielding or twisted pairs for signal wiring. Also, avoid running digital signals near the analog signal paths.
-
The thermal shutdown temperature of the AD558SD is typically around 150°C. If the junction temperature exceeds this value, the device will shut down to prevent damage.
