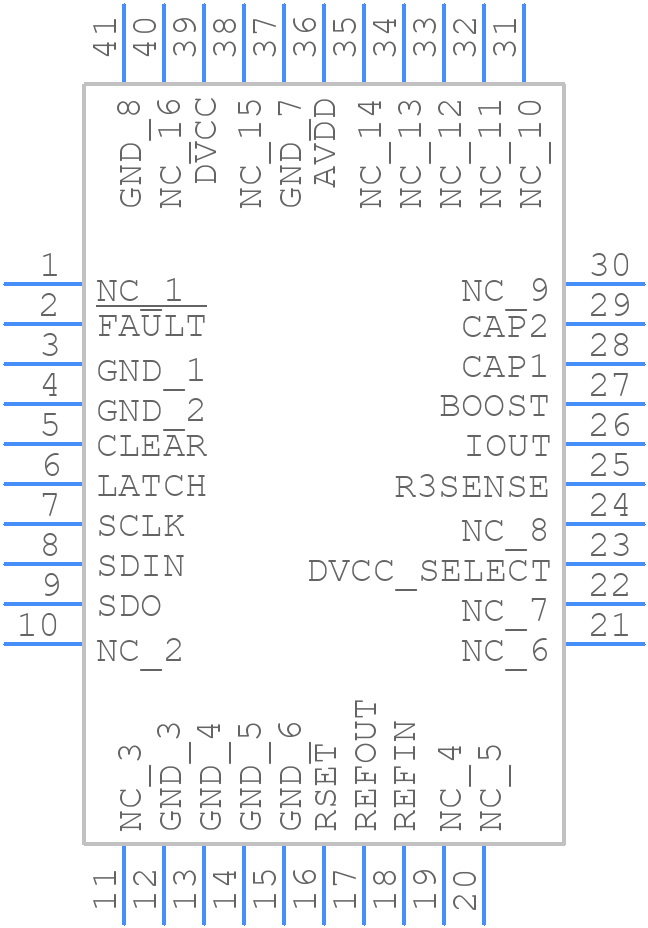

Part Symbol
-
Footprint
-

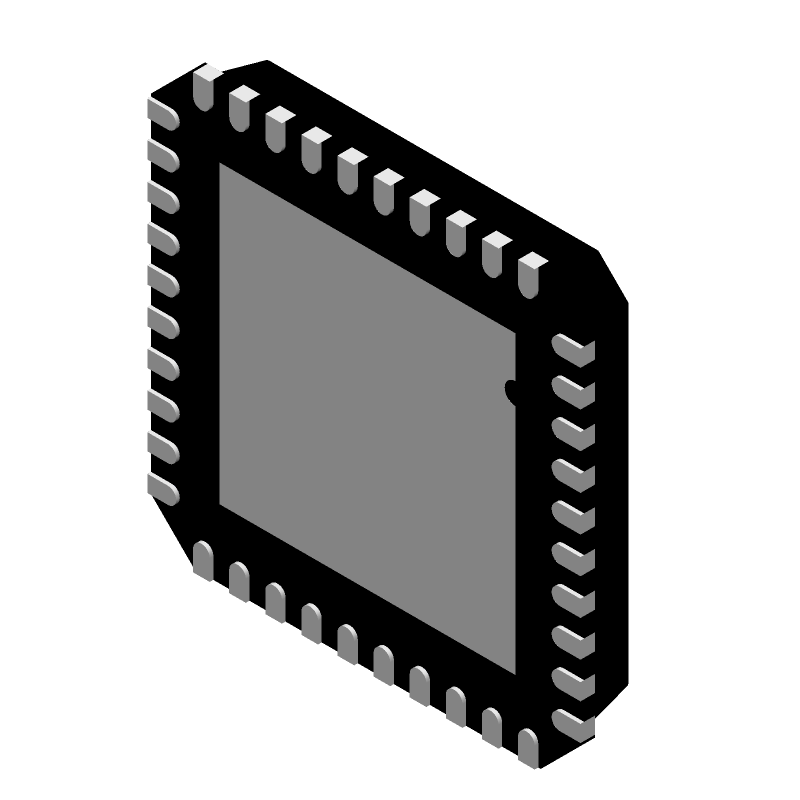

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5410ACPZ-REEL7 by Analog Devices Inc
Results Overview of AD5410ACPZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD5410ACPZ-REEL7 Information
AD5410ACPZ-REEL7 by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5410ACPZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62AK1407
|
Newark | Dac, 12Bit, Lfcsp-40, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices AD5410ACPZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 112 |
|
$8.1000 / $12.2900 | Buy Now |
|
DISTI #
505-AD5410ACPZ-REEL7CT-ND
|
DigiKey | IC DAC 12BIT A-OUT 40LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1360 In Stock |
|
$6.5125 / $13.0100 | Buy Now |
|
DISTI #
584-AD5410ACPZ-R7
|
Mouser Electronics | Digital to Analog Converters - DAC 12Bit 1Current Source out DAC RoHS: Compliant | 709 |
|
$6.5200 / $11.6300 | Buy Now |
|
|
Analog Devices Inc | 12Bit 1Current Source out DAC Min Qty: 1 Package Multiple: 750 | 272 |
|
$4.9500 / $13.0100 | Buy Now |
|
DISTI #
AD5410ACPZ-R7
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 750 | 0 |
|
$6.8100 / $6.9100 | Buy Now |
|
|
LCSC | 10us 10.8V40V 12 Bits LFCSP-40(6x6) Digital to Analog Converters (DAC) ROHS | 6 |
|
$10.3539 / $10.6995 | Buy Now |
|
|
Vyrian | Converters | 251 |
|
RFQ |
Part Details for AD5410ACPZ-REEL7
AD5410ACPZ-REEL7 CAD Models
AD5410ACPZ-REEL7 Part Data Attributes
|
|
AD5410ACPZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5410ACPZ-REEL7
Analog Devices Inc
Single-Channel, 12-Bit, Serial Input, 4 mA to 20 mA, Current Source DAC, HART Connectivity
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | LFCSP-40 | |
| Pin Count | 40 | |
| Manufacturer Package Code | CP-40-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 23.9 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-XQCC-N40 | |
| JESD-609 Code | e3 | |
| Length | 6 mm | |
| Linearity Error-Max (EL) | 0.032% | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC40,.24SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Settling Time-Nom (tstl) | 40 µs | |
| Supply Current-Max | 4 mA | |
| Supply Voltage-Nom | 24 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm |
Alternate Parts for AD5410ACPZ-REEL7
This table gives cross-reference parts and alternative options found for AD5410ACPZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5410ACPZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5410ACPZ | Analog Devices Inc | Check for Price | SERIAL INPUT LOADING, 12-BIT DAC, QCC40, MO-220VJJD-2, LFCSP-40 | AD5410ACPZ-REEL7 vs AD5410ACPZ |
AD5410ACPZ-REEL7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital sections separate and use a star-grounding scheme to minimize noise.
-
Use a high-quality input capacitor (e.g., X5R or X7R ceramic) with a value of at least 10uF, and place it close to the VIN pin. Also, ensure the output capacitor is of sufficient value (e.g., 10uF to 22uF) and is placed close to the output pin.
-
The AD5410 is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation above 85°C.
-
Use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input and output lines to reduce EMI. Also, ensure good grounding and decoupling of the device.
-
Yes, the AD5410 can be used in a redundant or parallel configuration to increase the output current. However, it's essential to ensure proper synchronization and current sharing between the devices to avoid instability and overheating.
