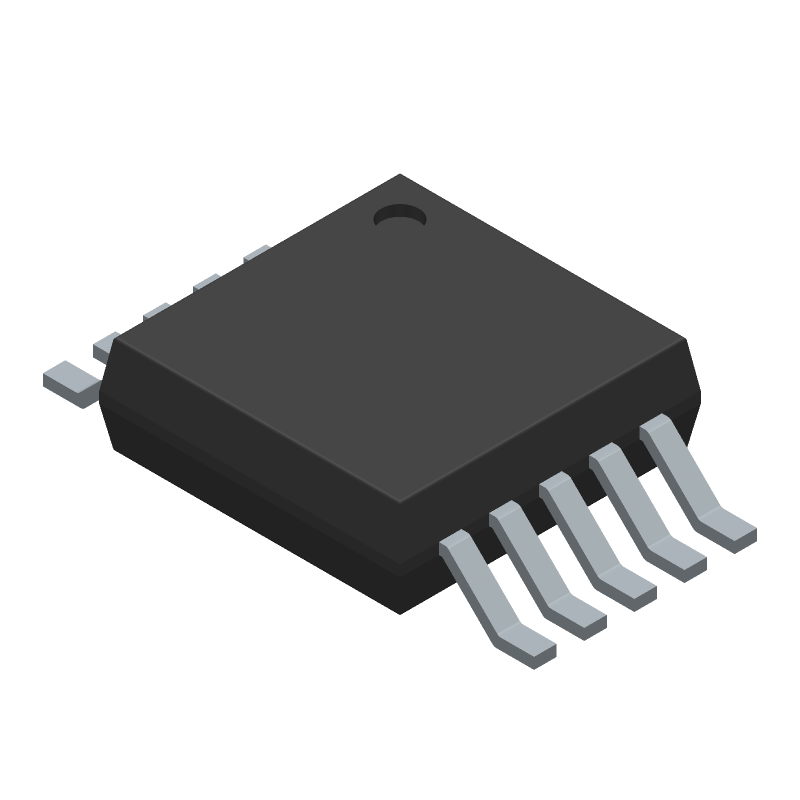

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
2.5 V to 5.5 V, 500 µA Quad Voltage Output 12-Bit DAC in 10-Lead Packages
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AD5324BRMZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
60AK6426
|
Newark | Dac, 12Bit, Msop-10, -40 To 105Deg C, Resolution (Bits):12Bit, Sampling Rate:-, Data Interface:3 Wire, Microwire, Qspi, Serial, Spi, Supply Voltage Range:2.5V To 5.5V, Adc/Dac Case Style:Msop, No. Of Pins:10Pins Rohs Compliant: Yes |Analog Devices AD5324BRMZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 57 |
|
$13.1500 / $21.0100 | Buy Now |
DISTI #
505-AD5324BRMZ-ND
|
DigiKey | IC DAC 12BIT V-OUT 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
2232 In Stock |
|
$12.4500 / $21.3200 | Buy Now |
DISTI #
584-AD5324BRMZ
|
Mouser Electronics | Digital to Analog Converters - DAC 12-BIT QUAD DAC I.C. RoHS: Compliant | 837 |
|
$13.0000 / $21.0100 | Buy Now |
DISTI #
E54:1762_00109712
|
Arrow Electronics | DAC 4-CH Resistor-String 12-bit 10-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2345 | Europe - 83 |
|
$13.7258 / $20.9680 | Buy Now |
|
Analog Devices Inc | 12-BIT QUAD DAC I.C. Package Multiple: 50 | 447 |
|
$8.9100 / $21.3200 | Buy Now |
DISTI #
81705724
|
Verical | DAC 4-CH Resistor-String 12-bit 10-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2345 | Americas - 83 |
|
$13.7258 / $20.9680 | Buy Now |
|
Bristol Electronics | 9 |
|
RFQ | ||
DISTI #
AD5324BRMZ
|
TME | IC: D/A converter, 12bit, 125ksps, Ch: 4, 2.5÷5.5V, SOP10 Min Qty: 1 | 0 |
|
$13.7000 / $18.4000 | RFQ |
|
ComSIT USA | 2.5 V TO 5.5 V, 500 MICROAMP, QUAD VOLTAGE OUTPUT 12-BIT DAC IN 10-LEAD PACKAGE D/A Converter, 1 Func, Serial Input Loading, 8us Settling Time, PDSO10 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
NexGen Digital | 2849 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
AD5324BRMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5324BRMZ
Analog Devices Inc
2.5 V to 5.5 V, 500 µA Quad Voltage Output 12-Bit DAC in 10-Lead Packages
|
Pbfree Code | No | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Part Package Code | TSSOP | |
Package Description | MSOP-10 | |
Pin Count | 10 | |
Manufacturer Package Code | RM-10 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Analog Devices | |
Analog Output Voltage-Max | 5.499 V | |
Analog Output Voltage-Min | 0.001 V | |
Converter Type | D/A CONVERTER | |
Input Bit Code | BINARY | |
Input Format | SERIAL | |
JESD-30 Code | S-PDSO-G10 | |
JESD-609 Code | e3 | |
Length | 3 mm | |
Linearity Error-Max (EL) | 0.2441% | |
Moisture Sensitivity Level | 1 | |
Number of Bits | 12 | |
Number of Functions | 1 | |
Number of Terminals | 10 | |
Operating Temperature-Max | 105 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | TSSOP | |
Package Equivalence Code | TSSOP10,.19,20 | |
Package Shape | SQUARE | |
Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
Peak Reflow Temperature (Cel) | 260 | |
Qualification Status | Not Qualified | |
Seated Height-Max | 1.1 mm | |
Settling Time-Max | 10 µs | |
Settling Time-Nom (tstl) | 8 µs | |
Supply Current-Max | 0.9 mA | |
Supply Voltage-Nom | 3 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | Matte Tin (Sn) | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.5 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Width | 3 mm |
This table gives cross-reference parts and alternative options found for AD5324BRMZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5324BRMZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
AD5324BRM | Analog Devices Inc | Check for Price | 2.5 V to 5.5 V, 500 µA Quad Voltage Output 12-Bit DAC in 10-Lead Packages | AD5324BRMZ vs AD5324BRM |
AD5324BRM-REEL7 | Analog Devices Inc | Check for Price | 2.5 V to 5.5 V, 500 µA Quad Voltage Output 12-Bit DAC in 10-Lead Packages | AD5324BRMZ vs AD5324BRM-REEL7 |
AD5324BRMZ-REEL | Analog Devices Inc | Check for Price | 2.5 V to 5.5 V, 500 µA Quad Voltage Output 12-Bit DAC in 10-Lead Packages | AD5324BRMZ vs AD5324BRMZ-REEL |
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVCC pin.
To ensure accuracy, the internal voltage reference should be calibrated during the manufacturing process. Additionally, the VREF pin should be decoupled with a low-ESR capacitor and the AVCC pin should be decoupled with a 0.1uF capacitor. The device should also be operated within the recommended temperature range.
The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC), and then the logic inputs. This ensures that the internal voltage reference is stable before the digital circuitry is enabled.
During power-down or reset, the digital output of the AD5324BRMZ may be in a high-impedance state. To avoid any potential issues, it is recommended to use a pull-down resistor or a bus holder circuit to ensure the digital output is in a defined state.
The AD5324BRMZ has a SYNC pin that can be used to synchronize the conversion with an external clock or trigger signal. The SYNC pin should be driven with a logic signal that meets the device's input requirements, and the conversion will be triggered on the rising edge of the SYNC signal.
