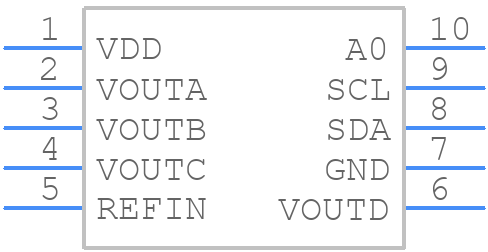

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5305ARMZ by Analog Devices Inc
Results Overview of AD5305ARMZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD5305ARMZ Information
AD5305ARMZ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5305ARMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6394
|
Newark | Dac, 8Bit, Msop-10, -40 To 105Deg C, Resolution (Bits):8Bit, Sampling Rate:-, Data Interface:2 Wire, I2C, Serial, Supply Voltage Range:2.5V To 5.5V, Adc/Dac Case Style:Msop, No. Of Pins:10Pins, Input Channel Type:Single Ended Rohs Compliant: Yes |Analog Devices AD5305ARMZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 80 |
|
$4.2200 / $7.5200 | Buy Now |
|
DISTI #
AD5305ARMZ-ND
|
DigiKey | IC DAC 8BIT V-OUT 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
42 In Stock |
|
$4.0250 / $9.0800 | Buy Now |
|
DISTI #
584-AD5305ARMZ
|
Mouser Electronics | Digital to Analog Converters - DAC 8-BIT QUAD I2C DAC I.C. RoHS: Compliant | 462 |
|
$4.0200 / $8.2200 | Buy Now |
|
DISTI #
V36:1790_06207555
|
Arrow Electronics | DAC 4-CH Resistor-String 8-bit 10-Pin MSOP Tube RoHS: Compliant Min Qty: 150 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2237 | Americas - 39 |
|
$4.0160 / $4.4740 | Buy Now |
|
|
Analog Devices Inc | 8-BIT QUAD I2C DAC I.C. Package Multiple: 50 | 4509 |
|
$2.8600 / $9.0800 | Buy Now |
|
DISTI #
25018800
|
Verical | DAC 4-CH Resistor-String 8-bit 10-Pin MSOP Tube RoHS: Compliant Min Qty: 150 Package Multiple: 150 | Americas - 4500 |
|
$3.9827 | Buy Now |
|
|
Rochester Electronics | 2.5V to 5.5V, 500uA, 2-WIRE Interface Quad Voltage Output, 8-Bit DAC RoHS: Compliant Status: Active Min Qty: 1 | 20 |
|
$3.3900 / $4.2400 | Buy Now |
|
DISTI #
AD5305ARMZ
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 150 | 0 |
|
$4.2100 / $4.3800 | Buy Now |
Part Details for AD5305ARMZ
AD5305ARMZ CAD Models
AD5305ARMZ Part Data Attributes
|
|
AD5305ARMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5305ARMZ
Analog Devices Inc
2.5 V to 5.5 V, 500 µA, 2-Wire Interface Quad Voltage Output 8-Bit DAC in a 10-Lead MicroSOIC Package
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-187BA, MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | RM-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 5.499 V | |
| Analog Output Voltage-Min | 0.001 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 0.3906% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Settling Time-Max | 8 µs | |
| Settling Time-Nom (tstl) | 6 µs | |
| Supply Current-Max | 0.9 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for AD5305ARMZ
This table gives cross-reference parts and alternative options found for AD5305ARMZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5305ARMZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5305ARMZ-REEL7 | Analog Devices Inc | $4.8654 | 2.5 V to 5.5 V, 500 µA, 2-Wire Interface Quad Voltage Output 8-Bit DAC in a 10-Lead MicroSOIC Package | AD5305ARMZ vs AD5305ARMZ-REEL7 |
| AD5305ARM | Analog Devices Inc | Check for Price | IC SERIAL INPUT LOADING, 6 us SETTLING TIME, 8-BIT DAC, PDSO10, MO-187BA, MSOP-10, Digital to Analog Converter | AD5305ARMZ vs AD5305ARM |
AD5305ARMZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly.
-
To ensure accurate voltage reference output, it is essential to decouple the VREF pin with a 10uF capacitor to GND, and also to ensure that the input voltage (VDD) is within the recommended operating range.
-
The AD5305 can sink or source up to 10mA of current from the VOUT pin, making it suitable for driving low-power devices.
-
The AD5305 can be programmed to output a specific voltage by applying the desired digital code to the 16-bit parallel input. The output voltage is determined by the equation: VOUT = (VREF x D) / 65536, where D is the decimal equivalent of the 16-bit code.
-
The settling time of the AD5305 output voltage is typically 10us, allowing for fast and accurate voltage output.
