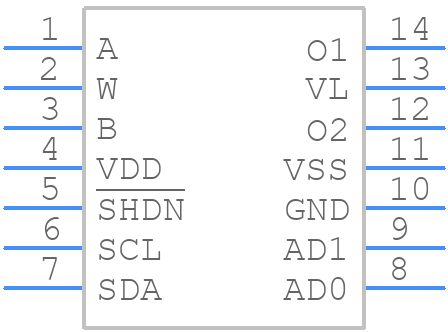

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5280BRUZ200-R7 by Analog Devices Inc
Results Overview of AD5280BRUZ200-R7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Audio and Video Systems
Entertainment and Gaming
AD5280BRUZ200-R7 Information
AD5280BRUZ200-R7 by Analog Devices Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5280BRUZ200-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49AK9204
|
Newark | Digital Potentiometer, Single, 256 Step, End To End Resistance:200Kohm, No. Of Pots:Single, Control Interface:2 Wire, I2C, Serial, Track Taper:Linear, Resistance Tolerance:± 30%, Supply Voltage Min:4.5V, Supply Voltage Max:16.5V Rohs Compliant: Yes |Analog Devices AD5280BRUZ200-R7 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 953 |
|
$3.3600 / $6.1400 | Buy Now |
|
DISTI #
505-AD5280BRUZ200-R7CT-ND
|
DigiKey | IC DGT POT 200KOHM 256TP 14TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
995 In Stock |
|
$3.2125 / $7.6900 | Buy Now |
|
DISTI #
584-AD5280BRUZ200-R7
|
Mouser Electronics | Digital Potentiometer ICs Single/Dual, +15 V/ 5 V, 256-Position, I2C-Compatible Digital Potentiometer RoHS: Compliant | 1000 |
|
$3.2900 / $6.1400 | Buy Now |
|
|
Analog Devices Inc | 8-Bit I2C Dig POT Min Qty: 1 Package Multiple: 1000 | 78199 |
|
$3.2125 / $7.6900 | Buy Now |
|
DISTI #
26633611
|
Verical | Digital Potentiometer 200kOhm 256POS Volatile 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 78000 |
|
$3.1787 | Buy Now |
|
|
Rochester Electronics | Single/Dual, +15 V/ 5 V, 256-Position, I2C-Compatible Digital Potentiometer RoHS: Compliant Status: Active Min Qty: 1 | 113 |
|
$2.7000 / $3.3800 | Buy Now |
|
|
Win Source Electronics | IC DGT POT 200KOHM 256TP 14TSSOP / Digital Potentiometer 200k Ohm 1 Circuit 256 Taps I²C Interface 14-TSSOP | 8750 |
|
$4.1325 / $6.1987 | Buy Now |
Part Details for AD5280BRUZ200-R7
AD5280BRUZ200-R7 CAD Models
AD5280BRUZ200-R7 Part Data Attributes
|
|
AD5280BRUZ200-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5280BRUZ200-R7
Analog Devices Inc
Single/Dual, +15 V/±5 V, 256-Position, I2C-Compatible Digital Potentiometer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, MO-153AB-1, TSSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | RU-14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | CAN ALSO OPERATE FROM A SINGLE +5V TO +15V SUPPLY; ALSO REQUIRES A +2.7V TO +5.5V LOGIC SUPPLY | |
| Bandwidth-Nom | 0.035 kHz | |
| Control Interface | 2-WIRE SERIAL | |
| Converter Type | DIGITAL POTENTIOMETER | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Negative Supply Voltage-Nom | -5 V | |
| Number of Functions | 1 | |
| Number of Positions | 256 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Resistance Law | LINEAR | |
| Resistance Tolerance-Max | 30% | |
| Resistor Terminal Voltage-Max | 5 V | |
| Resistor Terminal Voltage-Min | -5 V | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Coefficient-Nom | 30 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Resistance-Nom | 200000 Ω | |
| Width | 4.4 mm |
Alternate Parts for AD5280BRUZ200-R7
This table gives cross-reference parts and alternative options found for AD5280BRUZ200-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD5280BRUZ200-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD5280BRUZ200 | Analog Devices Inc | $3.9881 | Single/Dual, +15 V/±5 V, 256-Position, I2C-Compatible Digital Potentiometer | AD5280BRUZ200-R7 vs AD5280BRUZ200 |
| AD5280BRU200 | Analog Devices Inc | Check for Price | IC 200K DIGITAL POTENTIOMETER, 2-WIRE SERIAL CONTROL INTERFACE, 256 POSITIONS, PDSO14, MO-153AB-1, TSSOP-14, Digital Potentiometer | AD5280BRUZ200-R7 vs AD5280BRU200 |
| AD5280BRU200-REEL7 | Analog Devices Inc | Check for Price | IC 200K DIGITAL POTENTIOMETER, 2-WIRE SERIAL CONTROL INTERFACE, 256 POSITIONS, PDSO14, MO-153AB-1, TSSOP-14, Digital Potentiometer | AD5280BRUZ200-R7 vs AD5280BRU200-REEL7 |
