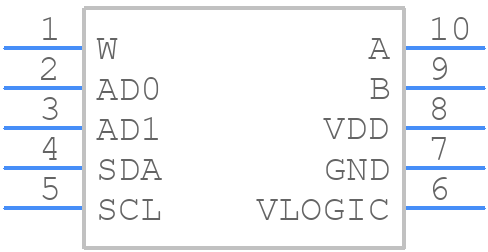

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5258BRMZ10-R7 by Analog Devices Inc
Results Overview of AD5258BRMZ10-R7 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
AD5258BRMZ10-R7 Information
AD5258BRMZ10-R7 by Analog Devices Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5258BRMZ10-R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9637
|
Newark | Digital Potentiometer, Single, 64 Step, End To End Resistance:10Kohm, No. Of Pots:Single, Control Interface:I2C, Serial, Track Taper:Linear, Resistance Tolerance:± 30%, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices AD5258BRMZ10-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 960 |
|
$0.9870 / $2.1300 | Buy Now |
|
DISTI #
AD5258BRMZ10-R7CT-ND
|
DigiKey | IC DGTL POT 10KOHM 64TAP 10MSOP Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
28698 In Stock |
|
$0.9875 / $3.2800 | Buy Now |
|
DISTI #
584-AD5258BRMZ10-R7
|
Mouser Electronics | Digital Potentiometer ICs 6-Bit I2C EEMEM DigiPOT RoHS: Compliant | 34440 |
|
$0.9870 / $1.6000 | Buy Now |
|
DISTI #
V72:2272_06208749
|
Arrow Electronics | Digital Potentiometer 10kOhm 64POS Non-Volatile 10-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2231 Container: Cut Strips | Americas - 7 |
|
$1.0131 | Buy Now |
|
|
Analog Devices Inc | 6-Bit I2C EEMEM DigiPOT Min Qty: 1 Package Multiple: 1000 | 5740 |
|
$0.9875 / $3.2800 | Buy Now |
|
|
Bristol Electronics | 299 |
|
RFQ | ||
|
|
Quest Components | 10K DIGITAL POTENTIOMETER, 2-WIRE SERIAL CONTROL INTERFACE, 64 POSITIONS, PDSO10 | 239 |
|
$1.4291 / $3.0900 | Buy Now |
|
|
LCSC | 30% I2C 2.7V5.5V 10k MSOP-10 Digital Potentiometers ROHS | 2 |
|
$1.2063 / $2.1811 | Buy Now |
Part Details for AD5258BRMZ10-R7
AD5258BRMZ10-R7 CAD Models
AD5258BRMZ10-R7 Part Data Attributes
|
|
AD5258BRMZ10-R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5258BRMZ10-R7
Analog Devices Inc
Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | 3 X 4.90 MM, ROHS COMPLIANT, MO-187BA, MSOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | RM-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | NONVOLATILE MEMORY | |
| Bandwidth-Nom | 1 kHz | |
| Control Interface | 2-WIRE SERIAL | |
| Converter Type | DIGITAL POTENTIOMETER | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Positions | 64 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Resistance Law | LINEAR | |
| Resistance Tolerance-Max | 30% | |
| Resistor Terminal Voltage-Max | 5.5 V | |
| Resistor Terminal Voltage-Min | ||
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Coefficient-Nom | 200 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Total Resistance-Nom | 10000 Ω | |
| Width | 3 mm |
