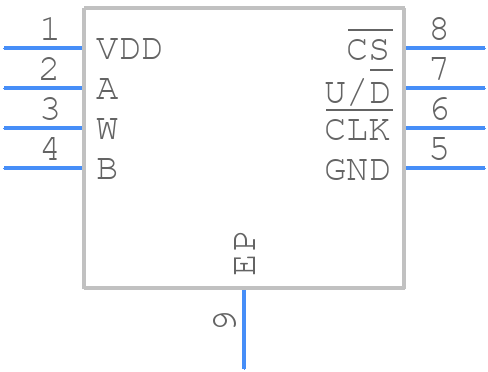

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD5115BCPZ10-500R7 by Analog Devices Inc
Results Overview of AD5115BCPZ10-500R7 by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
AD5115BCPZ10-500R7 Information
AD5115BCPZ10-500R7 by Analog Devices Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD5115BCPZ10-500R7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK6239
|
Newark | Digital Potentiometer, Single, 32 Step, End To End Resistance:10Kohm, No. Of Pots:Single, Control Interface:Up/Down, Track Taper:Linear, Resistance Tolerance:± 8%, Supply Voltage Min:2.3V, Supply Voltage Max:5.5V, No. Of Pins:8Pins Rohs Compliant: Yes |Analog Devices AD5115BCPZ10-500R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 490 |
|
$1.6100 / $2.7300 | Buy Now |
|
DISTI #
AD5115BCPZ10-500R7CT-ND
|
DigiKey | IC DGTL POT 10KOHM 32TAP 8LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1380 In Stock |
|
$0.9250 / $3.1300 | Buy Now |
|
DISTI #
584-A5115BCPZ10500R7
|
Mouser Electronics | Digital Potentiometer ICs Single Channel, 32-Position, Up/Down, 8 Resistor Tolerance, Nonvolatile Digital Potentiometer RoHS: Compliant | 2998 |
|
$0.9580 / $2.0100 | Buy Now |
|
|
Analog Devices Inc | 32tap,Single Chan DigiPOT, NVM Package Multiple: 500 | 7776 |
|
$0.9250 / $3.1300 | Buy Now |
|
DISTI #
26633486
|
Verical | Digital Potentiometer 10kOhm 32POS Non-Volatile 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 7500 |
|
$0.9308 | Buy Now |
|
DISTI #
AD5115BCPZ10-5R
|
Richardson RFPD | DIGITAL POTENTIOMETER RoHS: Compliant Min Qty: 500 | 0 |
|
$0.9700 / $0.9800 | Buy Now |
|
|
Cytech Systems Limited | IC DGTL POT 10KOHM 32TAP 8LFCSP | 500 |
|
RFQ | |
|
|
Vyrian | Converters | 4526 |
|
RFQ | |
|
|
Win Source Electronics | IC DGTL POT 32POS 10K 8LFCSP | 526 |
|
$2.8095 / $4.2141 | Buy Now |
Part Details for AD5115BCPZ10-500R7
AD5115BCPZ10-500R7 CAD Models
AD5115BCPZ10-500R7 Part Data Attributes
|
|
AD5115BCPZ10-500R7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD5115BCPZ10-500R7
Analog Devices Inc
Single Channel, 32-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | 2 X 2 MM, 0.55 MM HEIGHT, ROHS COMPLIANT, LFCSP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | CP-8-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Bandwidth-Nom | 2 kHz | |
| Control Interface | INCREMENT/DECREMENT | |
| Converter Type | DIGITAL POTENTIOMETER | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Positions | 32 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.08,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Resistance Law | LINEAR | |
| Resistance Tolerance-Max | 8% | |
| Resistor Terminal Voltage-Max | 5.5 V | |
| Resistor Terminal Voltage-Min | ||
| Seated Height-Max | 0.65 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Coefficient-Nom | 35 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Total Resistance-Nom | 10000 Ω | |
| Width | 2 mm |
