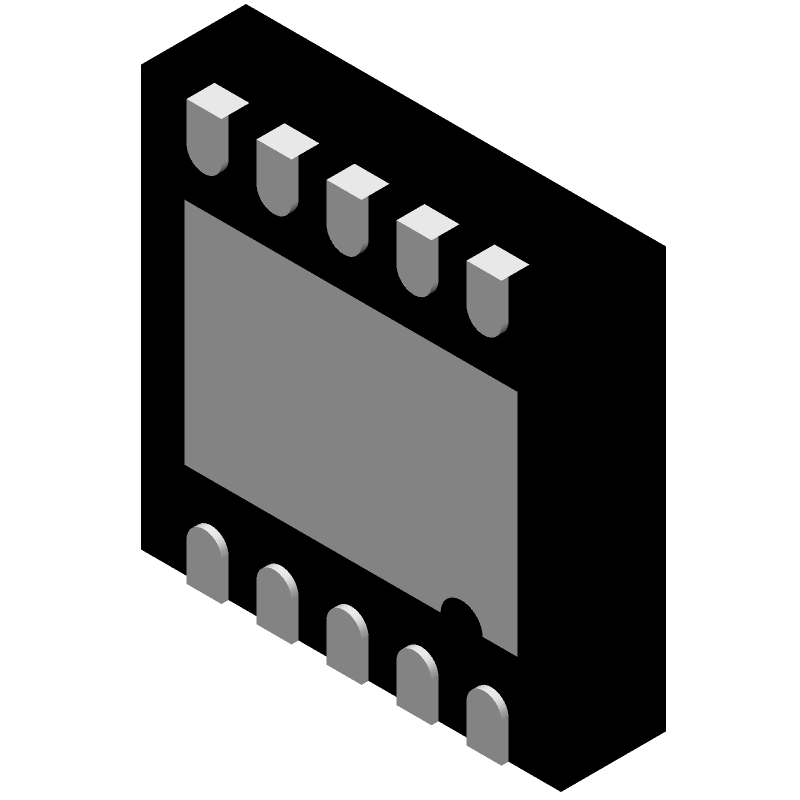

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD4003BCPZ-RL7 by Analog Devices Inc
Results Overview of AD4003BCPZ-RL7 by Analog Devices Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
AD4003BCPZ-RL7 Information
AD4003BCPZ-RL7 by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD4003BCPZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-AD4003BCPZ-RL7CT-ND
|
DigiKey | IC ADC 18BIT SAR 10LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
288 In Stock |
|
$20.5250 / $30.7900 | Buy Now |
|
DISTI #
584-AD4003BCPZ-RL7
|
Mouser Electronics | Analog to Digital Converters - ADC 18-Bit, 2 MSPS/1 MSPS/500 kSPS, Easy Drive, Differential SAR ADCs RoHS: Compliant | 360 |
|
$20.3100 / $29.6000 | Buy Now |
|
DISTI #
V72:2272_16661913
|
Arrow Electronics | 1-Channel Single ADC SAR 2Msps 18-bit Serial 10-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2412 Container: Cut Strips | Americas - 1372 |
|
$28.0800 / $29.7200 | Buy Now |
|
|
Analog Devices Inc | 18-Bit, 2 MSPS, Diff, PulSAR® Min Qty: 1 Package Multiple: 1500 | 58 |
|
$15.5400 / $30.7900 | Buy Now |
|
|
Rochester Electronics | 18-Bit, 2 MSPS, Diff, PulSAR ADC RoHS: Compliant Status: Active Min Qty: 1 | 207 |
|
$17.2900 / $21.6100 | Buy Now |
|
DISTI #
AD4003BCPZ-RL7
|
TME | IC: A/D converter, Ch: 1, 18bit, 2Msps, LFCSP10, Max INL: ±1LSB Min Qty: 1500 | 0 |
|
$28.7000 | RFQ |
|
DISTI #
AD4003BCPZ-RL7
|
Richardson RFPD | CONVERTER - ADC RoHS: Compliant Min Qty: 1500 | 0 |
|
$21.4700 | Buy Now |
Part Details for AD4003BCPZ-RL7
AD4003BCPZ-RL7 CAD Models
AD4003BCPZ-RL7 Part Data Attributes
|
|
AD4003BCPZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD4003BCPZ-RL7
Analog Devices Inc
18-Bit, 2 MSPS, Easy Drive, Differential SAR ADC
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Pin Count | 10 | |
| Manufacturer Package Code | CP-10-9 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 5 V | |
| Analog Input Voltage-Min | -5 V | |
| Conversion Time-Max | 320 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Linearity Error-Max (EL) | 3.8% | |
| Moisture Sensitivity Level | 3 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 18 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Sample Rate | 2 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
AD4003BCPZ-RL7 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital traces separate, and use a common mode filter to reduce noise.
-
Use a thermocouple or RTD sensor with a high accuracy calibration, and ensure good thermal contact between the sensor and the device under test. Also, use a low-noise, low-impedance signal path to minimize errors.
-
The maximum sampling rate is 1 MSPS. Higher sampling rates can increase the noise floor, so it's essential to filter the input signal and use a suitable anti-aliasing filter to minimize aliasing effects.
-
Use the power-down mode when not in use, and optimize the clock frequency and sampling rate for your application. Also, consider using a low-power mode for the ADC and a low-dropout regulator for the power supply.
-
The recommended input signal range is 0 to 4.096V. Signals outside this range can result in reduced accuracy and increased nonlinearity. Use an input buffer or amplifier to condition the signal if necessary.
