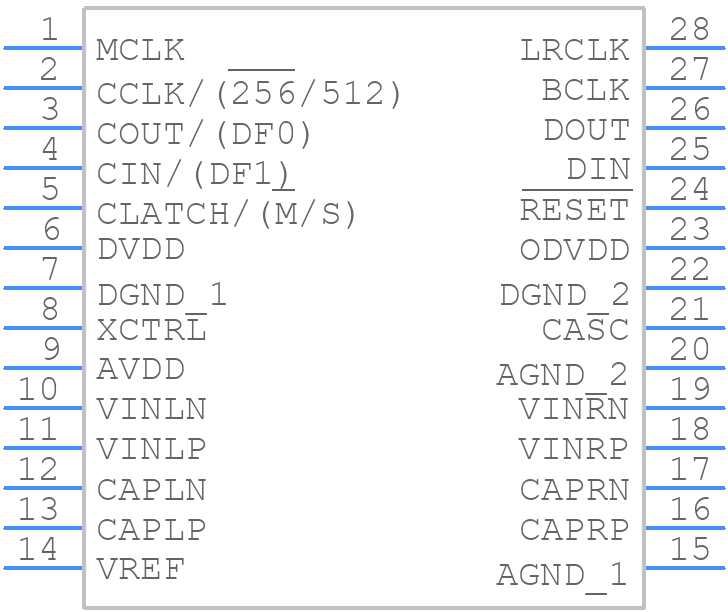

Part Symbol
-

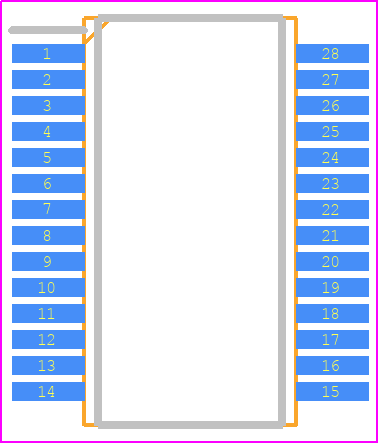

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD1871YRS by Analog Devices Inc
Results Overview of AD1871YRS by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Automotive
AD1871YRS Information
AD1871YRS by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for AD1871YRS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 1 | 100 |
|
$15.9228 / $18.0000 | Buy Now |
|
|
Bristol Electronics | 15 |
|
RFQ | ||
|
|
Quest Components | 2-CH 24-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO28 | 80 |
|
$18.0000 / $19.5000 | Buy Now |
|
|
ComSIT USA | STEREO AUDIO, 24-BIT, 96 KHZ, MULTIBIT SIGMA DELTA ADC ADC, Delta-Sigma, 24-Bit, 1 Func, 2 Channel, Serial Access, CMOS, PDSO28 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
|
Vyrian | Peripheral ICs | 1619 |
|
RFQ |
Part Details for AD1871YRS
AD1871YRS CAD Models
AD1871YRS Part Data Attributes
|
|
AD1871YRS
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD1871YRS
Analog Devices Inc
IC 2-CH 24-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO28, SSOP-28, Analog to Digital Converter
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Input Voltage-Max | 2.828 V | |
| Analog Input Voltage-Min | -2.828 V | |
| Converter Type | ADC, DELTA-SIGMA | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e0 | |
| Length | 10.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 2 | |
| Number of Bits | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.096 MHz | |
| Sample and Hold / Track and Hold | TRACK | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 5.3 mm |
Alternate Parts for AD1871YRS
This table gives cross-reference parts and alternative options found for AD1871YRS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD1871YRS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD1871YRSZ | Analog Devices Inc | Check for Price | Stereo Audio, 24-bit, 96kHz, Multi-bit Sigma Delta ADC | AD1871YRS vs AD1871YRSZ |
| AD1871YRSZ-REEL | Analog Devices Inc | Check for Price | Stereo Audio, 24-bit, 96kHz, Multi-bit Sigma Delta ADC | AD1871YRS vs AD1871YRSZ-REEL |
| AD1871YRS-REEL | Analog Devices Inc | Check for Price | IC 2-CH 24-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO28, SSOP-28, Analog to Digital Converter | AD1871YRS vs AD1871YRS-REEL |
AD1871YRS Frequently Asked Questions (FAQ)
-
The AD1871YRS is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections.
-
To optimize the performance of the AD1871YRS in a noisy environment, it is recommended to use proper shielding, grounding, and decoupling techniques. Additionally, consider using a low-pass filter or a band-pass filter to reject out-of-band noise, and ensure that the analog input signals are properly filtered and conditioned before being applied to the ADC.
-
The maximum clock frequency that can be used with the AD1871YRS is 65 MSPS. However, the actual clock frequency used may be limited by the specific application and the performance requirements. It is recommended to consult the datasheet and the application notes for more information on clock frequency selection and optimization.
-
The AD1871YRS has an on-chip calibration circuit that can be used to calibrate the ADC for optimal performance. The calibration process involves applying a known input signal to the ADC and adjusting the internal calibration registers to minimize errors. The datasheet provides more information on the calibration process and the recommended calibration procedures.
-
The power consumption of the AD1871YRS depends on the clock frequency, the sampling rate, and the operating conditions. The typical power consumption is around 350 mW at 65 MSPS. To minimize power consumption, consider using a lower clock frequency, reducing the sampling rate, or using power-down modes when the ADC is not in use.
