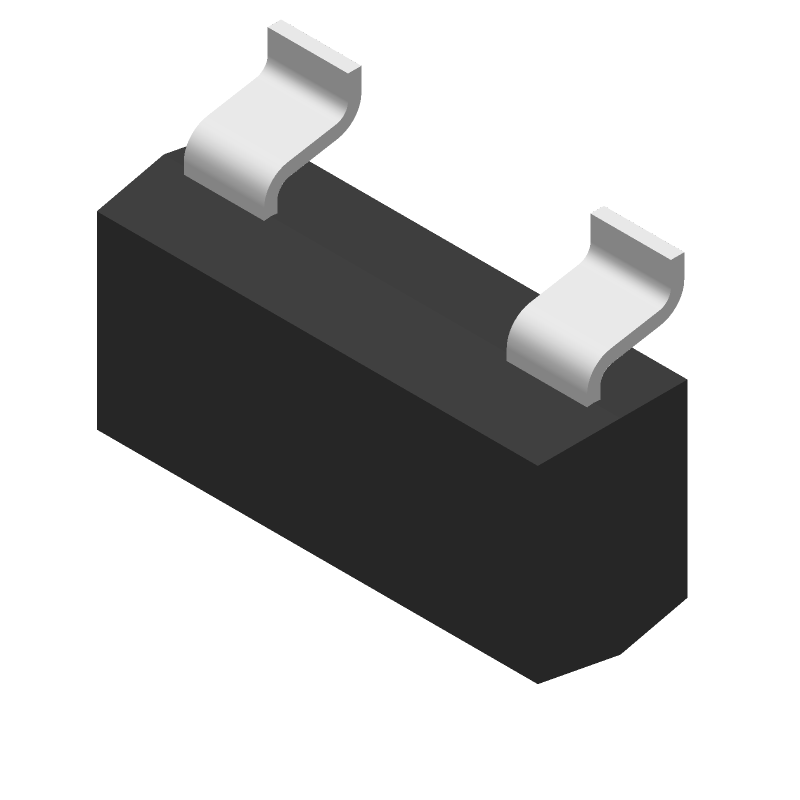

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD1580ARTZ-REEL7 by Analog Devices Inc
Results Overview of AD1580ARTZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Agriculture Technology
Medical Imaging
Renewable Energy
Telecommunications
Automotive
AD1580ARTZ-REEL7 Information
AD1580ARTZ-REEL7 by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AD1580ARTZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AK3488
|
Newark | Volt Ref, Sot-23-3, -40 To 85Deg C, Voltage Reference Type:Shunt - Fixed, Product Range:Ad1580 Series, Reference Voltage Min:1.215V, Reference Voltage Max:1.235V, Initial Accuracy:10Mv, Temperature Coefficient:± 100Ppm/°C Rohs Compliant: Yes |Analog Devices AD1580ARTZ-REEL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3602 |
|
$0.9080 / $1.2400 | Buy Now |
|
DISTI #
AD1580ARTZ-REEL7CT-ND
|
DigiKey | IC VREF SHUNT 0.82% SOT23-3 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2195 In Stock |
|
$0.8250 / $2.8900 | Buy Now |
|
DISTI #
584-AD1580ARTZ-R7
|
Mouser Electronics | Voltage References IC, 1.2V MICROPOWER REF RoHS: Compliant | 3816 |
|
$0.8590 / $1.8200 | Buy Now |
|
DISTI #
V72:2272_06208032
|
Arrow Electronics | V-Ref Precision 1.225V 10mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2346 Container: Cut Strips | Americas - 58 |
|
$0.8859 / $1.2269 | Buy Now |
|
|
Analog Devices Inc | IC, 1.2V MICROPOWER REF Min Qty: 3000 Package Multiple: 3000 | 9000 |
|
$0.8250 / $2.8900 | Buy Now |
|
DISTI #
76475477
|
Verical | V-Ref Precision 1.225V 10mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2346 | Americas - 58 |
|
$0.8859 / $1.2269 | Buy Now |
|
|
Bristol Electronics | 3058 |
|
RFQ | ||
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
DISTI #
AD1580ARTZ-R7
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 3000 | 0 |
|
$0.8600 / $0.8900 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 2189 |
|
$1.2500 / $1.9200 | Buy Now |
Part Details for AD1580ARTZ-REEL7
AD1580ARTZ-REEL7 CAD Models
AD1580ARTZ-REEL7 Part Data Attributes
|
|
AD1580ARTZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD1580ARTZ-REEL7
Analog Devices Inc
1.2 V Micropower, Precision Shunt Voltage Reference
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOT-23 | |
| Package Description | LEAD FREE, TO-236AB, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | RT-3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 1.235 V | |
| Output Voltage-Min | 1.215 V | |
| Output Voltage-Nom | 1.225 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 100 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Trim/Adjustable Output | NO | |
| Voltage Tolerance-Max | 0.8% | |
| Width | 1.3 mm |
Alternate Parts for AD1580ARTZ-REEL7
This table gives cross-reference parts and alternative options found for AD1580ARTZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD1580ARTZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AD1580ARTZ-REEL7 | Rochester Electronics LLC | Check for Price | Two Terminal Voltage Reference, | AD1580ARTZ-REEL7 vs AD1580ARTZ-REEL7 |
AD1580ARTZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD1580 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure the output capacitor is properly sized and placed close to the device. Also, ensure the input and output traces are well-decoupled, and the device is operated within its recommended operating conditions.
-
The maximum output current of the AD1580 is 10mA. Exceeding this limit may cause the device to overheat or malfunction.
-
The AD1580 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink if operating in high-temperature environments.
-
To troubleshoot issues with the AD1580, start by verifying the power supply voltage, input voltage, and output voltage. Check for proper PCB layout, decoupling, and grounding. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance.
