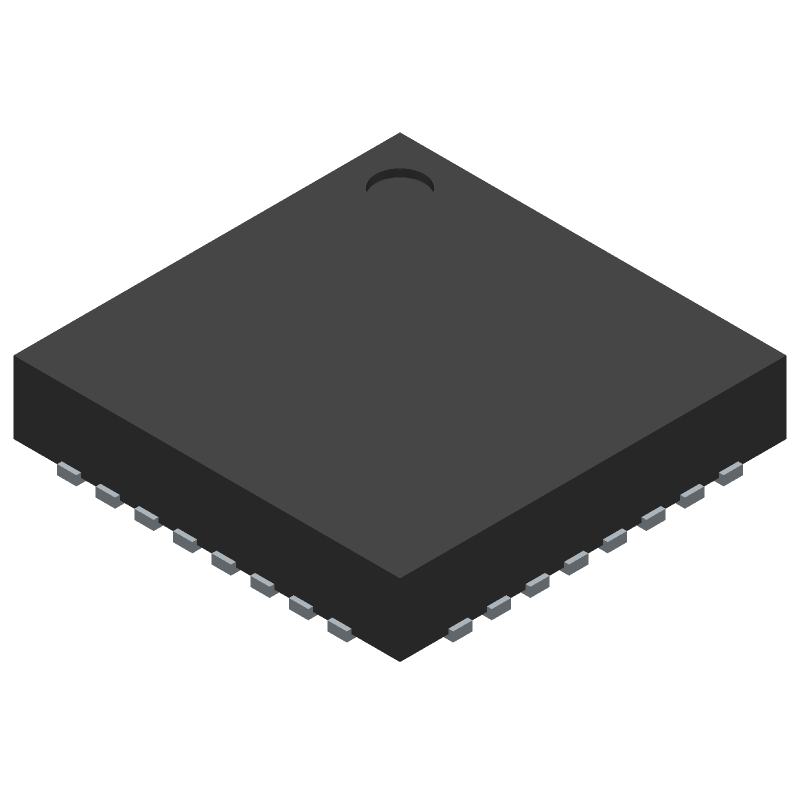

Power Supply Management Circuit, Adjustable, 7 Channel, 2.45V, TQFN44-32
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACT8865QI405-T by Qorvo is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
2312-ACT8865QI405-TCT-ND
|
DigiKey | IC REG BUCK LDO 32TQFN Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2676 In Stock |
|
$2.3625 / $4.1000 | Buy Now |
DISTI #
ACT8865QI405-T
|
Avnet Americas | Step Down Converter with LDO Regulator 7-OUT 32-Pin TQFN T/R - Tape and Reel (Alt: ACT8865QI405-T) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$2.2680 / $2.3152 | Buy Now |
DISTI #
107-ACT8865QI405-T
|
Mouser Electronics | Power Management Specialized - PMIC Atmel PMIC 3 Buck, 4 LDO RoHS: Compliant | 7842 |
|
$2.3700 / $4.1000 | Buy Now |
DISTI #
ACT8865QI405-T
|
Avnet Silica | Step Down Converter with LDO Regulator 7OUT 32Pin TQFN TR (Alt: ACT8865QI405-T) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
ACT8865QI405-T
Qorvo
Buy Now
Datasheet
|
Compare Parts:
ACT8865QI405-T
Qorvo
Power Supply Management Circuit, Adjustable, 7 Channel, 2.45V, TQFN44-32
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | QORVO INC | |
Package Description | TQFN-32 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Factory Lead Time | 20 Weeks | |
Date Of Intro | 2019-09-09 | |
Samacsys Manufacturer | Qorvo | |
Adjustable Threshold | YES | |
Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
JESD-30 Code | S-XQCC-N32 | |
Length | 4 mm | |
Number of Channels | 7 | |
Number of Functions | 1 | |
Number of Terminals | 32 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | UNSPECIFIED | |
Package Code | HVQCCN | |
Package Equivalence Code | LCC32,.16SQ,16 | |
Package Shape | SQUARE | |
Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
Seated Height-Max | 0.8 mm | |
Supply Current-Max (Isup) | 7 mA | |
Supply Voltage-Max (Vsup) | 5.5 V | |
Supply Voltage-Min (Vsup) | 2.5 V | |
Supply Voltage-Nom (Vsup) | 3.6 V | |
Surface Mount | YES | |
Temperature Grade | INDUSTRIAL | |
Terminal Form | NO LEAD | |
Terminal Pitch | 0.4 mm | |
Terminal Position | QUAD | |
Threshold Voltage-Nom | +2.45V | |
Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
Width | 4 mm |
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
Ensure that the output capacitor is properly sized and placed close to the IC. Also, make sure the input voltage is within the recommended range, and the input capacitor is properly sized and placed.
The maximum ambient temperature for the ACT8865QI405-T is 85°C. However, it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
Yes, the ACT8865QI405-T is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the PCB.
Use an oscilloscope to check the input and output waveforms, and verify that the input voltage is within the recommended range. Also, check for proper PCB layout, component placement, and soldering quality.
