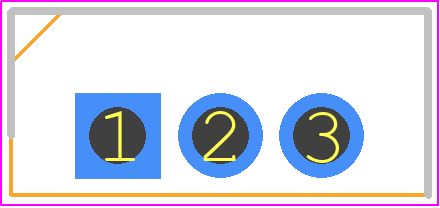

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACST1035-7FP by STMicroelectronics
Results Overview of ACST1035-7FP by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Smart Cities
Motor control systems
ACST1035-7FP Information
ACST1035-7FP by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ACST1035-7FP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-10867-5-ND
|
DigiKey | TRIAC 700V 10A TO220FPAB Min Qty: 1 Lead time: 25 Weeks Container: Tube |
22 In Stock |
|
$1.9600 | Buy Now |
|
|
STMicroelectronics | Overvoltage protected AC switch COO: China RoHS: Compliant Min Qty: 1 | 1914 |
|
$0.7700 / $1.4900 | Buy Now |
|
|
Bristol Electronics | 540 |
|
RFQ | ||
|
|
Quest Components | 432 |
|
$1.8678 / $3.0288 | Buy Now | |
|
DISTI #
ACST1035-7FP
|
Avnet Silica | Thyristor TRIAC 700V 105A 3Pin3Tab TO220FPAB Tube (Alt: ACST1035-7FP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ACST1035-7FP
ACST1035-7FP CAD Models
ACST1035-7FP Part Data Attributes
|
|
ACST1035-7FP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ACST1035-7FP
STMicroelectronics
Overvoltage protected AC switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220FP | |
| Package Description | TO-220FPAB, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-XSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
