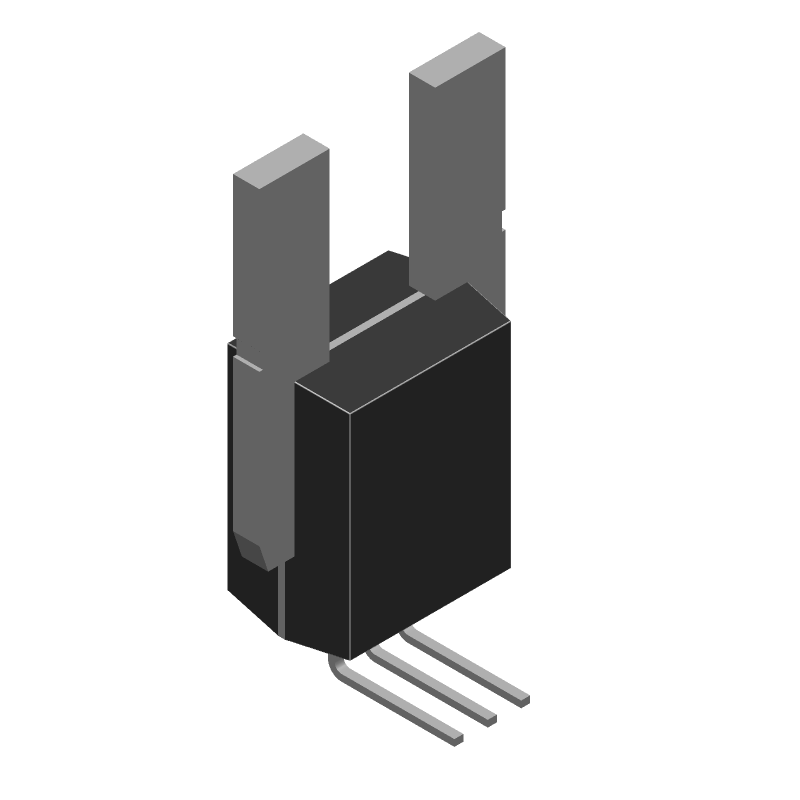

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS770ECB-200U-PSF-T by Allegro MicroSystems LLC
Results Overview of ACS770ECB-200U-PSF-T by Allegro MicroSystems LLC
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACS770ECB-200U-PSF-T Information
ACS770ECB-200U-PSF-T by Allegro MicroSystems LLC is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for ACS770ECB-200U-PSF-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
620-ACS770ECB-200U-PSF-T-ND
|
DigiKey | LINEAR CURRENT SENSOR Min Qty: 1 Lead time: 15 Weeks Container: Tube |
1606 In Stock |
|
$5.6093 / $8.1000 | Buy Now |
|
DISTI #
250-770ECB200UPSFT
|
Mouser Electronics | Board Mount Current Sensors For New Designs Use ACS772/3 RoHS: Compliant | 962 |
|
$5.6000 / $8.1000 | Buy Now |
|
|
Future Electronics | For New Designs Use ACS772/3 RoHS: Not Compliant pbFree: Yes Min Qty: 34 Package Multiple: 34 Lead time: 15 Weeks Container: Tube | 34Tube |
|
$4.8300 / $5.0700 | Buy Now |
|
|
Future Electronics | For New Designs Use ACS772/3 Min Qty: 34 Package Multiple: 34 |
34 null |
|
$4.8300 / $5.0700 | Buy Now |
|
DISTI #
ACS770ECB-200U-PSF-T
|
Avnet Silica | LINEAR CURRENT SENSOR (Alt: ACS770ECB-200U-PSF-T) RoHS: Compliant Min Qty: 1632 Package Multiple: 1632 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 34 | 68 |
|
$7.8000 / $8.4500 | Buy Now |
Part Details for ACS770ECB-200U-PSF-T
ACS770ECB-200U-PSF-T CAD Models
ACS770ECB-200U-PSF-T Part Data Attributes
|
|
ACS770ECB-200U-PSF-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
ACS770ECB-200U-PSF-T
Allegro MicroSystems LLC
Hall Effect Sensor, BICMOS, Plastic/epoxy, 5 Pin,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Body Breadth | 10 mm | |
| Body Height | 7 mm | |
| Body Length or Diameter | 13 mm | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 5 | |
| Operating Current-Max | 15 mA | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Circuit Type | SINGLE-ENDED | |
| Output Type | ANALOG VOLTAGE | |
| Package Equivalence Code | MODULE,5LEAD,1.1 | |
| Package Shape/Style | RECTANGULAR | |
| Screening Level | AEC-Q100 | |
| Sensors/Transducers Type | CURRENT SENSOR | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Surface Mount | NO | |
| Technology | BICMOS | |
| Terminal Finish | MATTE TIN |
ACS770ECB-200U-PSF-T Frequently Asked Questions (FAQ)
-
Allegro provides a recommended PCB layout in their application note AN295047, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
-
Calibration involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN295047, which includes steps for adjusting the offset and gain using external resistors.
-
The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
The ACS770ECB-200U-PSF-T is rated for operation up to 150°C, but the accuracy and linearity of the device may degrade at high temperatures. Allegro provides thermal derating curves in the datasheet to help designers estimate the device's performance at elevated temperatures.
-
Allegro recommends using proper PCB layout techniques, such as separating analog and digital traces, using ground planes, and adding EMI filters to reduce electromagnetic interference. Additionally, shielding the device and using a common-mode choke can help reduce EMI susceptibility.
