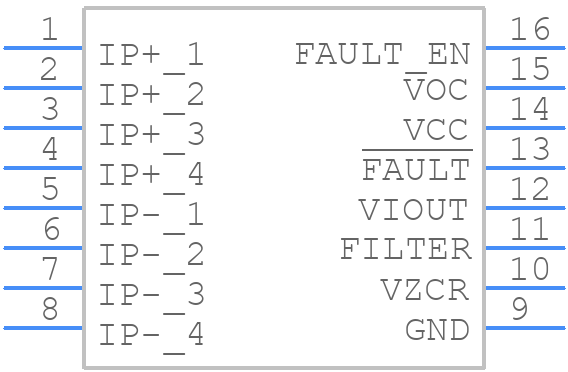

Part Symbol
-
Footprint
-

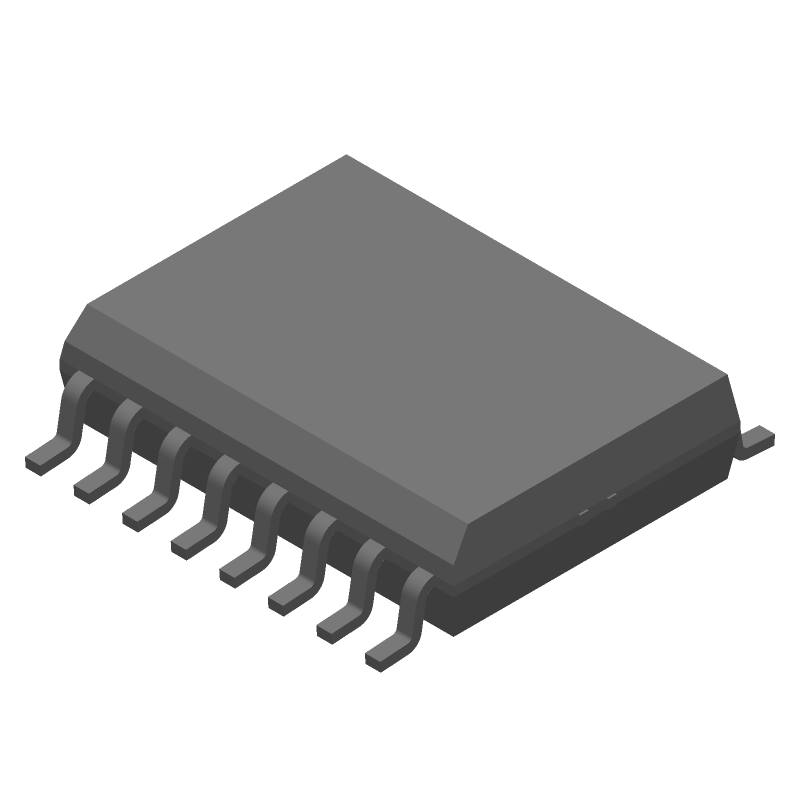

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS716KLATR-25CB-T by Allegro MicroSystems LLC
Results Overview of ACS716KLATR-25CB-T by Allegro MicroSystems LLC
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACS716KLATR-25CB-T Information
ACS716KLATR-25CB-T by Allegro MicroSystems LLC is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for ACS716KLATR-25CB-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80T0024
|
Newark | Current Sensor, 9Ma, Soic-16, Sensor Case/Package:Soic, No. Of Pins:16Pins, Supply Voltage Min:3V, Supply Voltage Max:3.6V, Operating Temperature Min:-40°C, Operating Temperature Max:125°C, Product Range:-, Msl:Msl 3 - 168 Hours Rohs Compliant: Yes |Allegro Microsystems ACS716KLATR-25CB-T RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
620-1444-1-ND
|
DigiKey | SENSOR CURRENT HALL 25A AC/DC Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6382 In Stock |
|
$2.6125 / $4.6000 | Buy Now |
|
DISTI #
250-716KLATR25CBT
|
Mouser Electronics | Board Mount Current Sensors For New Designs Use ACS720 or ACS37002 RoHS: Compliant | 5693 |
|
$2.6100 / $4.5000 | Buy Now |
|
DISTI #
E54:1762_05942836
|
Arrow Electronics | Current Sensor Current Sensor AC/DC Current 3.3V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks Date Code: 2331 | Europe - 3000 |
|
$2.5250 / $2.5400 | Buy Now |
|
DISTI #
V72:2272_06610409
|
Arrow Electronics | Current Sensor Current Sensor AC/DC Current 3.3V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 33 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2331 Container: Cut Strips | Americas - 1039 |
|
$2.8050 / $3.0420 | Buy Now |
|
DISTI #
84913677
|
Verical | Current Sensor Current Sensor AC/DC Current 3.3V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2331 | Americas - 3000 |
|
$2.5250 / $2.5400 | Buy Now |
|
DISTI #
85960890
|
Verical | Current Sensor Current Sensor AC/DC Current 3.3V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 115 Package Multiple: 1 Date Code: 2301 | Americas - 653 |
|
$2.7500 / $3.2625 | Buy Now |
|
|
Rochester Electronics | ACS716 - Hi Bandwidth, Fast Fault Response Current Sensor RoHS: Compliant Status: Active Min Qty: 1 | 653 |
|
$2.2000 / $2.7500 | Buy Now |
|
DISTI #
ACS716KLATR-25CB-T
|
Maritex | Current Sensor IC, unidirectional, Vcc = 3.3 V, range 12.5 - 25 A, Vrms = 3000 V, band width 120 kHz, temperature range: K Min Qty: 1 Package Multiple: 1 | 12 |
|
$3.9810 / $4.9860 | Buy Now |
Part Details for ACS716KLATR-25CB-T
ACS716KLATR-25CB-T CAD Models
ACS716KLATR-25CB-T Part Data Attributes
|
|
ACS716KLATR-25CB-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
ACS716KLATR-25CB-T
Allegro MicroSystems LLC
Hall Effect Sensor, Rectangular, Surface Mount, SOIC-16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Package Description | SOIC-16 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Additional Feature | IT HAS A SENSITIVITY OF 18.6 MV/A | |
| Body Breadth | 7.5 mm | |
| Body Height | 2.65 mm | |
| Body Length or Diameter | 10.3 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Linearity (%) | 0.75 % | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 16 | |
| Operating Current-Max | 11 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | ANALOG VOLTAGE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | MAGNETIC FIELD SENSOR,HALL EFFECT | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Terminal Finish | MATTE TIN | |
| Termination Type | SOLDER |
