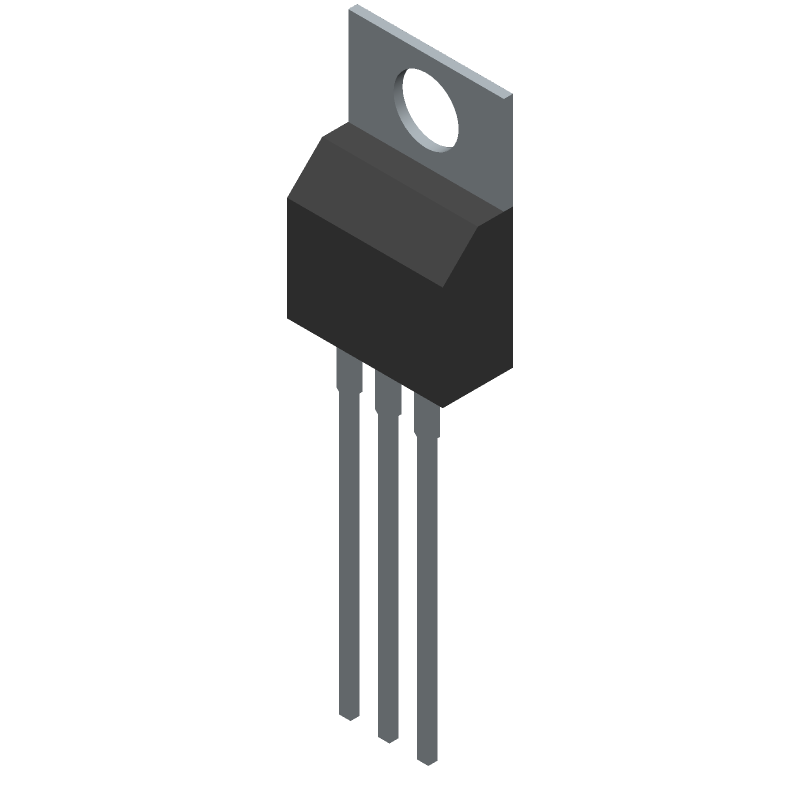

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS120-7ST by STMicroelectronics
Results Overview of ACS120-7ST by STMicroelectronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ACS120-7ST Information
ACS120-7ST by STMicroelectronics is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for ACS120-7ST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1295341
|
Farnell | SWITCH, AC, 2A, TO-220AB RoHS: Compliant Min Qty: 1 Lead time: 39 Weeks, 1 Days Container: Each | 488 |
|
$0.8594 / $1.5965 | Buy Now |
|
DISTI #
497-ACS120-7ST-ND
|
DigiKey | TRIAC SENS GATE 700V 2A TO220 Min Qty: 1 Lead time: 45 Weeks Container: Tube |
1936 In Stock |
|
$0.6673 / $2.1100 | Buy Now |
|
|
STMicroelectronics | Overvoltage protected AC switch RoHS: Compliant Min Qty: 1 | 2011 |
|
$0.6500 / $1.4800 | Buy Now |
|
DISTI #
85963896
|
Verical | TRIAC 700V 2A(RMS) 21A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 335 Package Multiple: 1 | Americas - 2000 |
|
$0.9305 / $1.1211 | Buy Now |
|
|
Bristol Electronics | 1200 |
|
RFQ | ||
|
|
Quest Components | 960 |
|
$0.8729 / $2.4940 | Buy Now | |
|
|
Rochester Electronics | ACS120 - ACSwitch ASD TRIAC Logic Level G RoHS: Compliant Status: Active Min Qty: 1 | 2000 |
|
$0.5561 / $0.8969 | Buy Now |
|
DISTI #
ACS120-7ST
|
Avnet Silica | AC Line Switch 3Pin3Tab TO220AB Tube (Alt: ACS120-7ST) RoHS: Compliant Min Qty: 2000 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 250 |
|
Buy Now | |
|
DISTI #
ACS120-7ST
|
EBV Elektronik | AC Line Switch 3Pin3Tab TO220AB Tube (Alt: ACS120-7ST) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 50 |
|
Buy Now | |
|
|
LCSC | 45mA 10mA 700V TO-220AB Thyristors (SCR)/Modules ROHS | 210 |
|
$1.0229 / $1.6943 | Buy Now |
Part Details for ACS120-7ST
ACS120-7ST CAD Models
ACS120-7ST Part Data Attributes
|
|
ACS120-7ST
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ACS120-7ST
STMicroelectronics
Overvoltage protected AC switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Configuration | SINGLE WITH BUILT-IN TRIGGER ELEMENT IN SERIES WITH GATE | |
| DC Gate Trigger Current-Max | 10 mA | |
| DC Gate Trigger Voltage-Max | 1 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Leakage Current-Max | 0.2 mA | |
| Non-Repetitive Pk On-state Cur | 20 A | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| On-state Current-Max | 2000 A | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -30 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RMS On-state Current-Max | 2 A | |
| Repetitive Peak Off-state Voltage | 700 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Device Type | SNUBBERLESS TRIAC |
