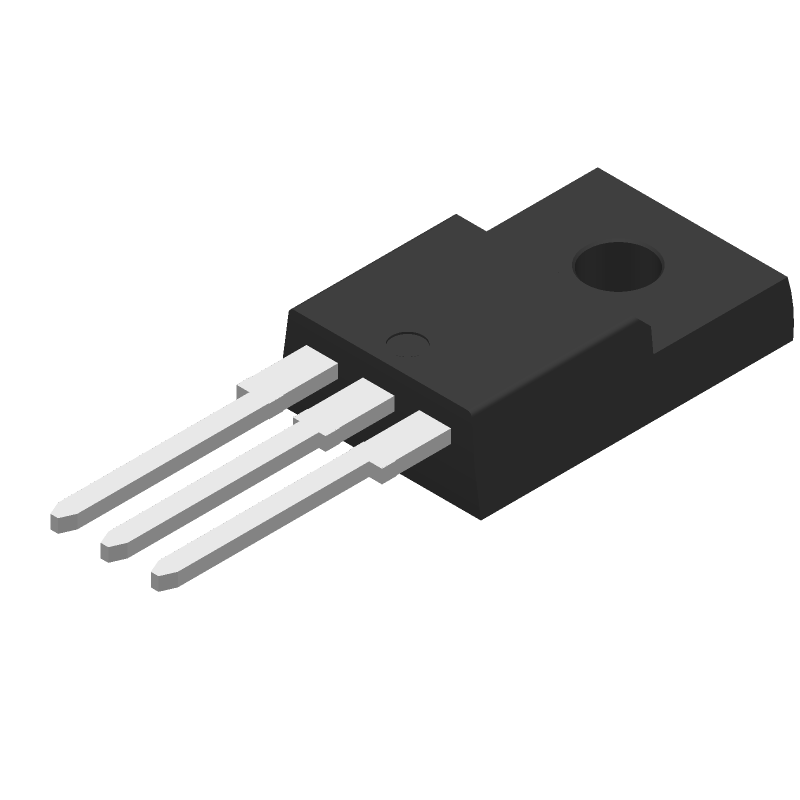

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACS120-7SFP by STMicroelectronics
Results Overview of ACS120-7SFP by STMicroelectronics
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ACS120-7SFP Information
ACS120-7SFP by STMicroelectronics is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for ACS120-7SFP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-3815-5-ND
|
DigiKey | TRIAC SENS GATE 700V 2A TO220FP Min Qty: 1 Lead time: 45 Weeks Container: Tube |
398 In Stock |
|
$0.5913 / $2.1800 | Buy Now |
|
DISTI #
V79:2366_17795749
|
Arrow Electronics | TRIAC 700V 2A(RMS) 21A 3-Pin(3+Tab) TO-220FPAB Tube Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1108 | Americas - 7507 |
|
$0.5172 | Buy Now |
|
|
STMicroelectronics | Overvoltage protected AC switch RoHS: Compliant Min Qty: 1 | 1908 |
|
$0.5600 / $0.6800 | Buy Now |
|
DISTI #
26119000
|
Verical | TRIAC 700V 2A(RMS) 21A 3-Pin(3+Tab) TO-220FPAB Tube Min Qty: 12 Package Multiple: 1 Date Code: 1108 | Americas - 7507 |
|
$0.5172 | Buy Now |
|
DISTI #
85963484
|
Verical | TRIAC 700V 2A(RMS) 21A 3-Pin(3+Tab) TO-220FPAB Tube Min Qty: 339 Package Multiple: 1 | Americas - 1000 |
|
$0.9184 / $1.1065 | Buy Now |
|
|
Rochester Electronics | ACSwitch TO-220FP Logic Level Ga RoHS: Compliant Status: Active Min Qty: 1 | 1000 |
|
$0.5488 / $0.8852 | Buy Now |
|
DISTI #
ACS120-7SFP
|
Avnet Silica | AC Line Switch 3Pin3Tab TO220FPAB Tube (Alt: ACS120-7SFP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
ACS120-7SFP
|
EBV Elektronik | AC Line Switch 3Pin3Tab TO220FPAB Tube (Alt: ACS120-7SFP) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for ACS120-7SFP
ACS120-7SFP CAD Models
ACS120-7SFP Part Data Attributes
|
|
ACS120-7SFP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ACS120-7SFP
STMicroelectronics
Overvoltage protected AC switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | PLASTIC, TO-220FPAB, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE WITH BUILT-IN TRIGGER ELEMENT IN SERIES WITH GATE | |
| DC Gate Trigger Current-Max | 10 mA | |
| DC Gate Trigger Voltage-Max | 1 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Leakage Current-Max | 0.2 mA | |
| Non-Repetitive Pk On-state Cur | 20 A | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| On-state Current-Max | 2000 A | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -30 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RMS On-state Current-Max | 2 A | |
| Repetitive Peak Off-state Voltage | 700 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Device Type | SNUBBERLESS TRIAC |
Alternate Parts for ACS120-7SFP
This table gives cross-reference parts and alternative options found for ACS120-7SFP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ACS120-7SFP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ACS120-7SB | STMicroelectronics | $0.6201 | Overvoltage protected AC switch | ACS120-7SFP vs ACS120-7SB |
| ACS120-7SB-TR | STMicroelectronics | $0.8749 | Overvoltage protected AC switch | ACS120-7SFP vs ACS120-7SB-TR |
ACS120-7SFP Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensitive analog traces away from the digital traces and ensure a low-impedance path for the current sense lines.
-
Use a low-impedance current sense resistor (RSENSE) and ensure it is placed close to the device. Also, use a low-noise, low-impedance power supply and keep the PCB layout clean and well-decoupled.
-
The recommended operating temperature range is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
-
The output voltage of the ACS120-7SFP is a differential signal. Use a differential amplifier or a instrumentation amplifier to condition the signal and ensure a high common-mode rejection ratio (CMRR) to reject noise.
-
The maximum allowable current for the ACS120-7SFP is 120A. Exceeding this limit may damage the device or affect its accuracy.
