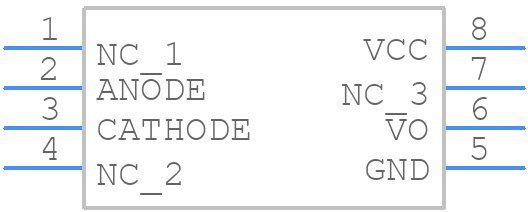

Part Symbol
-

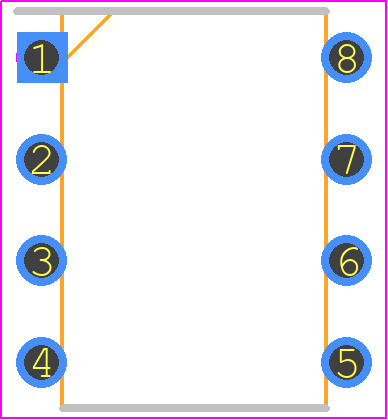

Footprint
-

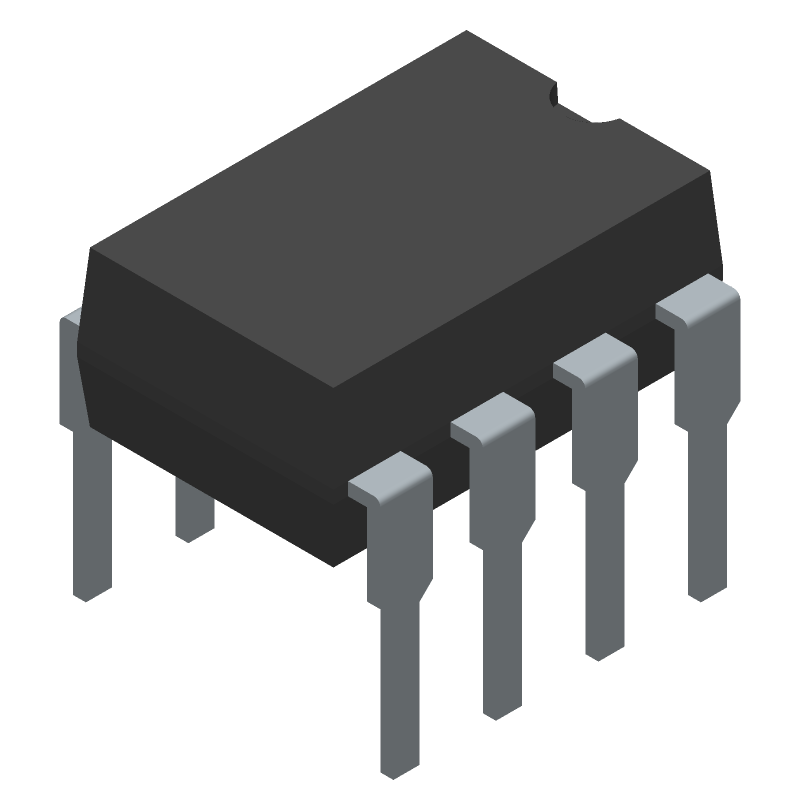

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACPL-4800-000E by Avago Technologies
Results Overview of ACPL-4800-000E by Avago Technologies
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Healthcare
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
ACPL-4800-000E Information
ACPL-4800-000E by Avago Technologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPN4800CQH | Toshiba Electronic Devices & Storage Corporation | N-ch MOSFET, 150 V, 18 A, 0.048 Ω@10 V, TSON Advance | |
| ML4800CP | Rochester Electronics LLC | ML4800 - Power Factor Controller With Post Regulator, Voltage-mode, 1A, 250kHz Switching Freq-Max, BICMOS, PDIP16 | |
| BPS8B21FLD000E9LF | Amphenol Communications Solutions | DIN IDC Cable Connector, Side-pierce, Class I, 21 Position |
Part Details for ACPL-4800-000E
ACPL-4800-000E CAD Models
ACPL-4800-000E Part Data Attributes
|
|
ACPL-4800-000E
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
ACPL-4800-000E
Avago Technologies
1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, 0.300 INCH, ROHS COMPLIANT, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | 0.300 INCH, ROHS COMPLIANT, DIP-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Samacsys Manufacturer | Avago Technologies | |
| Additional Feature | UL RECOGNIZED, VDE APPROVED | |
| Configuration | COMPLEX | |
| Forward Current-Max | 0.01 A | |
| Isolation Voltage-Max | 3750 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.025 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.21 W | |
| Response Time-Nom | 3.5e-7 ns | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 20 V | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN |
ACPL-4800-000E Frequently Asked Questions (FAQ)
-
Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line for the output stage to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range (−40°C to 100°C).
-
The maximum allowable voltage on the VCC pin of the ACPL-4800-000E is 5.5V. Exceeding this voltage can cause permanent damage to the device.
-
Yes, the ACPL-4800-000E is designed for use in galvanically isolated interfaces, providing a high degree of electrical isolation between the input and output stages, making it suitable for applications requiring electrical isolation.
-
The typical propagation delay of the ACPL-4800-000E is around 10 ns, which is relatively low compared to other optocouplers, making it suitable for high-speed applications.
