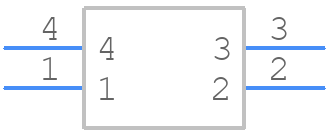

Part Symbol
-
Footprint
-

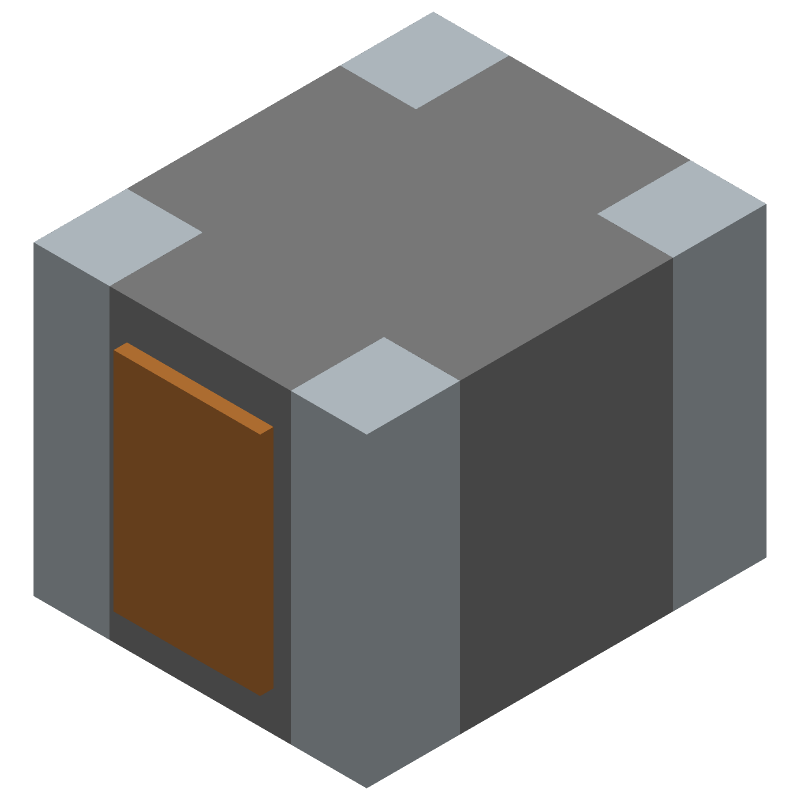

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACM3225-601-2P-T by TDK Corporation
Results Overview of ACM3225-601-2P-T by TDK Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACM3225-601-2P-T Information
ACM3225-601-2P-T by TDK Corporation is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for ACM3225-601-2P-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18J1788
|
Newark | Choke, Common Mode, 1A, 600 Ohm, 1210, Dc Current Rating:1A, Inductance:-, Product Range:Acm Series, Impedance:600Ohm, Inductor Case/Package:1210 [3225 Metric], Product Length:3.2Mm, Product Width:2.5Mm, Product Height:2.3Mm Rohs Compliant: Yes |Tdk ACM3225-601-2P-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now |
Part Details for ACM3225-601-2P-T
ACM3225-601-2P-T CAD Models
ACM3225-601-2P-T Part Data Attributes
|
|
ACM3225-601-2P-T
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
ACM3225-601-2P-T
TDK Corporation
Data Line Filter, 2 Function(s), 50V, 1A, ROHS COMPLIANT, SMD, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | TDK | |
| DC Resistance-Max | 0.2 Ω | |
| Filter Type | DATA LINE FILTER | |
| Height | 2.3 mm | |
| Insulation Resistance-Min | 10 MΩ | |
| JESD-609 Code | e2 | |
| Length | 3.2 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Impedance | 600 OHM Ω | |
| Packing Method | TAPE AND REEL | |
| Rated Current | 1 A | |
| Rated Voltage | 50 V | |
| Terminal Finish | Copper/Nickel/Tin (Cu/Ni/Sn) | |
| Width | 2.5 mm |
