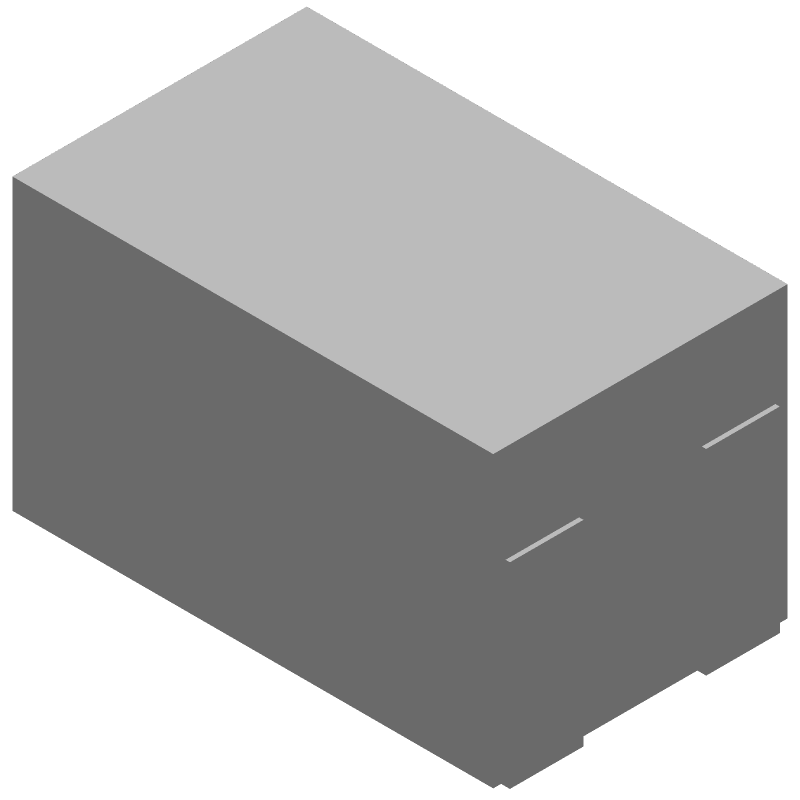

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ACM2012E-900-2P-T00 by TDK Corporation
Results Overview of ACM2012E-900-2P-T00 by TDK Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ACM2012E-900-2P-T00 Information
ACM2012E-900-2P-T00 by TDK Corporation is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for ACM2012E-900-2P-T00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39Y2567
|
Newark | 2Mm X 1.2Mm X 1Mm, -40 To +85 Degc, 90 , 0.33A/Tape And Reel Rohs Compliant: Yes |Tdk ACM2012E-900-2P-T00 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
47Y9690
|
Newark | Common Mode Filter, 90 Ohm, 0.33A, Dc Current Rating:330Ma, Inductance:-, Product Range:Acm-E Series, Impedance:90Ohm, Inductor Case/Package:0805 [2012 Metric], Product Length:2Mm, Product Width:1.2Mm, Product Height:1Mm Rohs Compliant: Yes |Tdk ACM2012E-900-2P-T00 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
Buy Now | |
|
|
Quest Components | DATA LINE FILTER, 2 FUNCTION(S), 50V, 0.33A, 2 PIN(S) | 5831 |
|
$0.4320 / $1.4400 | Buy Now |
|
DISTI #
ACM2012E-900-2P-T00
|
Avnet Abacus | Choke Common Mode 90 Ohm 180 nH 330 mA 2mm x 12mm x 1mm (Alt: ACM2012E-900-2P-T00) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | CMC 330MA 2LN 90 OHM SMD | 6000 |
|
RFQ | |
|
|
Win Source Electronics | CMC 330MA 2LN 90 OHM SMD | 214575 |
|
$0.0439 / $0.0658 | Buy Now |
Part Details for ACM2012E-900-2P-T00
ACM2012E-900-2P-T00 CAD Models
ACM2012E-900-2P-T00 Part Data Attributes
|
|
ACM2012E-900-2P-T00
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
ACM2012E-900-2P-T00
TDK Corporation
Data Line Filter, 2 Function(s), 50V, 0.33A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | EIA STD PACKAGE SIZE 0805, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | TDK | |
| DC Resistance-Max | 0.35 Ω | |
| Filter Type | DATA LINE FILTER | |
| Height | 1 mm | |
| Insulation Resistance-Min | 10 MΩ | |
| Length | 2 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 2 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Impedance | 90 OHM Ω | |
| Packing Method | TR, 7 INCH | |
| Rated Current | 0.33 A | |
| Rated Voltage | 50 V | |
| Width | 1.2 mm |
Alternate Parts for ACM2012E-900-2P-T00
This table gives cross-reference parts and alternative options found for ACM2012E-900-2P-T00. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ACM2012E-900-2P-T00, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ICM0805ER900M | Vishay Intertechnologies | $0.4474 | Data Line Filter, 2 Function(s), 50V, 0.33A, 4 Pin(s), ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN | ACM2012E-900-2P-T00 vs ICM0805ER900M |
| CMCC0805900MT | VENKEL LTD | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs CMCC0805900MT |
| ACM-21-181M | Abracon Corporation | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs ACM-21-181M |
| ACM-21-201M | Abracon Corporation | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs ACM-21-201M |
| ACM-21-371M | Abracon Corporation | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs ACM-21-371M |
| CMCC0805221NT | VENKEL LTD | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs CMCC0805221NT |
| KW2012TTE181 | KOA Speer Electronics Inc | Check for Price | Data Line Filter, 2 Function(s), 50V, 0.33A, | ACM2012E-900-2P-T00 vs KW2012TTE181 |
| SDCW2012-2-201TF | Sunlord | Check for Price | Data Line Filter, 2 Function(s), 50V, 0.3A, ROHS AND REACH COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN | ACM2012E-900-2P-T00 vs SDCW2012-2-201TF |
| ACM-21-361M | Abracon Corporation | Check for Price | Data Line Filter, | ACM2012E-900-2P-T00 vs ACM-21-361M |
| ACM-31-161 | Abracon Corporation | Check for Price | Data Line Filter | ACM2012E-900-2P-T00 vs ACM-31-161 |
ACM2012E-900-2P-T00 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the ACM2012E-900-2P-T00 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
-
To prevent damage, handle the ACM2012E-900-2P-T00 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or tables to prevent electrostatic discharge. Store the components in their original packaging or in a dry, ESD-protected environment.
-
The maximum operating temperature range for the ACM2012E-900-2P-T00 is -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
-
The ACM2012E-900-2P-T00 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with TDK Corporation's technical support team to discuss specific requirements and potential customization options.
-
To ensure proper soldering, follow the recommended soldering profile and temperature range specified in the datasheet. Use a soldering iron with a temperature range of 350°C to 370°C, and apply a small amount of solder paste to the pads. Avoid overheating or applying excessive force, which can damage the component.
