Resistors / Metal Glaze/Thick Film Resistors / AC1206FR-0760R4L
Datasheets
AC1206FR-0760R4L by:

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 60.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

Part Details for AC1206FR-0760R4L by YAGEO Corporation

Results Overview of AC1206FR-0760R4L by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AC1206FR-0760R4L Information

AC1206FR-0760R4L by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for AC1206FR-0760R4L

Part # Distributor Description Stock Price Buy
DISTI # 68AK3622
Newark Res, 60R4, 1%, 0.25W, Thick Film, 1206 Rohs Compliant: Yes |Yageo AC1206FR-0760R4L RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 25000
  • 5,000 $0.0080
$0.0080 Buy Now
DISTI # 82AH6603
Newark Res, 60R4, 1%, 0.25W, 1206, Thick Film Rohs Compliant: Yes |Yageo AC1206FR-0760R4L RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1808
  • 10 $0.0250
  • 25 $0.0240
  • 50 $0.0230
  • 100 $0.0220
  • 250 $0.0200
  • 500 $0.0170
  • 1,000 $0.0150
$0.0150 / $0.0250 Buy Now
DISTI # 311-60.4LJCT-ND
DigiKey RES SMD 60.4 OHM 1% 1/4W 1206 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 23145
In Stock
  • 1 $0.1000
  • 10 $0.0180
  • 100 $0.0163
  • 1,000 $0.0133
  • 5,000 $0.0067
$0.0067 / $0.1000 Buy Now
DISTI # AC1206FR-0760R4L
Avnet Americas SMD Chip Resistor, 60.4 ohm, ? 1%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose - Tape and Reel (Alt: AC1206FR-0760R4L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 28 Weeks, 0 Days Container: Reel 5000
  • 5,000 $0.0052
  • 10,000 $0.0051
  • 20,000 $0.0050
  • 30,000 $0.0050
  • 40,000 $0.0049
$0.0049 / $0.0052 Buy Now
DISTI # 603-AC1206FR-0760R4L
Mouser Electronics Thick Film Resistors - SMD 60.4Ohms 1/4W 1206 1% AEC-Q200 Standard Power Version RoHS: Compliant 8956
  • 1 $0.1000
  • 10 $0.0180
  • 100 $0.0160
  • 1,000 $0.0130
  • 5,000 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # E02:0323_03352043
Arrow Electronics Res Thick Film 1206 60.4 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Lead time: 23 Weeks Date Code: 2445 Europe - 10000
  • 5,000 $0.0051
$0.0051 Buy Now
DISTI # V72:2272_07072090
Arrow Electronics Res Thick Film 1206 60.4 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2309 Container: Cut Strips Americas - 1313
  • 1 $0.0818
  • 10 $0.0180
  • 25 $0.0178
  • 100 $0.0160
  • 250 $0.0158
  • 500 $0.0157
  • 1,000 $0.0094
$0.0094 / $0.0818 Buy Now
Future Electronics AC Series 1206 0.25 W 60.4 Ohm ±1% ±100 ppm/°C SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks Container: Reel 535000
Reel
  • 5,000 $0.0052
  • 15,000 $0.0050
  • 25,000 $0.0049
  • 50,000 $0.0048
  • 100,000 $0.0046
$0.0046 / $0.0052 Buy Now
DISTI # 87623079
Verical Res Thick Film 1206 60.4 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 5000 Date Code: 2445 Americas - 10000
  • 5,000 $0.0051
$0.0051 Buy Now
DISTI # 86991372
Verical Res Thick Film 1206 60.4 Ohm 1% 0.25W(1/4W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 5000 Package Multiple: 1 Date Code: 2401 Americas - 5000
  • 5,000 $0.0138
$0.0138 Buy Now
Bristol Electronics   5000
RFQ
DISTI # AC1206FR-0760R4L
TTI Thick Film Resistors - SMD 60.4Ohms 1/4W 1206 1% AEC-Q200 Standard Power Version pbFree: Pb-Free Min Qty: 30000 Package Multiple: 5000 Container: Reel Americas - 0
  • 30,000 $0.0055
  • 50,000 $0.0053
$0.0053 / $0.0055 Buy Now
Future Electronics AC Series 1206 0.25 W 60.4 Ohm �1% �100 ppm/�C SMT Thick Film Chip Resistor Min Qty: 5000 Package Multiple: 5000 535000
null
  • 5,000 $0.0052
  • 15,000 $0.0051
  • 25,000 $0.0050
  • 50,000 $0.0049
  • 100,000 $0.0047
$0.0047 / $0.0052 Buy Now
Future Electronics AC Series 1206 0.25 W 60.4 Ohm �1% �100 ppm/�C SMT Thick Film Chip Resistor Min Qty: 5000 Package Multiple: 5000 1170000
null
  • 5,000 $0.0042
  • 20,000 $0.0040
  • 100,000 $0.0038
  • 200,000 $0.0037
  • 625,000 $0.0035
$0.0035 / $0.0042 Buy Now
DISTI # AC1206FR-0760R4L
IBS Electronics AC1206FR-0760R4L by YAGEO is a 1206 SMT thick film chip resistor with 60.4 Ohm resistance, 0.25W power rating, 1% tolerance, and 100 ppm/C temperature coefficient, AEC-Q200 qualified. Min Qty: 5000 Package Multiple: 1 480000
  • 5,000 $0.0040
  • 15,000 $0.0038
  • 25,000 $0.0037
  • 100,000 $0.0036
  • 150,000 $0.0035
$0.0035 / $0.0040 Buy Now
DISTI # WRC52714
Rutronik AC1206 60,4R 1% 0,25W AUTOMO RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Container: Reel Stock DE - 635000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 5,000 $0.0051
  • 15,000 $0.0042
  • 25,000 $0.0040
  • 50,000 $0.0040
  • 250,000 $0.0039
$0.0039 / $0.0051 Buy Now
DISTI # AC1206FR-0760R4L
Avnet Abacus SMD Chip Resistor 604 ohm 1 250 mW 1206 3216 Metric Thick Film General Purpose - Tape and Reel (Alt: AC1206FR-0760R4L) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 325000
Buy Now
New Advantage Corporation AC Series 1206 0.25 W 60.4 Ohm �1% �100 ppm/�C SMT Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 5000 1750000
  • 20,000 $0.0088
  • 1,750,000 $0.0082
$0.0082 / $0.0088 Buy Now

Part Details for AC1206FR-0760R4L

AC1206FR-0760R4L CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

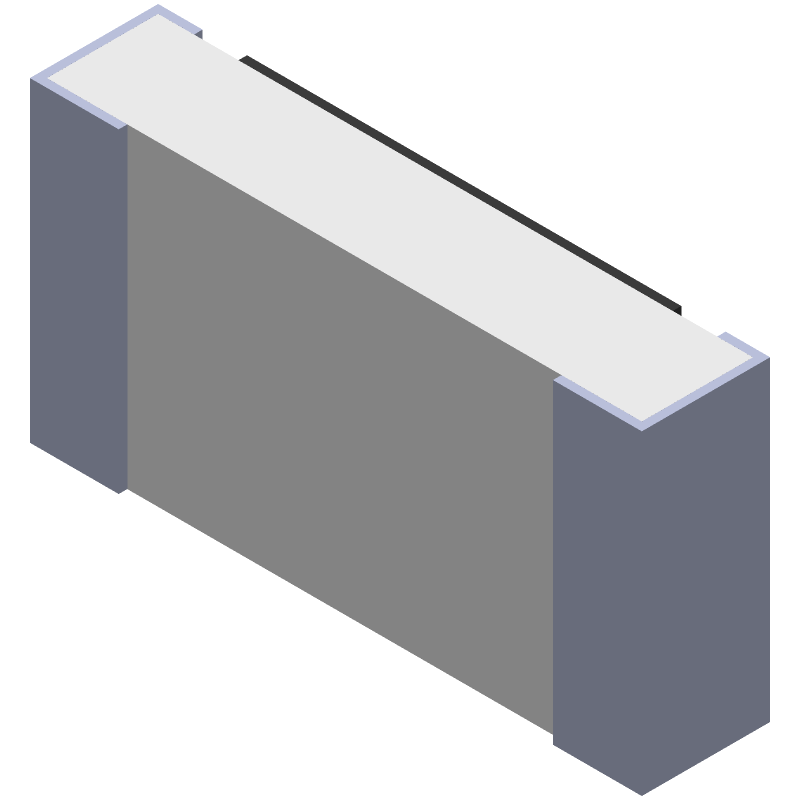

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AC1206FR-0760R4L Part Data Attributes

Parametric Data
AC1206FR-0760R4L YAGEO Corporation
Buy Now Datasheet
Compare Parts:
AC1206FR-0760R4L YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.25W, 60.4ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 28 Weeks
Samacsys Manufacturer YAGEO
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.1 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.25 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 60.4 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 200 V

AC1206FR-0760R4L Related Parts

AC1206FR-0760R4L Frequently Asked Questions (FAQ)

  • The thermal resistance of the AC1206FR-0760R4L is typically around 250°C/W, but this value can vary depending on the specific application and operating conditions.

  • Yes, the AC1206FR-0760R4L is suitable for high-frequency applications up to several hundred MHz due to its low inductance and high-frequency stability.

  • The AC1206FR-0760R4L has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without special handling or storage requirements.

  • Yes, the AC1206FR-0760R4L meets the requirements of the Automotive Electronics Council (AEC) and can be used in automotive applications, but it's essential to verify the specific requirements of the application and ensure compliance with relevant standards.

  • The recommended soldering temperature profile for the AC1206FR-0760R4L is a peak temperature of 260°C for a maximum of 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
