Resistors / Metal Glaze/Thick Film Resistors / AC0402JR-071KL
Datasheets

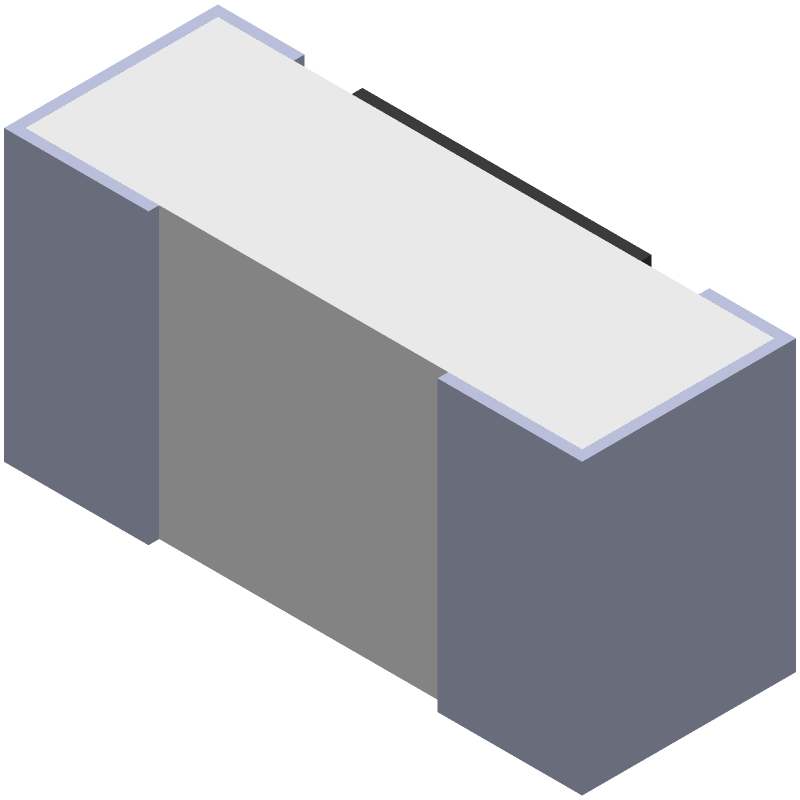

AC0402JR-071KL by: YAGEO Corporation

Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 1000ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP

Part Details for AC0402JR-071KL by YAGEO Corporation

Results Overview of AC0402JR-071KL by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

AC0402JR-071KL Information

AC0402JR-071KL by YAGEO Corporation is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for AC0402JR-071KL

Part # Distributor Description Stock Price Buy
DISTI # 68AK3430
Newark Res, 1K, 5%, 0.063W, Thick Film, 0402 Rohs Compliant: Yes |Yageo AC0402JR-071KL RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 10000
  • 10,000 $0.0020
  • 20,000 $0.0010
$0.0010 / $0.0020 Buy Now
DISTI # 49AK0455
Newark Res, 1K, 5%, 0.063W, Thick Film, 0402, Resistance:1Kohm, Resistance Tolerance:± 5%, Power Rating:63Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thick Film, Resistor Type:General Purpose, Product Range:Ac Seriesrohs Compliant: Yes |Yageo AC0402JR-071KL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 9230
  • 1 $0.0010
  • 25 $0.0010
  • 100 $0.0010
  • 250 $0.0010
  • 500 $0.0010
  • 1,000 $0.0010
$0.0010 Buy Now
DISTI # YAG3525CT-ND
DigiKey RES SMD 1K OHM 5% 1/16W 0402 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 128111
In Stock
  • 1 $0.1000
  • 10 $0.0070
  • 50 $0.0066
  • 100 $0.0061
  • 500 $0.0051
  • 1,000 $0.0041
  • 5,000 $0.0037
  • 10,000 $0.0020
  • 20,000 $0.0019
  • 30,000 $0.0019
$0.0019 / $0.1000 Buy Now
DISTI # AC0402JR-071KL
Avnet Americas SMD Chip Resistor, 1 kohm, ? 5%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose - Tape and Reel (Alt: AC0402JR-071KL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 4680000
  • 10,000 $0.0009
  • 20,000 $0.0009
  • 40,000 $0.0009
  • 60,000 $0.0008
  • 80,000 $0.0008
$0.0008 / $0.0009 Buy Now
DISTI # 49AK0455
Avnet Americas SMD Chip Resistor, 1 kohm, ? 5%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose - Product that comes on tape, but is not reeled (Alt: 49AK0455) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 5 Days Container: Ammo Pack 9230 Partner Stock
  • 1 $0.1040
  • 25 $0.0090
  • 100 $0.0070
  • 250 $0.0060
  • 1,000 $0.0050
$0.0050 / $0.1040 Buy Now
DISTI # 603-AC0402JR-071KL
Mouser Electronics Thick Film Resistors - SMD 1 kOhms 62.5 mW 0402 5% AEC-Q200 Standard Power Version RoHS: Compliant 127093
  • 1 $0.1000
  • 10 $0.0070
  • 100 $0.0060
  • 500 $0.0050
  • 1,000 $0.0040
  • 10,000 $0.0010
$0.0010 / $0.1000 Buy Now
DISTI # V72:2272_07059169
Arrow Electronics Res Thick Film 0402 1K Ohm 5% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2136 Container: Cut Strips Americas - 6283
  • 1 $0.0395
  • 10 $0.0111
  • 25 $0.0045
  • 100 $0.0018
$0.0018 / $0.0395 Buy Now
Future Electronics AC Series 0402 1 kOhm ±5% 0.063 W ±100 ppm/°C Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 24 Weeks Container: Reel 610000
Reel
  • 10,000 $0.0008
  • 40,000 $0.0007
  • 150,000 $0.0007
  • 250,000 $0.0007
  • 500,000 $0.0007
$0.0007 / $0.0008 Buy Now
Onlinecomponents.com SMD Chip Resistor, 1 kOhm, � 5%, 63 mW, 0402 [1005 Metric], Thick Film, General Purpose RoHS: Compliant 570000 Partner Stock
  • 150,000 $0.0014
  • 300,000 $0.0013
  • 600,000 $0.0013
  • 1,050,000 $0.0013
$0.0013 / $0.0014 Buy Now
DISTI # 86991251
Verical Res Thick Film 0402 1K Ohm 5% 0.063W(1/16W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 10000 Package Multiple: 1 Date Code: 2401 Americas - 10000
  • 10,000 $0.0067
$0.0067 Buy Now
Bristol Electronics   90000
RFQ
DISTI # AC0402JR-071KL
TTI Thick Film Resistors - SMD 1 kOhms 62.5 mW 0402 5% AEC-Q200 Standard Power Version pbFree: Pb-Free Min Qty: 190000 Package Multiple: 10000 Container: Reel Americas - 0
  • 190,000 $0.0015
$0.0015 Buy Now
Future Electronics AC Series 0402 1 kOhm �5% 0.063 W �100 ppm/�C Thick Film Chip Resistor Min Qty: 10000 Package Multiple: 10000 610000
null
  • 10,000 $0.0008
  • 40,000 $0.0008
  • 150,000 $0.0008
  • 250,000 $0.0007
  • 500,000 $0.0007
$0.0007 / $0.0008 Buy Now
DISTI # WRC53109
Rutronik AC0402 1K 5% 0,063W AUTOMO RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Container: Reel Stock DE - 4070000
Stock HK - 650000
Stock US - 0
Stock SG - 0
  • 10,000 $0.0009
  • 30,000 $0.0007
  • 50,000 $0.0007
  • 300,000 $0.0007
$0.0007 / $0.0009 Buy Now
Chip 1 Exchange INSTOCK 360031
RFQ
DISTI # AC0402JR-071KL
Avnet Abacus SMD Chip Resistor 1 kohm 5 63 mW 0402 1005 Metric Thick Film General Purpose - Tape and Reel (Alt: AC0402JR-071KL) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 24 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
New Advantage Corporation AC Series 0402 1 kOhm �5% 0.063 W �100 ppm/�C Thick Film Chip Resistor RoHS: Compliant Min Qty: 1 Package Multiple: 10000 490000
  • 120,000 $0.0015
  • 490,000 $0.0014
$0.0014 / $0.0015 Buy Now
Vyrian Resistors 535745
RFQ

Part Details for AC0402JR-071KL

AC0402JR-071KL Part Data Attributes

Parametric Data
AC0402JR-071KL YAGEO Corporation
Buy Now Datasheet
Compare Parts:
AC0402JR-071KL YAGEO Corporation Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 1000ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 20 Weeks, 5 Days
Samacsys Manufacturer YAGEO
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.32 mm
Package Length 1 mm
Package Style SMT
Package Width 0.5 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1000 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 50 V

AC0402JR-071KL Related Parts

AC0402JR-071KL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds, with a peak temperature of 240°C.

  • Yes, the AC0402JR-071KL is suitable for high-frequency applications up to 1 GHz due to its low inductance and high-frequency stability.

  • The MSL of the AC0402JR-071KL is 1, which means it can withstand normal humidity and temperature conditions without special handling or storage.

  • Yes, the AC0402JR-071KL meets the requirements of the Automotive Electronics Council (AEC) and can be used in automotive applications.

  • The power rating of the AC0402JR-071KL decreases with increasing temperature. At 70°C, the power rating is 0.0625 W, and at 125°C, it is 0.03125 W.
