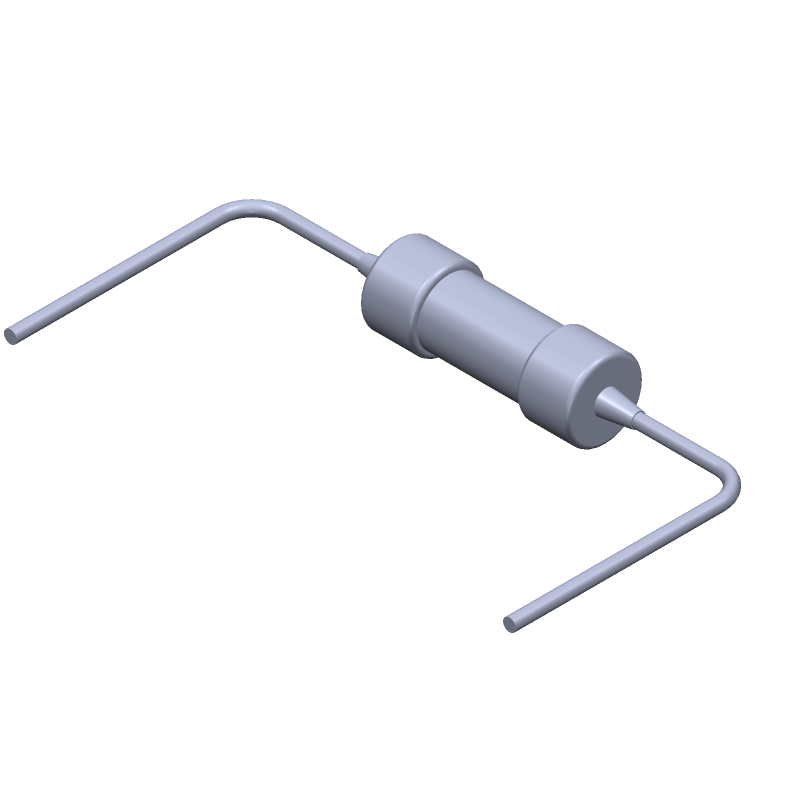

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AC03000007509JAC00 by Vishay Intertechnologies
Results Overview of AC03000007509JAC00 by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
AC03000007509JAC00 Information
AC03000007509JAC00 by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for AC03000007509JAC00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01H0139
|
Newark | Resistor, Wirewound, 75 Ohm, 3W, 5%, Full Reel, Resistance:75Ohm, Product Range:Ac Series, Power Rating:3W, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:15V, Resistor Technology:Wirewound Rohs Compliant: Yes |Vishay AC03000007509JAC00 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2330 / $0.3100 | Buy Now |
|
DISTI #
AC03000007509JAC00
|
Avnet Americas | AC03 75R 5% AC - Ammo Pack (Alt: AC03000007509JAC00) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 8 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.2069 / $0.2241 | Buy Now |
|
DISTI #
594-AC03W75R00J
|
Mouser Electronics | Wirewound Resistors - Through Hole 3watts 75ohms 5% RoHS: Compliant | 126 |
|
$0.2580 / $0.9500 | Buy Now |
|
DISTI #
E02:0323_04170683
|
Arrow Electronics | Res Wirewound 75 Ohm 5% 3W -80ppm/°C to -10ppm/°C Cement AXL Tape and Box RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 8 Weeks Date Code: 2407 | Europe - 1000 |
|
$0.2096 / $0.2463 | Buy Now |
|
DISTI #
78811415
|
Verical | Res Wirewound 75 Ohm 5% 3W -80ppm/°C to -10ppm/°C Cement AXL Tape and Box RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2407 | Americas - 1000 |
|
$0.2097 / $0.2463 | Buy Now |
|
DISTI #
AC03000007509JAC00
|
Avnet Abacus | AC03 75R 5 AC (Alt: AC03000007509JAC00) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 11 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | CEMENTED WIREWOUND RESISTOR, AMMO RoHS: Compliant Min Qty: 1 Package Multiple: 500 | 4000 |
|
$0.1800 / $0.1900 | Buy Now |
Part Details for AC03000007509JAC00
AC03000007509JAC00 CAD Models
AC03000007509JAC00 Part Data Attributes
|
|
AC03000007509JAC00
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
AC03000007509JAC00
Vishay Intertechnologies
Fixed Resistor, Wire Wound, 3W, 75ohm, 5% +/-Tol, 80ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FLAME PROOF | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.8 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 250 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 4.8 mm | |
| Package Length | 13 mm | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 3 W | |
| Rated Temperature | 40 °C | |
| Resistance | 75 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | -10,-80 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 15 V |
Alternate Parts for AC03000007509JAC00
This table gives cross-reference parts and alternative options found for AC03000007509JAC00. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AC03000007509JAC00, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AC03000507509JLC00 | Vishay BCcomponents | Check for Price | RESISTOR, WIRE WOUND, 3 W, 5 %, 80 ppm, 75 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT | AC03000007509JAC00 vs AC03000507509JLC00 |
AC03000007509JAC00 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for AC03000007509JAC00 is between 260°C to 280°C (500°F to 536°F) for a maximum of 10 seconds.
-
Yes, the AC03000007509JAC00 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The moisture sensitivity level (MSL) of AC03000007509JAC00 is MSL 3, which means it can be exposed to a maximum of 168 hours of humidity before soldering.
-
Yes, the AC03000007509JAC00 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
-
The equivalent EIA case size for AC03000007509JAC00 is 0603.
