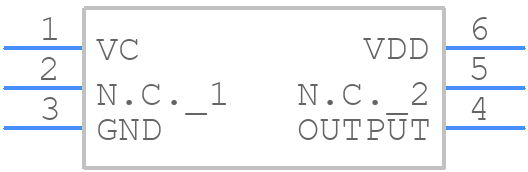

Part Symbol
-

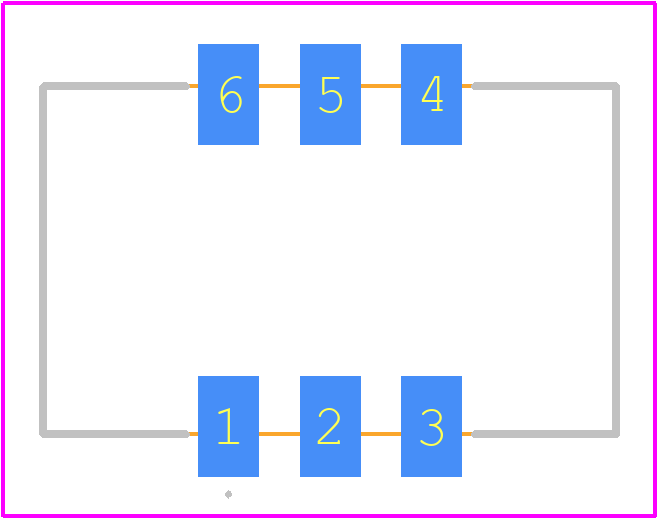

Footprint
-

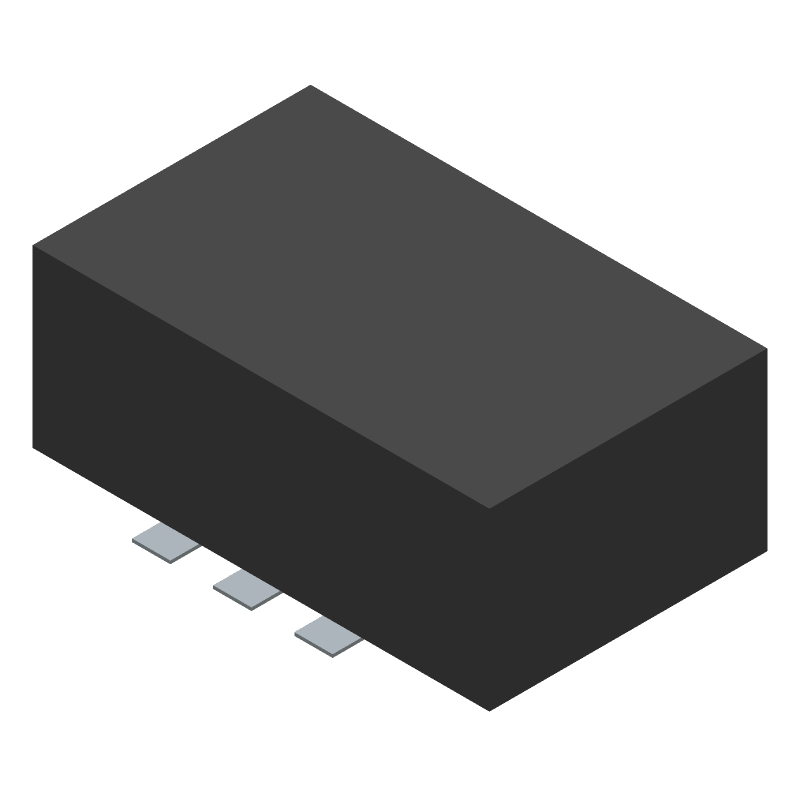

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ABLJO-V-122.880MHZ by Abracon Corporation
Results Overview of ABLJO-V-122.880MHZ by Abracon Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ABLJO-V-122.880MHZ Information
ABLJO-V-122.880MHZ by Abracon Corporation is a VCXO.
VCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ABLJO-V-122.880MHZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
48T0251
|
Newark | Vco/Vcxo, 122.88Mhz, 9.2X14.8Mm, Lvcmos, Frequency Nom:122.88Mhz, Oscillator Case:Smd, 14.8Mm X 9.2Mm, Supply Voltage Nom:3.3V, Product Range:Abljo Series, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Abracon ABLJO-V-122.880MHZ RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$34.5800 / $40.5100 | Buy Now |
|
DISTI #
535-11439-ND
|
DigiKey | XTAL OSC VCXO 122.8800MHZ LVCMOS Min Qty: 10 Lead time: 12 Weeks Container: Strip | Temporarily Out of Stock |
|
$33.6520 | Buy Now |
|
DISTI #
ABLJO-V-122.880MHZ
|
Avnet Americas | Oscillator, Voltage Controlled, LVCMOS, 122.88 MHz, SMD, 14.3mm x 8.7mm, 3.3 V - Bulk (Alt: ABLJO-V-122.880MHZ) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$20.9856 / $32.9770 | Buy Now |
|
DISTI #
815-ABLJO-V122.88M
|
Mouser Electronics | VCXO Oscillators VCXO 14x9 6-SMD 122.88MHz +/-25ppm Stability +/-+/-45ppmppm Pullability -40°C ~ 85°C CMOS 3.3V RoHS: Compliant | 0 |
|
$30.0700 / $41.3500 | Order Now |
|
DISTI #
74278909
|
RS | Oscillator, low jitter crystal, 14.3 x 8.7 x 5.5 mm, +/-45 ppm min., 122.880MHz Min Qty: 10 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$37.6300 | RFQ |
|
|
Onlinecomponents.com | Low Jitter VCXO - 122.880MHZ ±25ppm - 3.3VDC - VCXO: ±45ppm - -40°C to +85°C - Tape&Reel RoHS: Compliant | 0 |
|
$20.9600 / $42.1700 | Buy Now |
|
DISTI #
ABLJO-V-122.880MHZ
|
Avnet Abacus | Oscillator Voltage Controlled LVCMOS 12288 MHz SMD 143mm x 87mm 33 V (Alt: ABLJO-V-122.880MHZ) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Vyrian | Oscillators | 733 |
|
RFQ |
Part Details for ABLJO-V-122.880MHZ
ABLJO-V-122.880MHZ CAD Models
ABLJO-V-122.880MHZ Part Data Attributes
|
|
ABLJO-V-122.880MHZ
Abracon Corporation
Buy Now
Datasheet
|
Compare Parts:
ABLJO-V-122.880MHZ
Abracon Corporation
XTAL OSC VCXO 122.8800MHZ LVCMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ABRACON LLC | |
| Package Description | DILCC6,.35 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ABRACON | |
| Additional Feature | TAPE | |
| Control Voltage-Max | 3.3 V | |
| Control Voltage-Min | ||
| Fall Time-Max | 3 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Deviation/Pullability | 45 ppm | |
| Frequency Stability | 25% | |
| Linearity | 10% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Max | 200 MHz | |
| Operating Frequency-Min | 80 MHz | |
| Operating Frequency-Nom | 122.88 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS | |
| Package Body Material | METAL | |
| Package Equivalence Code | DILCC6,.35 | |
| Physical Dimension | 14.3mm x 8.7mm x 5.5mm | |
| Qualification Status | Not Qualified | |
| Rise Time-Max | 3 ns | |
| Supply Current-Max | 30 mA | |
| Supply Voltage-Max | 3.465 V | |
| Supply Voltage-Min | 3.135 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
