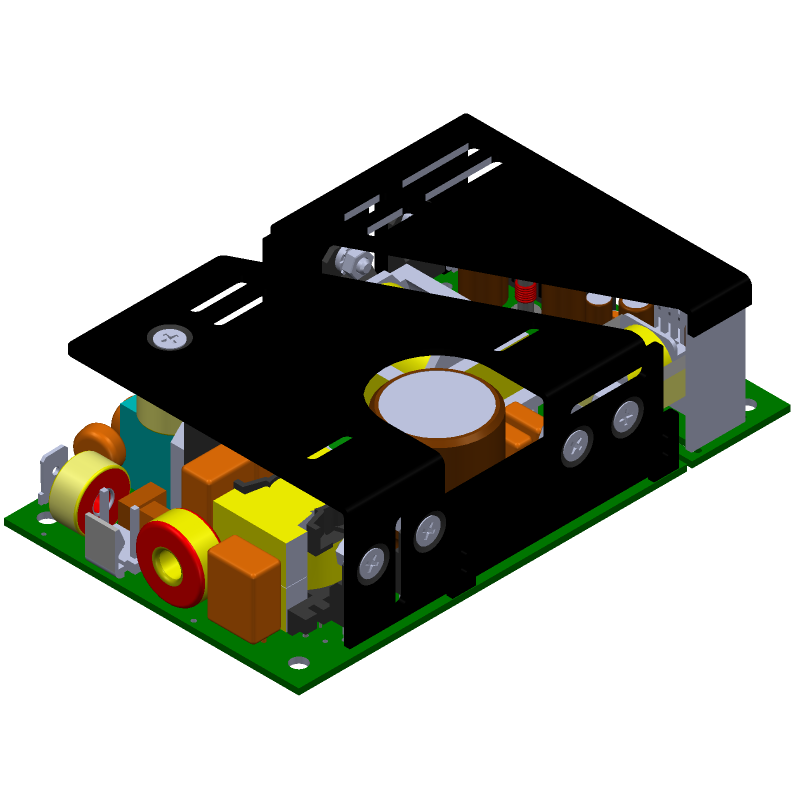

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ABC201-1T30G by Bel Power Solutions
Results Overview of ABC201-1T30G by Bel Power Solutions
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ABC201-1T30G Information
ABC201-1T30G by Bel Power Solutions is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ABC201-1T30G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95AJ7107
|
Newark | Power Supply, abc201-1T30G, ac-Dc, in 100To240V, , ou |Bel Power Solutions ABC201-1T30G RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 38 |
|
$94.9700 / $108.3300 | Buy Now |
|
|
Onlinecomponents.com | AC/DC Power Supply Single-OUT 30V 5.33A 200W RoHS: Compliant |
38 Partner Stock |
|
$85.2100 / $92.0300 | Buy Now |
|
DISTI #
19556543
|
Verical | AC/DC Power Supply Single-OUT 30V 5.33A 200W Min Qty: 1 Package Multiple: 1 | Americas - 38 |
|
$90.8400 / $96.2000 | Buy Now |
|
|
Master Electronics | AC/DC Power Supply Single-OUT 30V 5.33A 200W RoHS: Compliant |
38 Partner Stock |
|
$85.2100 / $92.0300 | Buy Now |
Part Details for ABC201-1T30G
ABC201-1T30G CAD Models
ABC201-1T30G Part Data Attributes
|
|
ABC201-1T30G
Bel Power Solutions
Buy Now
Datasheet
|
Compare Parts:
ABC201-1T30G
Bel Power Solutions
AC-DC Regulated Power Supply Module, 160W,
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | POWER-ONE INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Bel Power Solutions | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CSA, EN, UL | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 90 V | |
| Length | 127 mm | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 5.33 A | |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL | |
| Total Power Output-Max | 160 W | |
| Width | 76.2 mm |
