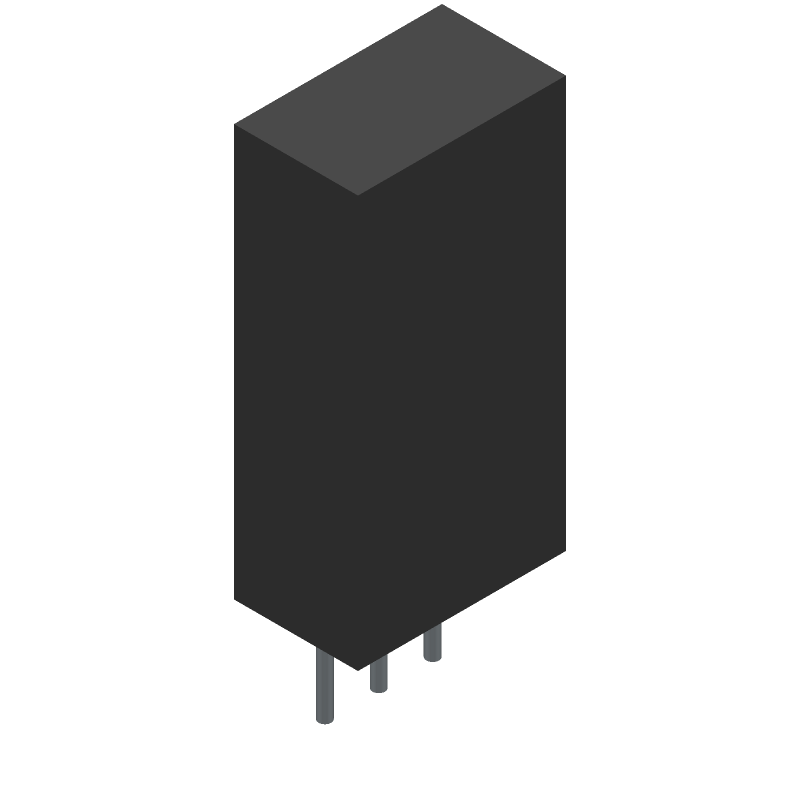

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AB15AP-FC by NKK Switches
Results Overview of AB15AP-FC by NKK Switches
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Space Technology
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Electronic Manufacturing
Communication and Networking
Robotics and Drones
AB15AP-FC Information
AB15AP-FC by NKK Switches is an Other Switch.
Other Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for AB15AP-FC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09X6650
|
Newark | Process Sealed Subminiature Pushbutton |Nkk Switches AB15AP-FC RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.6200 / $11.6500 | Buy Now |
|
DISTI #
360-3871-ND
|
DigiKey | SWITCH PUSH SPDT 0.4VA 28V Min Qty: 1 Lead time: 13 Weeks Container: Box |
186 In Stock |
|
$4.9707 / $7.7400 | Buy Now |
|
DISTI #
633-AB15AP-FC
|
Mouser Electronics | Pushbutton Switches ON-(ON) .201 RED CAP STRAIGHT PC .4VA RoHS: Compliant | 0 |
|
$4.9700 / $7.7200 | Order Now |
|
DISTI #
70364659
|
RS | Switch, Sealed, P/B, SPDT, ON-(ON), Straight PC Terminal, Red Cap, 0.4A,28VAC/DC Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$6.6900 / $7.1200 | RFQ |
Part Details for AB15AP-FC
AB15AP-FC CAD Models
AB15AP-FC Part Data Attributes
|
|
AB15AP-FC
NKK Switches
Buy Now
Datasheet
|
Compare Parts:
AB15AP-FC
NKK Switches
Switch, SPDT, Vertical, Through Hole-straight
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NKK SWITCHES CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | NKK Switches | |
| Actuator Angle | ||
| Actuator Color | RED | |
| Actuator Length | 0.248 inch | |
| Actuator Material | POLYCARBONATE | |
| Actuator Travel | 1.0922 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 5.842 mm | |
| Body Color | BLACK | |
| Body Height | 22.5044 mm | |
| Body Length or Diameter | 9.8044 mm | |
| Bushing Diameter | ||
| Bushing Length | 0.177 inch | |
| Bushing Type | RECTANGULAR | |
| Center Contact Material | PHOSPHOR BRONZE | |
| Center Contact Plating | GOLD OVER SILVER | |
| Contact (DC) Max Power Rating R Load | 0.4VA@28VDC | |
| Contact Function | ON-(ON) | |
| Contact Resistance | 0.05 mΩ | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Material | BRASS | |
| End Contact Plating | GOLD OVER NICKEL | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -10 °C | |
| PCB Hole Count | 3 | |
| Sealing | EPOXY | |
| Solderability | WAVE | |
| Surface Mount | NO | |
| Switch Action | VERTICAL | |
| Switch Function | SPDT | |
| Terminal Finish | GOLD | |
| Terminal Length | 0.122 inch | |
| Termination Type | SOLDER | |
| Washability | SOLVENT |
