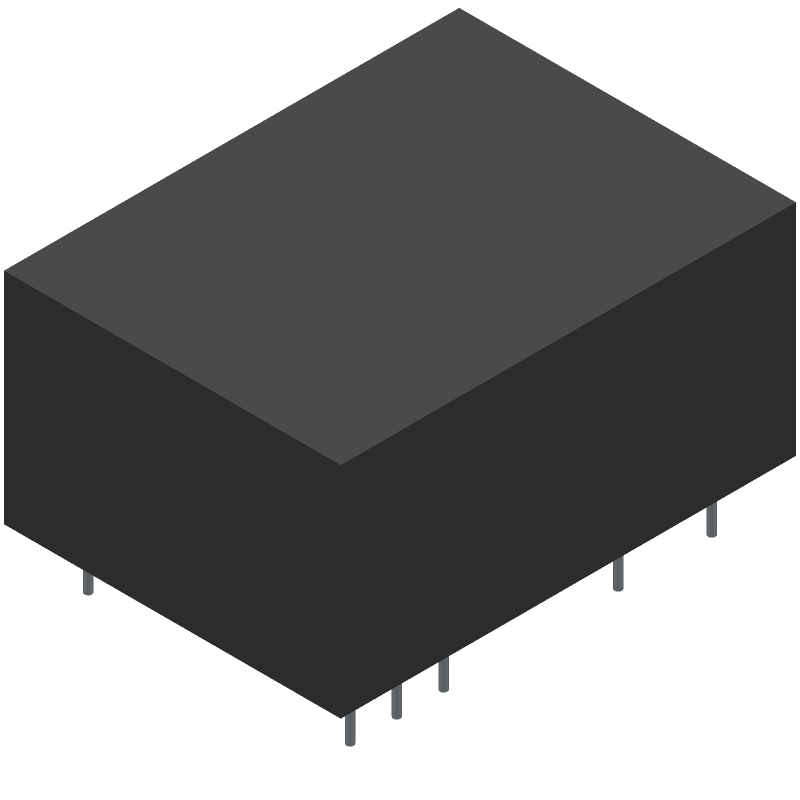

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AA04D0305A by Delta Electronics Inc
Results Overview of AA04D0305A by Delta Electronics Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
AA04D0305A Information
AA04D0305A by Delta Electronics Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for AA04D0305A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
941-1666-ND
|
DigiKey | AC/DC CONVERTER 5V 3.3V 4W Min Qty: 50 Lead time: 30 Weeks Container: Box | Temporarily Out of Stock |
|
$17.4982 | Buy Now |
|
DISTI #
108-AA04D0305A
|
Mouser Electronics | AC/DC Power Modules AC/DC Power Module, Dual Output, 3.3Vout, 5Vout, 4W RoHS: Compliant | 1 |
|
$16.6200 / $20.2400 | Buy Now |
Part Details for AA04D0305A
AA04D0305A CAD Models
AA04D0305A Part Data Attributes
|
|
AA04D0305A
Delta Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
AA04D0305A
Delta Electronics Inc
AC-DC Regulated Power Supply Module, 2 Output, 4W, Hybrid, PACKAGE-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DELTA ELECTRONICS INC | |
| Package Description | PACKAGE-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Delta Electronics | |
| Additional Feature | ALSO REQUIRE 120 TO 370VDC; ALSO 5V OUTPUT AVAILABLE | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-PDMA-P7 | |
| Length | 36.5 mm | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Voltage-Max | 1.05 V | |
| Output Voltage-Min | 0.95 V | |
| Output Voltage-Nom | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 17.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 4 W | |
| Trim/Adjustable Output | NO | |
| Width | 27 mm |
AA04D0305A Frequently Asked Questions (FAQ)
-
Delta Electronics recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat dissipation.
-
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material.
-
The maximum allowable capacitance for the output filter is 100uF. Exceeding this value may cause instability or oscillation in the converter.
-
Yes, the AA04D0305A can be used in a redundant or parallel configuration, but it's essential to follow Delta Electronics' guidelines for synchronization and current sharing to ensure reliable operation.
-
The recommended input fuse rating is 2A, and a slow-blow fuse type is recommended to prevent nuisance tripping due to inrush currents.
