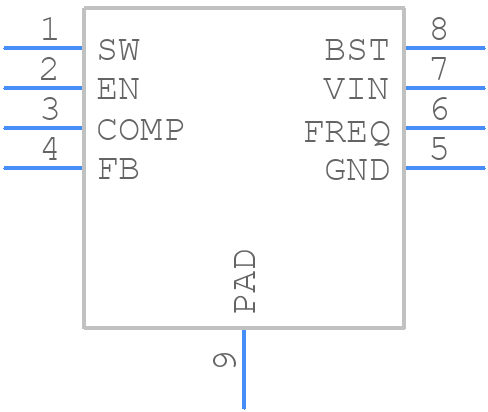

Part Symbol
-

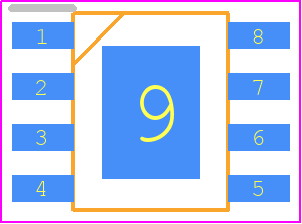

Footprint
-

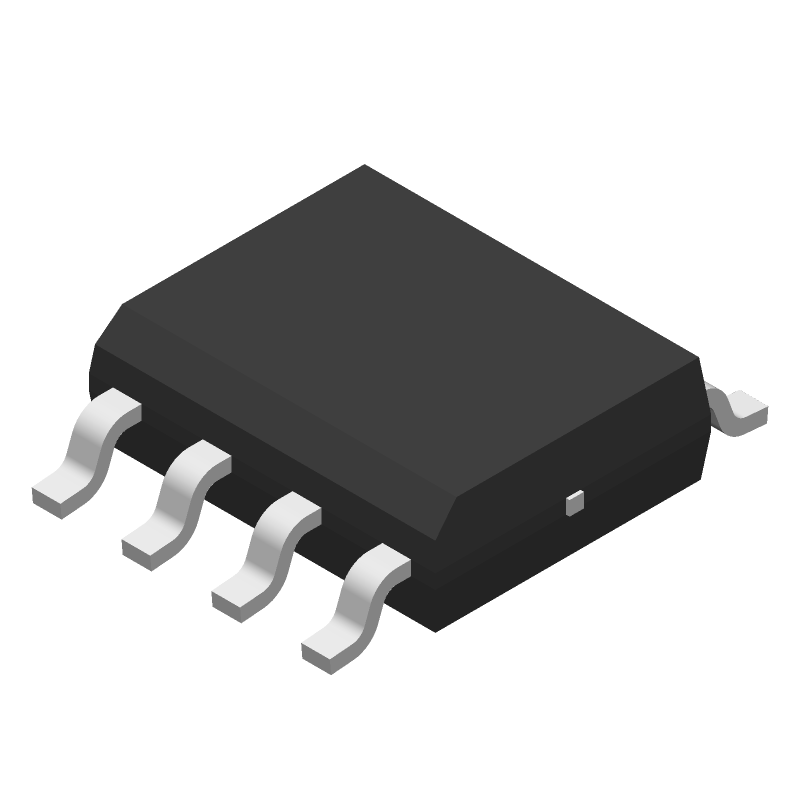

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A8586KLJTR-T by Allegro MicroSystems LLC
Results Overview of A8586KLJTR-T by Allegro MicroSystems LLC
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
A8586KLJTR-T Information
A8586KLJTR-T by Allegro MicroSystems LLC is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for A8586KLJTR-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
620-1716-1-ND
|
DigiKey | IC REG BUCK ADJ 3.5A 8SOIC Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7482 In Stock |
|
$0.9035 / $1.8500 | Buy Now |
|
DISTI #
250-A8586KLJTR-T
|
Mouser Electronics | Switching Voltage Regulators WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5A BUCK REG RoHS: Compliant | 1575 |
|
$0.8780 / $1.8500 | Buy Now |
|
DISTI #
E54:1762_08821514
|
Arrow Electronics | Conv DC-DC 3.8V to 36V Step Down Single-Out 0.8V to 30V 3.5A Automotive AEC-Q100 8-Pin SOIC N EP T/R RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 13 Weeks Date Code: 2509 | Europe - 18000 |
|
$0.8540 | Buy Now |
|
|
Future Electronics | WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5A BUCK REG RoHS: Not Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks Container: Reel | 9000Reel |
|
$0.8250 | Buy Now |
|
DISTI #
88744578
|
Verical | Conv DC-DC 3.8V to 36V Step Down Single-Out 0.8V to 30V 3.5A Automotive AEC-Q100 8-Pin SOIC N EP T/R RoHS: Compliant Min Qty: 9000 Package Multiple: 9000 | Americas - 18000 |
|
$0.8540 | Buy Now |
|
|
Future Electronics | WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5A BUCK REG Min Qty: 3000 Package Multiple: 3000 |
9000 null |
|
$0.8250 | Buy Now |
|
DISTI #
A8586KLJTR-T
|
IBS Electronics | WIDE INPUT VOLTAGE ADJUSTABLE FREQUENCY ASYNCHRONOUS BUCK REGULATOR SOIC-8 ROHS Min Qty: 3000 Package Multiple: 1 | 9000 |
|
$1.0725 | Buy Now |
|
DISTI #
SMC-A8586KLJTR-T
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 38728 |
|
RFQ | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 6000 |
|
$1.2700 / $1.3800 | Buy Now |
Part Details for A8586KLJTR-T
A8586KLJTR-T CAD Models
A8586KLJTR-T Part Data Attributes
|
|
A8586KLJTR-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A8586KLJTR-T
Allegro MicroSystems LLC
Switching Regulator, Current-mode, 2400kHz Switching Freq-Max, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Additional Feature | OUTPUT VOLTAGE RANGE FROM 0.8 V TO 30 V, ALSO OPERATES IN PFM CONTROL TECHNIQUE | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Seated Height-Max | 1.7 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2400 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
A8586KLJTR-T Frequently Asked Questions (FAQ)
-
A symmetrical layout with thermal vias and a solid ground plane is recommended. Keep the IC away from heat sources and ensure good airflow.
-
Check the motor connections, ensure proper phase sequence, and verify the input voltage and frequency. Also, check for overheating, overcurrent, or undervoltage lockout conditions.
-
The maximum allowable voltage drop is approximately 1.5V at the maximum current rating. Exceeding this may lead to overheating or damage.
-
No, the A8586KLJTR-T is specifically designed for 3-phase BLDC motors. Using it with a stepper motor may not provide optimal performance or may even damage the IC.
-
Use the built-in overcurrent detection and fault output pins. Implement a fault detection circuit to monitor the IC's fault output and take appropriate action, such as shutting down the motor or triggering an alarm.
