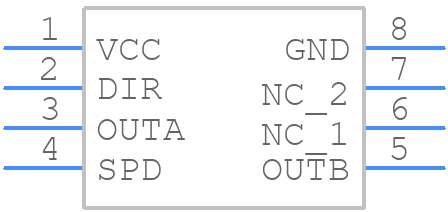

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A1233LLTR-T by Allegro MicroSystems LLC
Results Overview of A1233LLTR-T by Allegro MicroSystems LLC
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
A1233LLTR-T Information
A1233LLTR-T by Allegro MicroSystems LLC is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for A1233LLTR-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
620-1486-1-ND
|
DigiKey | MAGNETIC SWITCH SPEC PURP 8SOIC Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3119 In Stock |
|
$1.0054 / $1.7400 | Buy Now |
|
DISTI #
250-A1233LLTR-T
|
Mouser Electronics | Board Mount Hall Effect / Magnetic Sensors DUAL CHANNEL DIRECTION DETECTION HALL-EFFECT RoHS: Compliant | 7412 |
|
$0.9190 / $1.7400 | Buy Now |
|
DISTI #
A1233LLTR-T
|
Avnet Silica | Hall Effect Sensor 70mA Monolithic 12V 8Pin SOIC TR (Alt: A1233LLTR-T) RoHS: Compliant Min Qty: 9000 Package Multiple: 9000 Lead time: 22 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | 55Gs -55Gs SOIC-8 Linear Hall Sensors ROHS | 2393 |
|
$1.0923 / $1.4061 | Buy Now |
Part Details for A1233LLTR-T
A1233LLTR-T CAD Models
A1233LLTR-T Part Data Attributes
|
|
A1233LLTR-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A1233LLTR-T
Allegro MicroSystems LLC
Analog Circuit, 1 Func, PDSO8, SOIC-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 24 V | |
| Supply Voltage-Min (Vsup) | 3.5 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3.9 mm |
