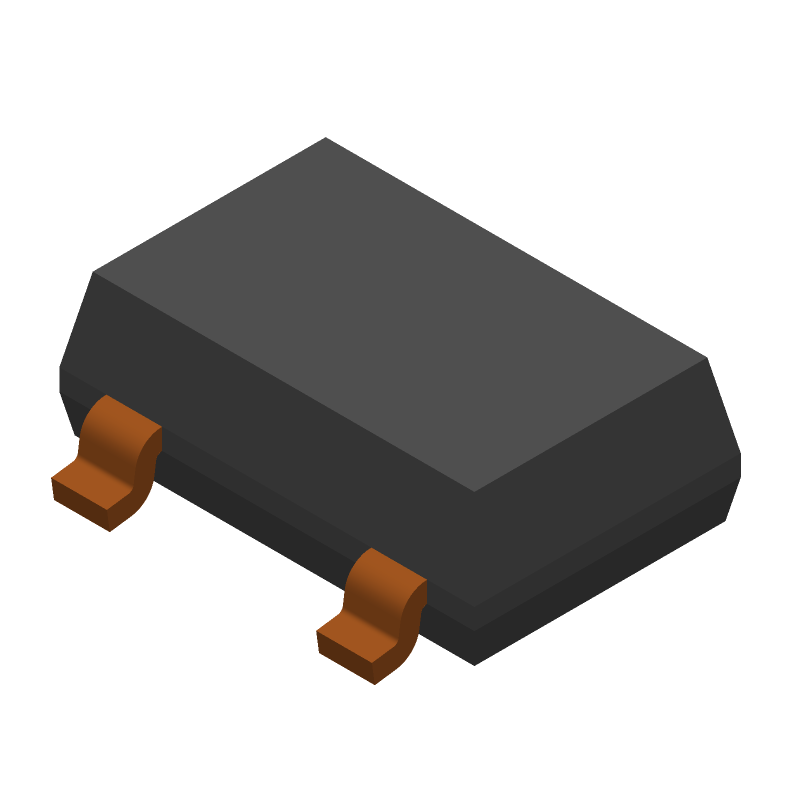

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A1212LLHLX-T by Allegro MicroSystems LLC
Results Overview of A1212LLHLX-T by Allegro MicroSystems LLC
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
A1212LLHLX-T Information
A1212LLHLX-T by Allegro MicroSystems LLC is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for A1212LLHLX-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
A1212LLHLX-T-ND
|
DigiKey | MAGNETIC SWITCH LATCH SOT23W Min Qty: 30000 Lead time: 15 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2460 | Buy Now |
|
DISTI #
250-A1212LLHLX-T
|
Mouser Electronics | Board Mount Hall Effect / Magnetic Sensors CONTINUOUS TIME HALL EFFECT LATCH RoHS: Compliant | 13375 |
|
$0.2780 / $0.7100 | Buy Now |
|
DISTI #
A1212LLHLX-T
|
Avnet Asia | Hall Effect Sensor 25mA Latch/Monolithic 3.8V to 24V 3-Pin SOT23W T/R (Alt: A1212LLHLX-T) RoHS: Compliant Min Qty: 30000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days | 0 |
|
$0.2177 / $0.2434 | Buy Now |
|
|
LCSC | 170Gs -170Gs SOT-23W Linear Hall Sensors ROHS | 1035 |
|
$1.0938 / $1.5268 | Buy Now |
Part Details for A1212LLHLX-T
A1212LLHLX-T CAD Models
A1212LLHLX-T Part Data Attributes
|
|
A1212LLHLX-T
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A1212LLHLX-T
Allegro MicroSystems LLC
Hall Effect Sensor, -17.5mT Min, 17.5mT Max, Rectangular, Surface Mount, LEAD FREE, SOT-23W, 3PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Body Breadth | 1.91 mm | |
| Body Height | 1 mm | |
| Body Length or Diameter | 2.98 mm | |
| Housing | PLASTIC | |
| Hysteresis | 22.5 mT | |
| Magnetic Field Range-Max | 17.5 mT | |
| Magnetic Field Range-Min | -17.5 mT | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Current-Max | 7.5 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Range | 400mV | |
| Output Type | VOLTAGE OUTPUT | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | MAGNETIC FIELD SENSOR,HALL EFFECT | |
| Supply Voltage-Max | 24 V | |
| Supply Voltage-Min | 3.8 V | |
| Surface Mount | YES | |
| Termination Type | SOLDER |
A1212LLHLX-T Frequently Asked Questions (FAQ)
-
A good PCB layout for the A1212LLHLX-T involves keeping the sensitive analog circuitry away from noisy digital signals, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise coupling.
-
To ensure accurate magnetic field measurements, it's essential to properly calibrate the device, use a stable power supply, minimize external interference, and follow the recommended PCB layout and shielding guidelines.
-
The A1212LLHLX-T is rated for operation from -40°C to 150°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures.
-
While the A1212LLHLX-T is designed to be robust, it's still important to ensure proper mounting and mechanical stability to minimize the effects of vibration on the device's performance and accuracy.
-
The A1212LLHLX-T provides analog output signals, which can be easily interfaced with microcontrollers or other digital systems using analog-to-digital converters (ADCs) or dedicated interface ICs.
