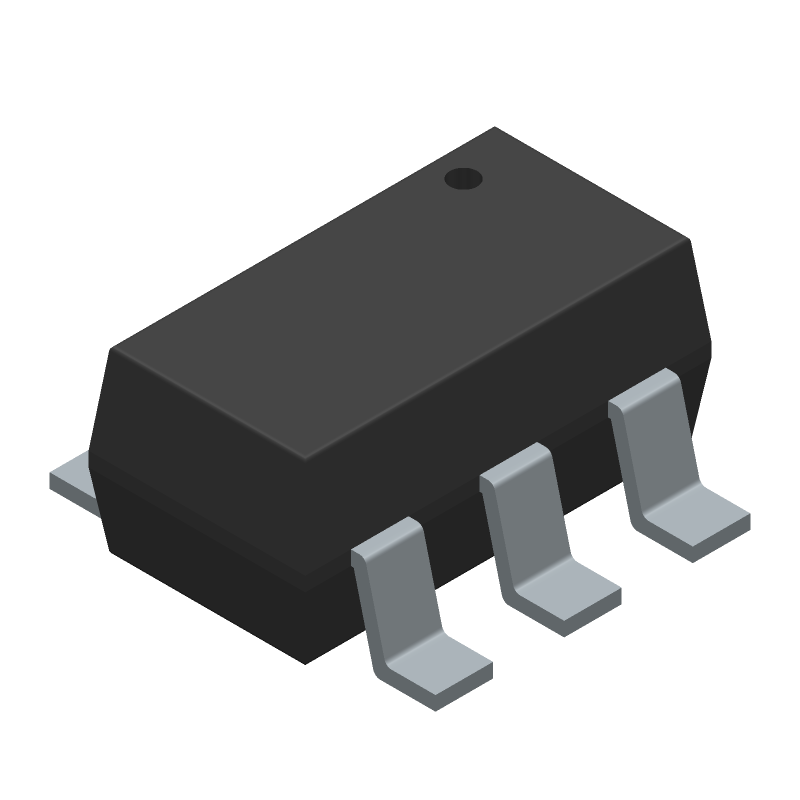

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ZXGD3113W6-7 by Diodes Incorporated
Results Overview of ZXGD3113W6-7 by Diodes Incorporated
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ZXGD3113W6-7 Information
ZXGD3113W6-7 by Diodes Incorporated is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ZXGD3113W6-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK9142
|
Newark | Synchronous Mosfet Controller, 150Degc Rohs Compliant: Yes |Diodes Inc. ZXGD3113W6-7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5800 |
|
$0.2980 / $1.1200 | Buy Now |
|
DISTI #
ZXGD3113W6-7DICT-ND
|
DigiKey | IC GATE DRVR LOW-SIDE SOT23-6 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1913 In Stock |
|
$0.2251 / $0.5500 | Buy Now |
|
DISTI #
ZXGD3113W6-7
|
Avnet Americas | Synchronous MOSFET Controller 3.5 to 40V 250kHz 6-Pin SOT26 T/R - Tape and Reel (Alt: ZXGD3113W6-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 192000 Factory Stock |
|
$0.2045 / $0.2092 | Buy Now |
|
DISTI #
621-ZXGD3113W6-7
|
Mouser Electronics | Gate Drivers Synch MOSFET Controller | 4861 |
|
$0.2270 / $0.5500 | Buy Now |
|
DISTI #
ZXGD3113W6-7
|
TME | IC: driver, gate driver, SOT26, -3÷1.5A, Ch: 1, 3.5÷40V Min Qty: 1 | 0 |
|
$0.2830 / $0.6960 | RFQ |
|
DISTI #
ZXGD3113W6-7
|
Avnet Silica | Synchronous MOSFET Controller 35 to 40V 250kHz 6Pin SOT26 TR (Alt: ZXGD3113W6-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
LCSC | Low edge 1 MOSFET 1.5A 360ns 210ns 3.5V40V 3A SOT-23-6 Gate Drivers ROHS | 2972 |
|
$0.3560 / $0.4560 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 3000 |
|
RFQ |
Part Details for ZXGD3113W6-7
ZXGD3113W6-7 CAD Models
ZXGD3113W6-7 Part Data Attributes
|
|
ZXGD3113W6-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
ZXGD3113W6-7
Diodes Incorporated
Buffer/Inverter Based MOSFET Driver,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | SOT-26, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| High Side Driver | NO | |
| Input Characteristics | STANDARD | |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.15 mm | |
| Supply Voltage-Max | 40 V | |
| Supply Voltage-Min | 3.5 V | |
| Supply Voltage-Nom | 19 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
ZXGD3113W6-7 Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
-
The ZXGD3113W6-7 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within the recommended voltage and current ranges, and avoid voltage spikes or transients.
-
While the ZXGD3113W6-7 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Consider factors such as operating temperature range, voltage tolerance, and moisture sensitivity. It's recommended to consult with Diodes Incorporated or a qualified engineer for specific guidance.
-
Follow the recommended soldering and assembly procedures outlined in the datasheet or Diodes Incorporated's application notes. Ensure that the device is handled and stored properly to prevent damage, and use a soldering iron with a temperature range of 250°C to 260°C.
