Resistors / Array/Network Resistors / YC124-JR-077R5L
Datasheets

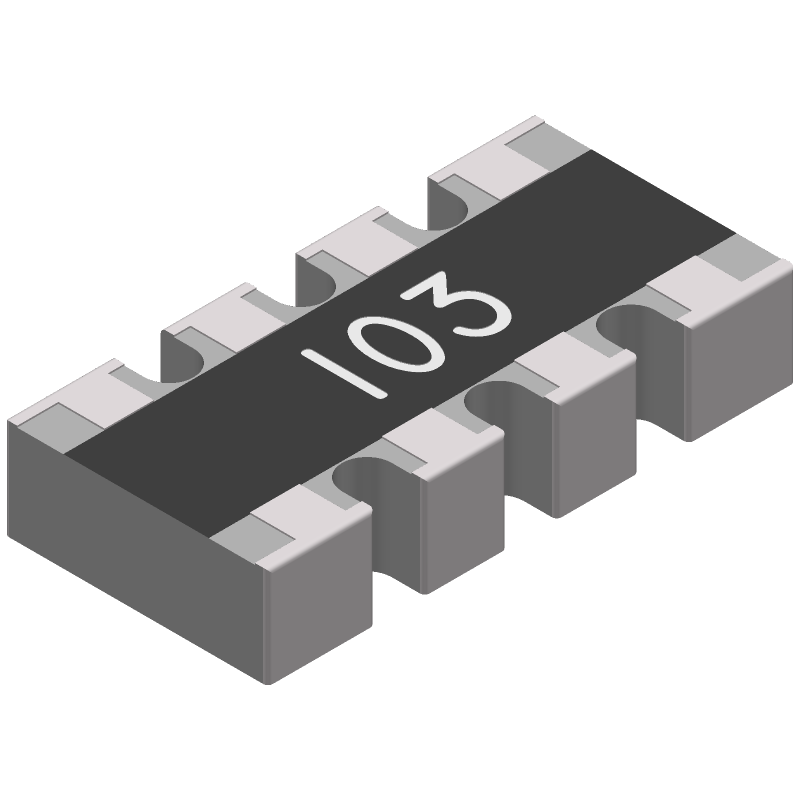

YC124-JR-077R5L by: YAGEO Corporation

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 7.5ohm, 25V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0408, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for YC124-JR-077R5L by YAGEO Corporation

Results Overview of YC124-JR-077R5L by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

YC124-JR-077R5L Information

YC124-JR-077R5L by YAGEO Corporation is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for YC124-JR-077R5L

Part # Distributor Description Stock Price Buy
DISTI # 68R0335
Newark Resistor, Isolated Array, 4Resistor, 7.5 Ohm 5% Smd, Resistance:7.5Ohm, Network Circuit Type:Isolated, No. Of Resistors:4Resistors, Resistor Case/Package:0804 [2010 Metric], Resistance Tolerance:± 5%, Voltage Rating:25V Rohs Compliant: Yes |Yageo YC124-JR-077R5L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 28572
  • 1 $0.0060
  • 25 $0.0060
  • 100 $0.0060
  • 250 $0.0060
  • 500 $0.0060
  • 1,000 $0.0060
  • 2,500 $0.0060
  • 5,000 $0.0060
$0.0060 Buy Now
DISTI # YC124J-7.5CT-ND
DigiKey RES ARRAY 4 RES 7.5 OHM 0804 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.1400
  • 10,000 $0.0173
$0.0173 / $0.1400 Buy Now
DISTI # YC124-JR-077R5L
Avnet Americas Resistor, Array, 7.5 Ohm, ? 5%, 250 mW, 4 Resistors, Isolated, 0804 [2010 Metric], Convex, Surface Mount, Thick Film - Tape and Reel (Alt: YC124-JR-077R5L) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 28 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0050
  • 20,000 $0.0049
  • 40,000 $0.0047
  • 60,000 $0.0046
  • 80,000 $0.0045
$0.0045 / $0.0050 Buy Now
DISTI # 68R0335
Avnet Americas Resistor, Array, 7.5 Ohm, ? 5%, 250 mW, 4 Resistors, Isolated, 0804 [2010 Metric], Convex, Surface Mount, Thick Film - Product that comes on tape, but is not reeled (Alt: 68R0335) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks, 3 Days Container: Ammo Pack 0
  • 1 $0.0240
$0.0240 Buy Now
DISTI # 603-YC124-JR-077R5L
Mouser Electronics Resistor Networks & Arrays RoHS: Compliant 8200
  • 1 $0.1500
  • 10 $0.1070
  • 100 $0.1020
  • 500 $0.0810
  • 1,000 $0.0710
  • 5,000 $0.0540
  • 10,000 $0.0170
$0.0170 / $0.1500 Buy Now
DISTI # 19270156
Verical Res Thick Film Array 7.5 Ohm 5% ±250ppm/°C ISOL Epoxy 8-Pin 0804(4 X 0402) Convex SMD Automotive AEC-Q200 T/R Min Qty: 8334 Package Multiple: 1 Americas - 28572
  • 8,334 $0.0083
  • 10,000 $0.0081
  • 25,000 $0.0079
$0.0079 / $0.0083 Buy Now
Quest Components RESISTOR, NETWORK, FILM, ISOLATED, 7.5 OHM, SURFACE MOUNT 370000
  • 1 $0.0296
  • 103,951 $0.0044
  • 225,226 $0.0039
$0.0039 / $0.0296 Buy Now
DISTI # YC124-JR-077R5L
TME Resistor network: Y, SMD, 7.5Ω, ±5%, 62.5mW, No.of resistors: 4 Min Qty: 1 9684
  • 1 $0.1364
  • 100 $0.0140
  • 1,000 $0.0089
  • 2,500 $0.0081
  • 10,000 $0.0076
  • 50,000 $0.0073
$0.0073 / $0.1364 Buy Now
DISTI # YC124-JR-077R5L
IBS Electronics RES THICK FILM ARRAY 7.5OHM 5% 250PPM/C ISOL EPOXY 8-PIN 0804(4 X 0402) CONVEX SMD T/R Min Qty: 10000 Package Multiple: 1 0
  • 10,000 $0.0063
  • 20,000 $0.0061
  • 40,000 $0.0060
  • 50,000 $0.0059
  • 150,000 $0.0057
$0.0057 / $0.0063 Buy Now
DISTI # YC124-JR-077R5L
Avnet Abacus Resistor Array 75 Ohm 5 250 mW 4 Resistors Isolated 0804 2010 Metric Convex Surface Mount Thick Film - Tape and Reel (Alt: YC124-JR-077R5L) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 22 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for YC124-JR-077R5L

YC124-JR-077R5L Part Data Attributes

Parametric Data
YC124-JR-077R5L YAGEO Corporation
Buy Now Datasheet
Compare Parts:
YC124-JR-077R5L YAGEO Corporation Array/Network Resistor, Isolated, Metal Glaze/thick Film, 7.5ohm, 25V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0408, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.20
Factory Lead Time 22 Weeks, 3 Days
Samacsys Manufacturer YAGEO
Construction Rectangular
First Element Resistance 7.5 Ω
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Network Type ISOLATED
Number of Elements 1
Number of Functions 4
Number of Terminals 8
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 2 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.0625 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 7.5 Ω
Resistor Type ARRAY/NETWORK RESISTOR
Second/Last Element Resistance 7.5 Ω
Size Code 0408
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 250 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 5%
Working Voltage 25 V
