Programmable Logic / Field Programmable Gate Arrays / XC7A200T-1FFG1156I
Datasheets
XC7A200T-1FFG1156I by:

Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, PBGA1156,

Part Details for XC7A200T-1FFG1156I by AMD

Results Overview of XC7A200T-1FFG1156I by AMD

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

XC7A200T-1FFG1156I Information

XC7A200T-1FFG1156I by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for XC7A200T-1FFG1156I

Part # Distributor Description Stock Price Buy
DISTI # 32AC9795
Newark Fpga, Artix-7, 500 I/O, Fcbga-1156, Fpga Type:Sram Based Fpga, No. Of Logic Cells:215360Logic Cells, Ic Case/Package:Fcbga, No. Of Pins:1156Pins, Speed Grade:1, No.of User I/Os:500I/O S, Process Technology:28Nm (Hkmg), Msl:- Rohs Compliant: Yes |Amd XC7A200T-1FFG1156I RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 24
  • 1 $380.8600
$380.8600 Buy Now
DISTI # 122-2050-ND
DigiKey IC FPGA 500 I/O 1156FCBGA Min Qty: 1 Lead time: 16 Weeks Container: Tray Temporarily Out of Stock
  • 1 $380.9000
$380.9000 Buy Now
DISTI # XC7A200T-1FFG1156I
Avnet Americas - Trays (Alt: XC7A200T-1FFG1156I) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray 0
  • 1 $373.2428
$373.2428 Buy Now
DISTI # 217-7A200T-1FFG1156I
Mouser Electronics FPGA - Field Programmable Gate Array XC7A200T-1FFG1156I RoHS: Compliant 10
  • 1 $380.8600
$380.8600 Buy Now
DISTI # XC7A200T-1FFG1156I
Avnet Asia FPGA Artix-7 Family 215360 Cells 28nm Technology 1V 1156-Pin FC-BGA (Alt: XC7A200T-1FFG1156I) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days 0
  • 1 $418.5714
  • 2 $390.6667
  • 3 $380.5195
  • 5 $370.8861
  • 10 $361.7284
  • 25 $353.0120
  • 50 $344.7059
$344.7059 / $418.5714 Buy Now
DISTI # XC7A200T-1FFG1156I
Avnet Silica (Alt: XC7A200T-1FFG1156I) RoHS: Compliant Min Qty: 1 Package Multiple: 24 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # XC7A200T-1FFG1156I
EBV Elektronik (Alt: XC7A200T-1FFG1156I) RoHS: Compliant Min Qty: 2 Package Multiple: 24 Lead time: 18 Weeks, 0 Days EBV - 0
Buy Now

Part Details for XC7A200T-1FFG1156I

XC7A200T-1FFG1156I CAD Models

  • Part Symbol

    Part Symbol

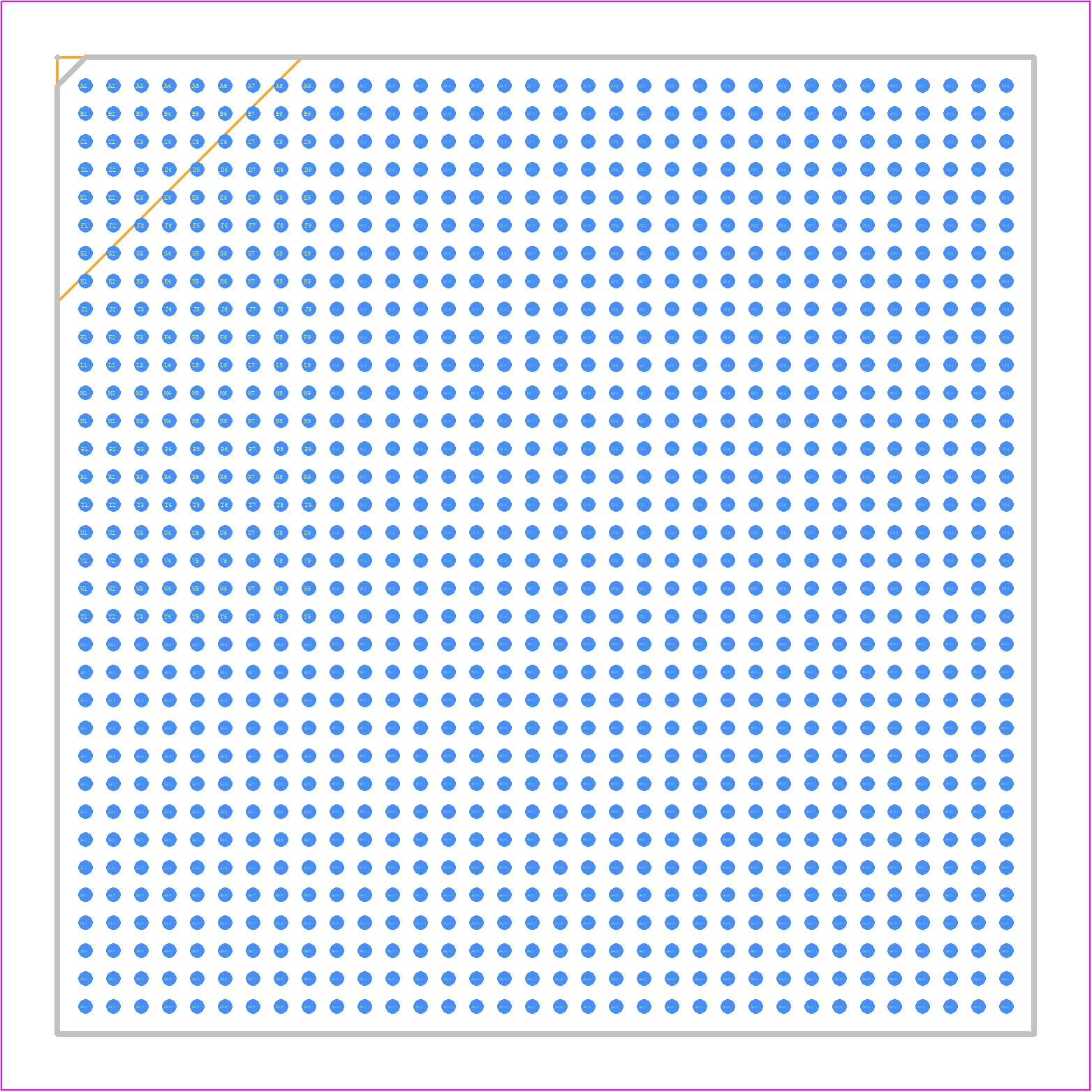

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XC7A200T-1FFG1156I Part Data Attributes

Parametric Data
XC7A200T-1FFG1156I AMD
Buy Now Datasheet
Compare Parts:
XC7A200T-1FFG1156I AMD Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, PBGA1156,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ADVANCED MICRO DEVICES INC
Package Description BGA-1156
Reach Compliance Code compliant
Factory Lead Time 16 Weeks
Samacsys Manufacturer AMD
Clock Frequency-Max 1098 MHz
Combinatorial Delay of a CLB-Max 1.27 ns
JESD-30 Code S-PBGA-B1156
JESD-609 Code e1
Length 35 mm
Moisture Sensitivity Level 4
Number of CLBs 16825
Number of Inputs 500
Number of Logic Cells 215360
Number of Outputs 500
Number of Terminals 1156
Operating Temperature-Max 100 °C
Operating Temperature-Min -40 °C
Organization 16825 CLBS
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA1156,34X34,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 245
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 3.1 mm
Supply Voltage-Max 1.05 V
Supply Voltage-Min 0.95 V
Supply Voltage-Nom 1 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 35 mm

Alternate Parts for XC7A200T-1FFG1156I

This table gives cross-reference parts and alternative options found for XC7A200T-1FFG1156I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC7A200T-1FFG1156I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
XC7A200T-1FFG1156C AMD $297.9051 Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, PBGA1156, XC7A200T-1FFG1156I vs XC7A200T-1FFG1156C
XC7A200T-1FFV1156I AMD Xilinx Check for Price Field Programmable Gate Array, 16825 CLBs, PBGA1156, FBGA-1156 XC7A200T-1FFG1156I vs XC7A200T-1FFV1156I
XC7A200T-1FFG1156C AMD Xilinx Check for Price Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, CMOS, PBGA1156, FBGA-1156 XC7A200T-1FFG1156I vs XC7A200T-1FFG1156C
XC7A200T-1FFG1156I AMD Xilinx Check for Price Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, CMOS, PBGA1156, FBGA-1156 XC7A200T-1FFG1156I vs XC7A200T-1FFG1156I
XC7A200T-1FFV1156C AMD Check for Price Field Programmable Gate Array, 16825 CLBs, PBGA1156, FBGA-1156 XC7A200T-1FFG1156I vs XC7A200T-1FFV1156C
XC7A200T-1FFG1156E AMD Xilinx Check for Price Field Programmable Gate Array, XC7A200T-1FFG1156I vs XC7A200T-1FFG1156E
XC7A200T-1FFG1156E AMD Check for Price Field Programmable Gate Array, 16825 CLBs, 1098MHz, 215360-Cell, PBGA1156, FCBGA-1156 XC7A200T-1FFG1156I vs XC7A200T-1FFG1156E

XC7A200T-1FFG1156I Related Parts

XC7A200T-1FFG1156I Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the XC7A200T-1FFG1156I is dependent on the specific design and implementation, but it can operate up to 500 MHz.

  • The XC7A200T-1FFG1156I has a built-in memory interface generator (MIG) that can be used to implement a DDR3 memory interface. Xilinx provides a MIG wizard in the Vivado Design Suite to help with the implementation.

  • The power consumption of the XC7A200T-1FFG1156I depends on the specific design and implementation, but Xilinx provides power estimation tools in the Vivado Design Suite to help estimate power consumption.

  • The XC7A200T-1FFG1156I has a built-in PCIe endpoint block that can be used to implement a PCIe interface. Xilinx provides a PCIe core and a PCIe wizard in the Vivado Design Suite to help with the implementation.

  • The XC7A200T-1FFG1156I has GTX transceivers that can operate up to 12.5 Gbps, providing a maximum bandwidth of 100 Gbps.
