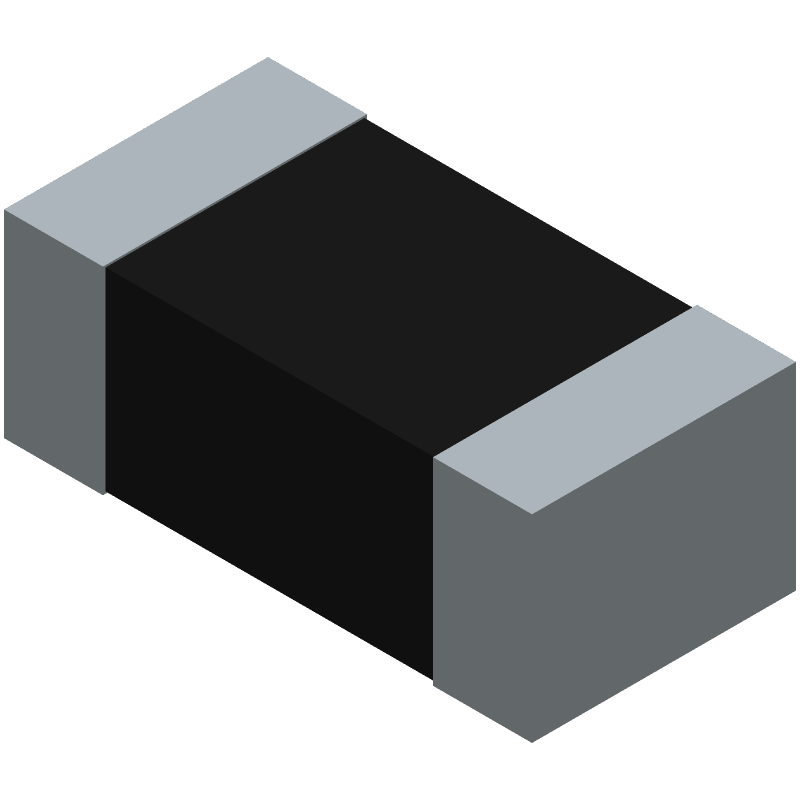

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WR06X1801FTL by Walsin Technology Corporation
Results Overview of WR06X1801FTL by Walsin Technology Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
WR06X1801FTL Information
WR06X1801FTL by Walsin Technology Corporation is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WR06X1801FTL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58Y7276
|
Newark | Surface Mount Chip Resistor, Wr06 Series, 1.8 Kohm, 100 Mw, 1%, 75 V, 0603 [1608 Metric] Rohs Compliant: Yes |WALSIN WR06X1801FTL RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0010 / $0.0020 | Buy Now |
|
DISTI #
68Y8455
|
Newark | Surface Mount Chip Resistor, Wr06 Series, 1.8 Kohm, 100 Mw, 1%, 75 V, 0603 [1608 Metric] Rohs Compliant: Yes |WALSIN WR06X1801FTL RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0020 / $0.0100 | Buy Now |
|
DISTI #
1292-WR06X1801FTLCT-ND
|
DigiKey | RES 1.8K OHM 1% 1/10W 0603 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4980 In Stock |
|
$0.0011 / $0.1000 | Buy Now |
|
DISTI #
791-WR06X1801FTL
|
Mouser Electronics | Thick Film Resistors - SMD 0603 1K80 1% Lead Free RoHS: Compliant | 46690 |
|
$0.0010 / $0.1000 | Buy Now |
|
|
Bristol Electronics | 16049 |
|
RFQ | ||
|
DISTI #
WR06X1801FTL
|
TME | Resistor: thick film, 0603, 1.8kΩ, 100mW, ±1%, 100ppm/°C Min Qty: 1 | 93470 |
|
$0.0011 / $0.0877 | Buy Now |
|
DISTI #
WR06X1801FTL
|
IBS Electronics | RES THICK FILM 0603 1.8K OHM 1% 0.1W(1/10W) ±, 100PPM/C PAD SMD T/R Min Qty: 50000 Package Multiple: 1 | 0 |
|
$0.0008 / $0.0010 | Buy Now |
Part Details for WR06X1801FTL
WR06X1801FTL CAD Models
WR06X1801FTL Part Data Attributes
|
|
WR06X1801FTL
Walsin Technology Corporation
Buy Now
Datasheet
|
Compare Parts:
WR06X1801FTL
Walsin Technology Corporation
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WALSIN TECHNOLOGY CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | Walsin Technology Corporation | |
| Additional Feature | FLAME PROOF, LASER TRIMMABLE | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 1800 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
Alternate Parts for WR06X1801FTL
This table gives cross-reference parts and alternative options found for WR06X1801FTL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of WR06X1801FTL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RC0603FR-101K8L | YAGEO Corporation | $0.0085 | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP | WR06X1801FTL vs RC0603FR-101K8L |
| CRCW06031K80FKEA | Vishay Intertechnologies | $0.0125 | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE AND ROHS COMPLIANT | WR06X1801FTL vs CRCW06031K80FKEA |
| CRCW06031K80FKTABC | Vishay Intertechnologies | $0.0175 | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | WR06X1801FTL vs CRCW06031K80FKTABC |
| CR0603-16W-1801FT | VENKEL LTD | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.063W, 1800ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 0603 | WR06X1801FTL vs CR0603-16W-1801FT |
| RTT031801FP4 | Ralec | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, | WR06X1801FTL vs RTT031801FP4 |
| 232270481802L | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | WR06X1801FTL vs 232270481802L |
| CR0603-10W-1801FT-13 | VENKEL LTD | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, -100,100ppm/Cel, 0603, | WR06X1801FTL vs CR0603-10W-1801FT-13 |
| RC0603FR-131K8P | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 150ppm/Cel, Surface Mount, 0603, CHIP | WR06X1801FTL vs RC0603FR-131K8P |
| RMCF0603FG1K80 | SEI Stackpole Electronics Inc | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT | WR06X1801FTL vs RMCF0603FG1K80 |
| RC0603FR-131K8L | YAGEO Corporation | Check for Price | Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 75V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP | WR06X1801FTL vs RC0603FR-131K8L |
WR06X1801FTL Frequently Asked Questions (FAQ)
-
The recommended land pattern for WR06X1801FTL is a rectangular pad with a size of 0.5mm x 0.5mm, with a non-solder mask defined (NSMD) pad shape.
-
To handle thermal management, ensure good thermal conductivity between the component and the PCB by using a thermal via or a thermal pad, and consider using a heat sink or a thermal interface material if necessary.
-
The maximum allowable voltage derating for WR06X1801FTL is 80% of the rated voltage, but it's recommended to consult with the manufacturer or a qualified engineer for specific derating guidelines.
-
Yes, WR06X1801FTL is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the component's self-resonant frequency and ensure proper impedance matching to avoid signal degradation.
-
To ensure reliability in a humid environment, consider applying a conformal coating to the component, and ensure the PCB is designed with moisture-resistant materials and a robust cleaning process.
