W92-X112-3 Information
W92-X112-3 by TE Connectivity is a Circuit Breaker.
Circuit Breaker are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| PTMUX1123DGKR | Texas Instruments | 5-V, low-leakage-Current, 1:1 (SPST) 2-channel, Precision Switches (active high + active low) | |
| TMUX1123DGKR | Texas Instruments | 5-V, low-leakage-Current, 1:1 (SPST) 2-channel, Precision Switches (active high + active low) 8-VSSOP -40 to 125 | |
| TMUX1122DGKR | Texas Instruments | 5-V, Low-Leakage-Current, 1:1 (SPST) 2-Channel, Precision Switches (active low) 8-VSSOP -40 to 125 |
Price & Stock for W92-X112-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
17M3391
|
Newark | Circuit Breaker, Hydromagnetic, 2P, 277V, 3A, Product Range:W9 Series, Current Rating:3A, No. Of Poles:2 Pole, Input Voltage Vac:277V, Interrupting Capacity:5Ka, Trip Time:20S, Dielectric Strength:1.5Kv, Operating Voltage:277V Rohs Compliant: Yes |Potter&brumfield Te Connectivity W92-X112-3 RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$119.2500 | Buy Now |
|
DISTI #
PB1398-ND
|
DigiKey | CIR BRKR MAG-HYDR 3A 277VAC Min Qty: 1 Lead time: 24 Weeks Container: Bulk |
36 In Stock |
|
$132.8890 / $215.0900 | Buy Now |
|
DISTI #
7-1393254-6
|
Avnet Americas | - Trays (Alt: 7-1393254-6) RoHS: Compliant Min Qty: 72 Package Multiple: 72 Lead time: 22 Weeks, 0 Days Container: Tray | 0 |
|
$128.0177 / $140.4849 | Buy Now |
|
DISTI #
655-W92-X112-3
|
Mouser Electronics | Circuit Breakers 3 AMP 277VAC TOGGLE 2 POLE RoHS: Compliant | 50 |
|
$126.7000 / $150.5700 | Buy Now |
|
DISTI #
71998379
|
RS | W92-X112-3=M6/M7/M9/W6/W7 Min Qty: 72 Package Multiple: 1 Container: Bulk | 0 |
|
$139.5100 / $174.3900 | RFQ |
|
|
Onlinecomponents.com | Circuit Breaker Hydraulic Magnetic 2Pole 3A 277VAC RoHS: Compliant | 0 |
|
$129.7900 / $364.9000 | Buy Now |
|
DISTI #
7-1393254-6
|
TTI | Circuit Breakers W92-X112-3 M6/M7/M9/W6/W7 Min Qty: 72 Package Multiple: 12 Container: Tray |
Americas - 0 Limited Supply - Call TTI |
|
$123.0000 | Buy Now |
|
DISTI #
000000000000268126
|
Sager | Circuit Breakers 3 AMP 277VAC TOGGLE 2 POLE Min Qty: 72 | 0 |
|
$168.9300 | Buy Now |
|
|
Master Electronics | Circuit Breaker Hydraulic Magnetic 2Pole 3A 277VAC RoHS: Compliant | 0 |
|
$129.7900 / $364.9000 | Buy Now |
Part Details for W92-X112-3

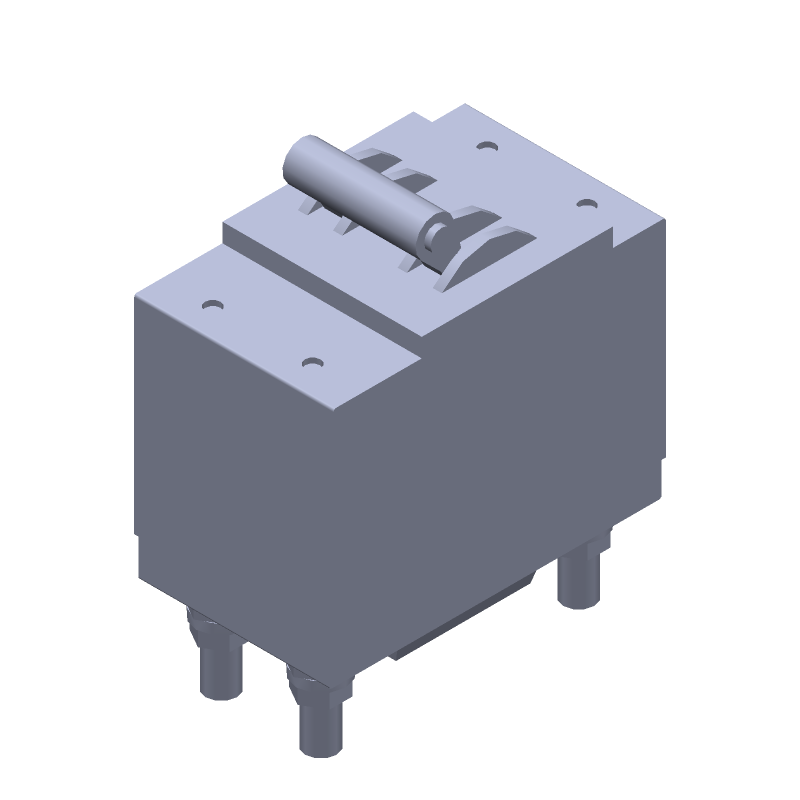

W92-X112-3 CAD Models
W92-X112-3 Part Data Attributes
|
|
W92-X112-3
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
W92-X112-3
TE Connectivity
MAGNETIC CIRCUIT BREAKER
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Type | TOGGLE | |
| Body Breadth | 38.1 mm | |
| Body Height | 46.86 mm | |
| Body Length or Diameter | 63.5 mm | |
| Circuit Function | SERIES TRIP | |
| Circuit Protection Type | MAGNETIC CIRCUIT BREAKER | |
| Mounting Feature | PANEL MOUNT | |
| Number of Poles | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Rated Breaking Capacity | 5000 A | |
| Rated Current | 3 A | |
| Rated Voltage(AC) | 277 V | |
| Surface Mount | NO | |
| Terminal Shape | STUD | |
| Trip Time or Delay | 2.2 s |
