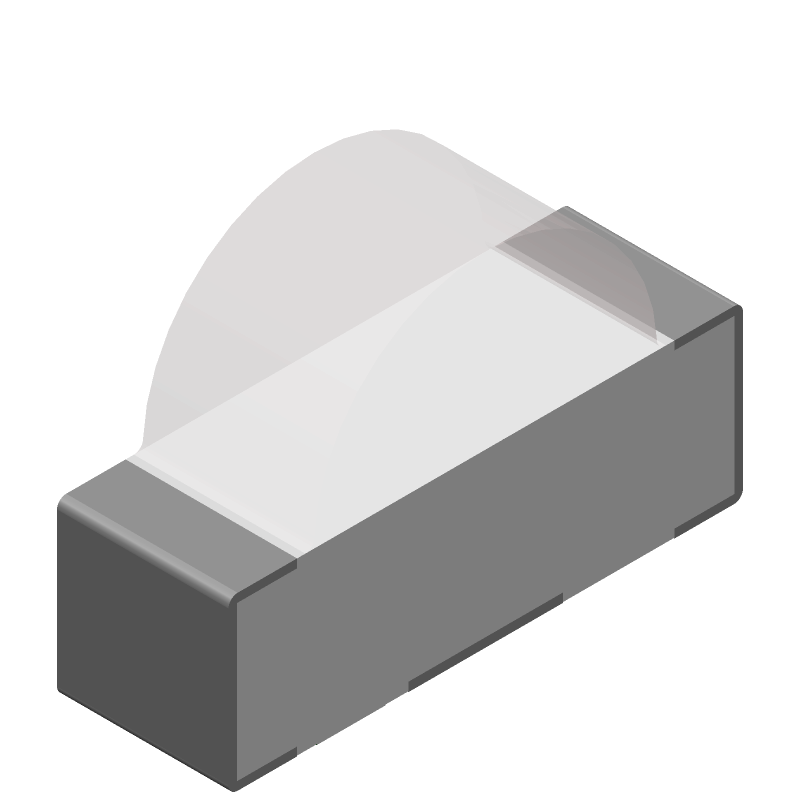

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VSMG10850 by Vishay Intertechnologies
Results Overview of VSMG10850 by Vishay Intertechnologies
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
VSMG10850 Information
VSMG10850 by Vishay Intertechnologies is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for VSMG10850
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69W0256
|
Newark | Ir Emitter, 850Nm, Smd, Viewing Angle:150°, Diode Case Style:-, Forward Current If(Av):65Ma, Forward Voltage Vf Max:1.9V, Rise Time:20Ns, Fall Time Tf:20Ns, Operating Temperature Min:-40°C, Operating Temperature Max:85°C Rohs Compliant: Yes |Vishay VSMG10850 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 35 |
|
$0.0400 | Buy Now |
|
DISTI #
V72:2272_09170390
|
Arrow Electronics | Infrared Emitter 850nm 3.25mW/sr Rectangular Right Angle 2-Pin SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 1853 Container: Cut Strips | Americas - 7 |
|
$0.0207 / $0.1029 | Buy Now |
Part Details for VSMG10850
VSMG10850 CAD Models
VSMG10850 Part Data Attributes
|
|
VSMG10850
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VSMG10850
Vishay Intertechnologies
Infrared LED,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Vishay | |
| Optoelectronic Device Type | INFRARED LED |
VSMG10850 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the VSMG10850 is a pad size of 1.3 mm x 0.8 mm with a 0.5 mm spacing between pads. A larger pad size may be required for high-power applications.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the component.
-
The maximum operating temperature range for the VSMG10850 is -55°C to 150°C. However, the device may experience reduced performance or reliability if operated outside the recommended temperature range of -40°C to 125°C.
-
The VSMG10850 is not designed for use in high-humidity environments. If you need to operate the device in a humid environment, consider using a moisture-resistant coating or conformal coating to protect the device.
-
To prevent electrostatic discharge (ESD) damage, handle the VSMG10850 with an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or leads with your bare hands.
