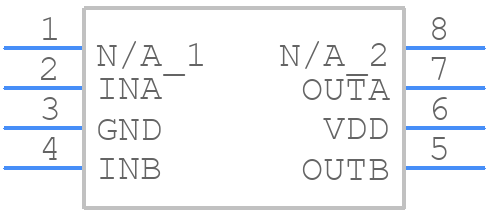

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UCC37324DG4 by Texas Instruments
Results Overview of UCC37324DG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UCC37324DG4 Information
UCC37324DG4 by Texas Instruments is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for UCC37324DG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 1384 |
|
RFQ |
Part Details for UCC37324DG4
UCC37324DG4 CAD Models
UCC37324DG4 Part Data Attributes
|
|
UCC37324DG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC37324DG4
Texas Instruments
4-A/4-A dual-channel gate driver with non-inverting inputs 8-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| High Side Driver | NO | |
| Input Characteristics | STANDARD | |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 4 A | |
| Output Peak Current Limit-Nom | 4 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.75 mA | |
| Supply Voltage-Max | 15 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 14 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Turn-off Time | 0.05 µs | |
| Turn-on Time | 0.04 µs | |
| Width | 3.9 mm |
Alternate Parts for UCC37324DG4
This table gives cross-reference parts and alternative options found for UCC37324DG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCC37324DG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UCC37323DR | Texas Instruments | $0.7984 | 4-A/4-A dual-channel gate driver with inverting inputs 8-SOIC 0 to 70 | UCC37324DG4 vs UCC37323DR |
| UCC27423D | Texas Instruments | $0.9573 | 4-A/4-A dual-channel gate driver with 5-V UVLO, enable, and inverting inputs 8-SOIC -40 to 105 | UCC37324DG4 vs UCC27423D |
| UCC37324D | Texas Instruments | $1.3513 | 4-A/4-A dual-channel gate driver with non-inverting inputs 8-SOIC 0 to 70 | UCC37324DG4 vs UCC37324D |
| UCC27424DG4 | Texas Instruments | Check for Price | Dual 4A MOSFET Driver 8-SOIC -40 to 105 | UCC37324DG4 vs UCC27424DG4 |
| UCC37324DRG4 | Texas Instruments | Check for Price | Dual 4 A Peak High Speed Low-Side Power MOSFET Drivers 8-SOIC 0 to 70 | UCC37324DG4 vs UCC37324DRG4 |
| UCC27423DG4 | Texas Instruments | Check for Price | Dual 4-A MOSFET Driver with Enable 8-SOIC -40 to 105 | UCC37324DG4 vs UCC27423DG4 |
| UCC27423DRG4 | Texas Instruments | Check for Price | Dual 4-A MOSFET Driver with Enable 8-SOIC -40 to 105 | UCC37324DG4 vs UCC27423DRG4 |
