TZX5V1B-TAP Information
TZX5V1B-TAP by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TZX5V1B-TAP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20H7297
|
Newark | Zener Diode, 500Mw, 5.1V, Do-35, Zener Voltage Nom:5.1V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:175°C, Diode Mounting:Through Hole, Product Range:Tzx Series, Qualification:- Rohs Compliant: Yes |Vishay TZX5V1B-TAP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1666 |
|
$0.0050 | Buy Now |
|
DISTI #
20H7297
|
Avnet Americas | ZENER DIODE DO35 - Product that comes on tape, but is not reeled (Alt: 20H7297) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 1 Days Container: Ammo Pack | 1666 Partner Stock |
|
$0.0630 | Buy Now |
|
DISTI #
TZX5V1B-TAP
|
Avnet Americas | ZENER DIODE DO35 - Ammo Pack (Alt: TZX5V1B-TAP) RoHS: Compliant Min Qty: 30000 Package Multiple: 30000 Lead time: 9 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0199 / $0.0215 | Buy Now |
|
DISTI #
78-TZX5V1B-TAP
|
Mouser Electronics | Zener Diodes 5.1 Volt 0.5W 5% RoHS: Compliant | 24001 |
|
$0.0220 / $0.1300 | Buy Now |
|
DISTI #
V72:2272_17659421
|
Arrow Electronics | Diode Zener Single 5V 2% 500mW 2-Pin DO-35 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 1717 Container: Cut Strips | Americas - 33753 |
|
$0.0036 / $0.0052 | Buy Now |
|
DISTI #
31267633
|
Verical | Diode Zener Single 5V 2% 500mW 2-Pin DO-35 Ammo Min Qty: 1725 Package Multiple: 1 Date Code: 1717 | Americas - 33753 |
|
$0.0036 | Buy Now |
|
DISTI #
TZX5V1B-TAP
|
EBV Elektronik | ZENER DIODE DO35 (Alt: TZX5V1B-TAP) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TZX5V1B-TAP

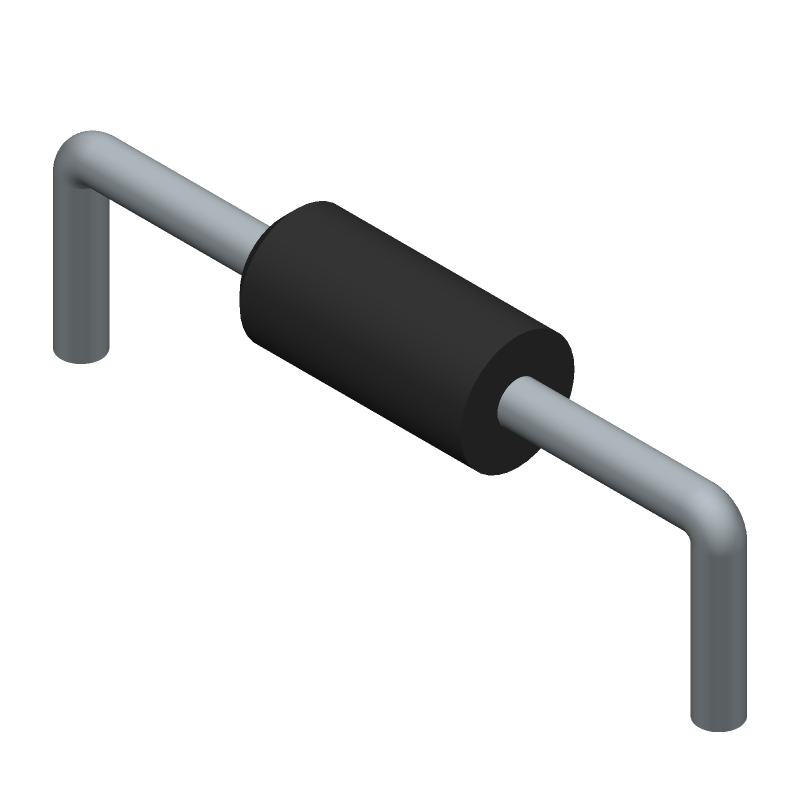

TZX5V1B-TAP CAD Models
TZX5V1B-TAP Part Data Attributes
|
|
TZX5V1B-TAP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TZX5V1B-TAP
Vishay Intertechnologies
Zener Diode, 5V V(Z), 2%, 0.5W, Silicon, Unidirectional, DO-35, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LOW NOISE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 100 Ω | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-XALF-W2 | |
| JESD-609 Code | e2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | Tin/Silver (Sn96.5Ag3.5) | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
