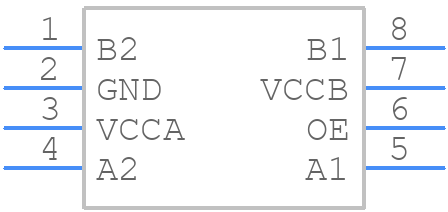

Part Symbol
-
Footprint
-

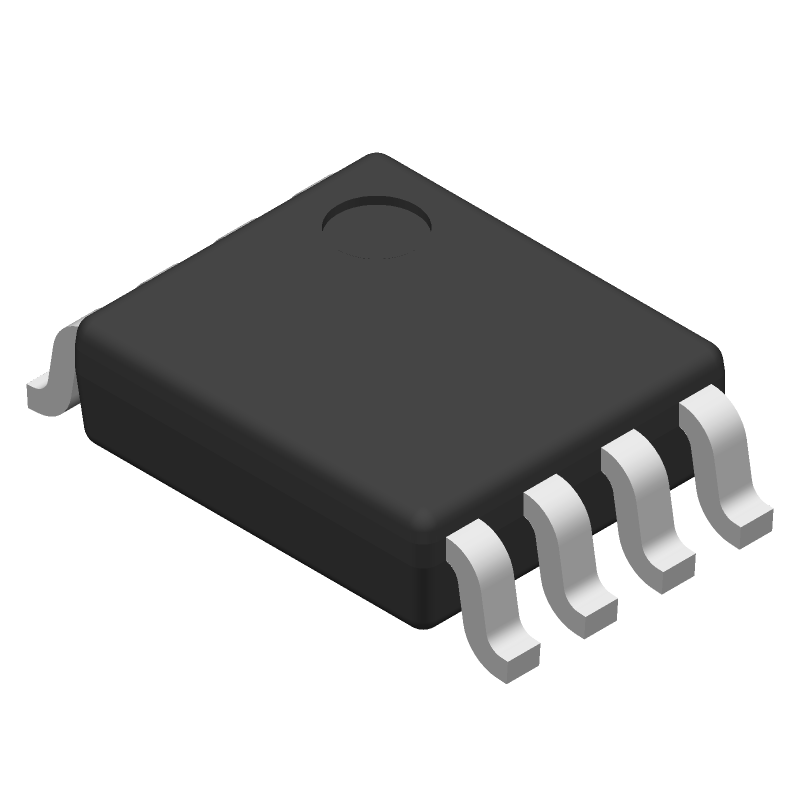

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TXS0102DCUTG4 by Texas Instruments
Results Overview of TXS0102DCUTG4 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
TXS0102DCUTG4 Information
TXS0102DCUTG4 by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TXS0102DCUTG4 | Texas Instruments | 2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application 8-VSSOP -40 to 85 |
Price & Stock for TXS0102DCUTG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TXS0102DCUTG4
|
Mouser Electronics | Translation - Voltage Levels 2B Bidir Vltg-Level Translator ALT 595-TXS0102DCUT RoHS: Compliant | 24039 |
|
$0.4230 / $0.9900 | Buy Now |
|
|
Vyrian | Interface ICs | 122472 |
|
RFQ | |
|
|
Win Source Electronics | IC VOLT-LEVEL TRANSLATOR US8 | 85850 |
|
$0.0833 / $0.1076 | Buy Now |
Part Details for TXS0102DCUTG4
TXS0102DCUTG4 CAD Models
TXS0102DCUTG4 Part Data Attributes
|
|
TXS0102DCUTG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TXS0102DCUTG4
Texas Instruments
2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application 8-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, VSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Delay-Max | 260 ns | |
| Interface IC Type | VOLTAGE LEVEL TRANSLATOR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 2.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 mm | |
| Supply Current-Max | 0.01 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
TXS0102DCUTG4 Frequently Asked Questions (FAQ)
-
The TXS0102DCUTG4 can support data rates up to 100 Mbps.
-
Yes, the TXS0102DCUTG4 can be used in a multi-point bus configuration, but it requires external resistors to terminate the bus.
-
The TXS0102DCUTG4 has built-in hot-swapping capability, which allows devices to be connected or disconnected without damaging the IC or other devices on the bus.
-
The maximum cable length that can be used with the TXS0102DCUTG4 depends on the specific application and the type of cable used, but a general guideline is to keep the cable length under 10 meters.
-
Yes, the TXS0102DCUTG4 can be used in a 5V system, but it requires an external voltage regulator to step down the voltage to 3.3V or 2.5V, depending on the specific application.
