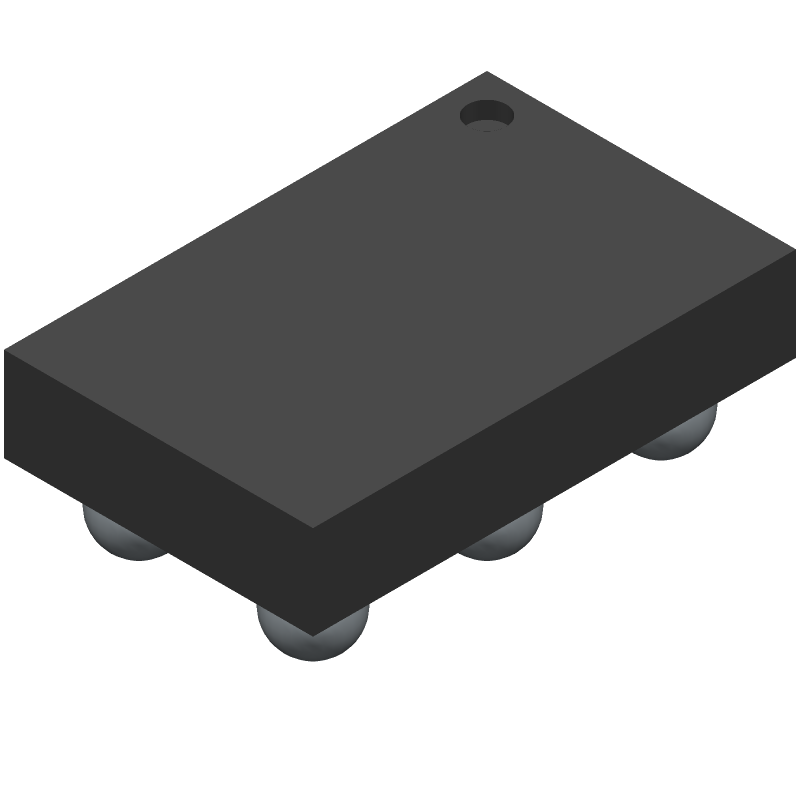

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TXS0101YZPR by Texas Instruments
Results Overview of TXS0101YZPR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
TXS0101YZPR Information
TXS0101YZPR by Texas Instruments is a Level Translator.
Level Translators are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TXS0101YZPR | Texas Instruments | 1-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application 6-DSBGA -40 to 85 |
Price & Stock for TXS0101YZPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-24805-1-ND
|
DigiKey | IC TRANSLTR BIDIRECTIONAL 6DSBGA Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3748 In Stock |
|
$0.2277 / $0.5500 | Buy Now |
|
DISTI #
595-TXS0101YZPR
|
Mouser Electronics | Translation - Voltage Levels 1B Bidir Vltg-Level Translator RoHS: Compliant | 5796 |
|
$0.2220 / $1.1800 | Buy Now |
|
|
Bristol Electronics | 579 |
|
RFQ | ||
|
|
Rochester Electronics | TXS0101 1-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application RoHS: Compliant Status: Active Min Qty: 1 | 223 |
|
$0.1789 / $0.2885 | Buy Now |
|
|
LCSC | 2.3V5.5V 1 1 1.65V3.6V 24Mbps DSBGA-6(0.9x1.4) Translators Level Shifters ROHS | 655 |
|
$0.2642 / $0.4468 | Buy Now |
Part Details for TXS0101YZPR
TXS0101YZPR CAD Models
TXS0101YZPR Part Data Attributes
|
|
TXS0101YZPR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TXS0101YZPR
Texas Instruments
1-bit bidirectional voltage-level shifter for open-drain and push-pull applications 6-DSBGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | IT ALSO HAS PUSH-PULL OUTPUTS | |
| Delay-Max | 198 ns | |
| Interface IC Type | VOLTAGE LEVEL TRANSLATOR | |
| JESD-30 Code | R-XBGA-B6 | |
| JESD-609 Code | e1 | |
| Length | 1.388 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | UNSPECIFIED | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA6,2X3,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.5 mm | |
| Supply Current-Max | 0.0144 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 1.8 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 2.3 V | |
| Supply Voltage1-Nom | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 0.888 mm |
