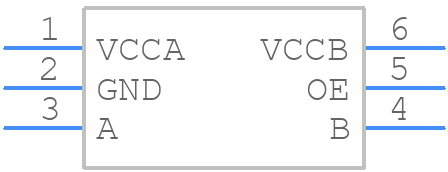

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TXS0101DBVR by Texas Instruments
Results Overview of TXS0101DBVR by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
TXS0101DBVR Information
TXS0101DBVR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TXS0101DBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH8306
|
Newark | Volt Level Translator, 1Bit, Sot-23-6, No. Of Inputs:1, Output Current:50Ma, Propagation Delay:4.6Ns, No. Of Pins:6Pins, Logic Case Style:Sot-23, Supply Voltage Min:1.65V, Supply Voltage Max:5.5V, Operating Temperature Min:-40°C, Rohs Compliant: Yes |Texas Instruments TXS0101DBVR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 730 |
|
$0.3170 / $0.5660 | Buy Now |
|
DISTI #
296-22863-1-ND
|
DigiKey | IC TRANSLATOR BIDIR SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
5130 In Stock |
|
$0.1831 / $0.4600 | Buy Now |
|
DISTI #
595-TXS0101DBVR
|
Mouser Electronics | Translation - Voltage Levels 1B Bidirec Vltg- Lev Translator A 595-TXS0101DBVT RoHS: Compliant | 1941 |
|
$0.1840 / $0.4400 | Buy Now |
|
DISTI #
V72:2272_07427399
|
Arrow Electronics | Voltage Level Translator 1-CH Bidirectional 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2209 Container: Cut Strips | Americas - 196 |
|
$0.1773 / $0.2792 | Buy Now |
|
DISTI #
62361893
|
Verical | Voltage Level Translator 1-CH Bidirectional 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 34 Package Multiple: 1 Date Code: 2209 | Americas - 196 |
|
$0.1773 / $0.2218 | Buy Now |
|
|
Quest Components | INTERFACE CIRCUIT, PDSO6 | 33 |
|
$0.2877 / $0.9590 | Buy Now |
|
|
Quest Components | INTERFACE CIRCUIT, PDSO6 | 12 |
|
$0.4795 / $0.9590 | Buy Now |
|
|
Rochester Electronics | TXS0101 1-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application RoHS: Compliant Status: Active Min Qty: 1 | 270 |
|
$0.1438 / $0.2319 | Buy Now |
|
DISTI #
SMC-TXS0101DBVR
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 457 |
|
RFQ | |
|
DISTI #
TXS0101DBVR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2175 |
|
$0.1580 / $0.3720 | Buy Now |
Part Details for TXS0101DBVR
TXS0101DBVR CAD Models
TXS0101DBVR Part Data Attributes
|
|
TXS0101DBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TXS0101DBVR
Texas Instruments
1-bit bidirectional voltage-level shifter for open-drain and push-pull applications 6-SOT-23 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | IT ALSO HAS PUSH-PULL OUTPUTS | |
| Delay-Max | 198 ns | |
| Interface IC Type | VOLTAGE LEVEL TRANSLATOR | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max | 0.0144 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 1.8 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 2.3 V | |
| Supply Voltage1-Nom | 2.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
TXS0101DBVR Frequently Asked Questions (FAQ)
-
The TXS0101DBVR can support data rates up to 100 Mbps.
-
Yes, the TXS0101DBVR can be used in a voltage translation application where the input voltage is higher than the output voltage, but the output voltage must be at least 1.2V to ensure proper operation.
-
To ensure proper operation, the TXS0101DBVR requires a stable power supply with a minimum voltage of 1.2V and a maximum voltage of 3.6V. Additionally, decoupling capacitors should be placed close to the power pins to filter out noise and ensure stable operation.
-
The TXS0101DBVR can drive capacitive loads up to 100 pF.
-
Yes, the TXS0101DBVR can be used in a bidirectional voltage translation application, but it requires an external direction control signal to control the direction of data flow.
