Connectors / Headers and Edge Type Connectors / TSW-120-07-L-D
Datasheets
TSW-120-07-L-D by: Samtec Inc

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Part Details for TSW-120-07-L-D by Samtec Inc

Results Overview of TSW-120-07-L-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Electronic Manufacturing

TSW-120-07-L-D Information

TSW-120-07-L-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TSW-120-07-L-D

Part # Distributor Description Stock Price Buy
DISTI # 12P2470
Newark Header, 2.54Mm, Though Hole Vertical, 40 Position, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Through Hole, Product Range:Tsw Series Rohs Compliant: Yes |Samtec TSW-120-07-L-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 3000
  • 1 $2.5200
  • 10 $2.3300
  • 25 $2.2000
  • 50 $2.1100
  • 100 $2.0300
  • 250 $1.8500
  • 500 $1.7000
$1.7000 / $2.5200 Buy Now
DISTI # SAM1030-20-ND
DigiKey CONN HEADER VERT 40POS 2.54MM Min Qty: 1 Lead time: 2 Weeks Container: Bulk 544
In Stock
  • 1 $2.9900
  • 10 $2.5430
  • 100 $2.1612
  • 500 $1.9695
$1.9695 / $2.9900 Buy Now
DISTI # TSW-120-07-L-D
Avnet Americas Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole, TSW Series - Bulk (Alt: TSW-120-07-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Bulk 95 Factory Stock
  • 1 $2.4010
  • 10 $2.2717
  • 30 $1.9691
  • 50 $1.9589
  • 100 $1.9488
$1.9488 / $2.4010 Buy Now
DISTI # 200-TSW12007LD
Mouser Electronics Headers & Wire Housings Classic PCB Header Strips RoHS: Compliant 338
  • 1 $2.6900
  • 10 $2.5400
  • 100 $2.1600
  • 250 $2.1400
  • 500 $1.7700
  • 1,000 $1.6100
  • 2,500 $1.3800
  • 5,000 $1.2500
$1.2500 / $2.6900 Buy Now
Onlinecomponents.com Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Bag RoHS: Compliant 942 In Stock
  • 10 $2.6200
  • 100 $2.1500
  • 250 $2.1200
  • 500 $1.9300
  • 1,000 $1.9200
  • 2,500 $1.9100
  • 5,000 $1.9000
  • 7,500 $1.8900
$1.8900 / $2.6200 Buy Now
DISTI # 51692253
Verical Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 1811 Americas - 940
  • 20 $3.4060
  • 100 $2.7950
  • 250 $2.7560
  • 500 $2.5090
  • 1,000 $2.4960
$2.4960 / $3.4060 Buy Now
DISTI # 85039750
Verical Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 4 Package Multiple: 1 Americas - 595
  • 4 $2.4500
$2.4500 Buy Now
Bristol Electronics   2260
RFQ
Quest Components HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL 988
  • 1 $4.4100
  • 369 $2.4255
  • 826 $2.2050
$2.2050 / $4.4100 Buy Now
Quest Components HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL 136
  • 1 $6.0000
  • 18 $4.0000
  • 64 $3.7000
$3.7000 / $6.0000 Buy Now
Quest Components HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL 39
  • 1 $1.8375
  • 4 $1.6905
  • 16 $1.4700
$1.4700 / $1.8375 Buy Now
DISTI # TSW12007LD
TTI Headers & Wire Housings RoHS: Compliant pbFree: Pb-Free Min Qty: 3 Package Multiple: 1 Container: Bulk Americas - 0
  • 3 $2.3100
  • 25 $2.0700
  • 100 $1.9500
  • 250 $1.9000
  • 500 $1.7400
  • 1,000 $1.4400
  • 2,500 $1.2100
$1.2100 / $2.3100 Buy Now
DISTI # 5cd92ed4cd7c1c4c388b518a
Samtec Classic PCB Header Strips, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 2999
  • 1 $2.4500
  • 25 $2.3600
  • 50 $2.2500
  • 100 $2.0900
  • 500 $1.7300
  • 1,000 $1.4400
  • 2,500 $1.2000
  • 5,000 $0.9800
$0.9800 / $2.4500 Buy Now
Ameya Holding Limited CONN HEADER 40POS .100" DL GOLD 60
Buy Now RFQ
DISTI # 000000000000064859
Sager Headers & Wire Housings Classic PCB Header Strips, 0.100 pitch Min Qty: 1 2999
  • 1 $2.4500
  • 25 $2.3600
  • 50 $2.2500
  • 100 $2.0900
  • 500 $1.7300
  • 1,000 $1.4400
$1.4400 / $2.4500 Buy Now
DISTI # TSW-120-07-L-D
Avnet Abacus Pin Header BoardtoBoard 254 mm 2 Rows 40 Contacts Through Hole TSW Series (Alt: TSW-120-07-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Conn Unshrouded Header HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole Bag RoHS: Compliant 942 In Stock
  • 10 $2.6200
  • 100 $2.1500
  • 250 $2.1200
  • 500 $1.9300
  • 1,000 $1.9200
  • 2,500 $1.9100
  • 5,000 $1.9000
  • 7,500 $1.8900
$1.8900 / $2.6200 Buy Now
Vyrian Connectors 352
RFQ

Part Details for TSW-120-07-L-D

TSW-120-07-L-D CAD Models

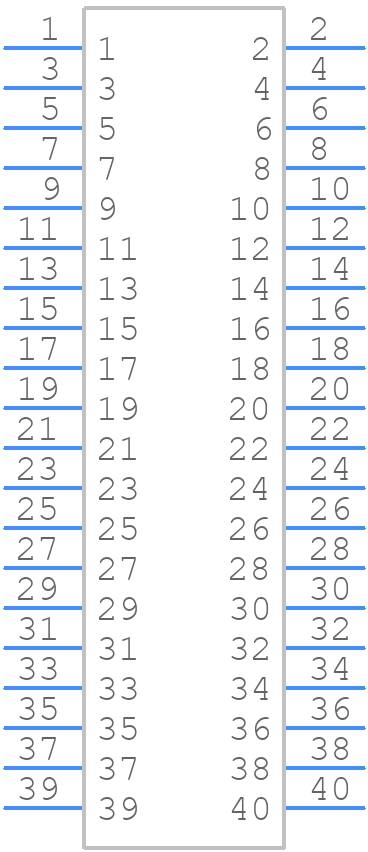

  • Part Symbol

    Part Symbol

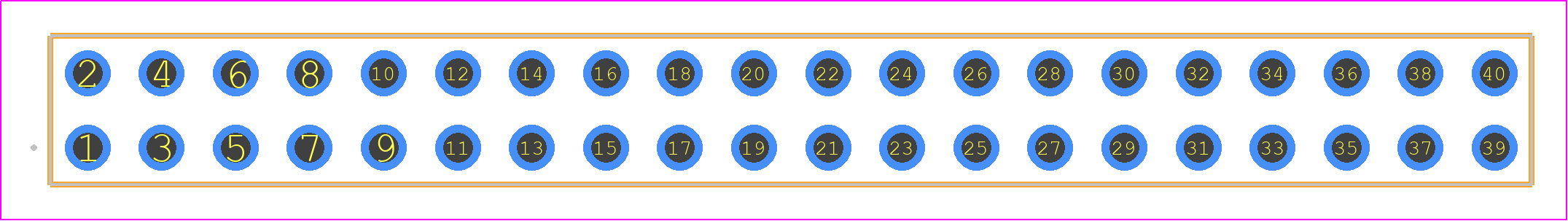

  • Footprint

    footprint

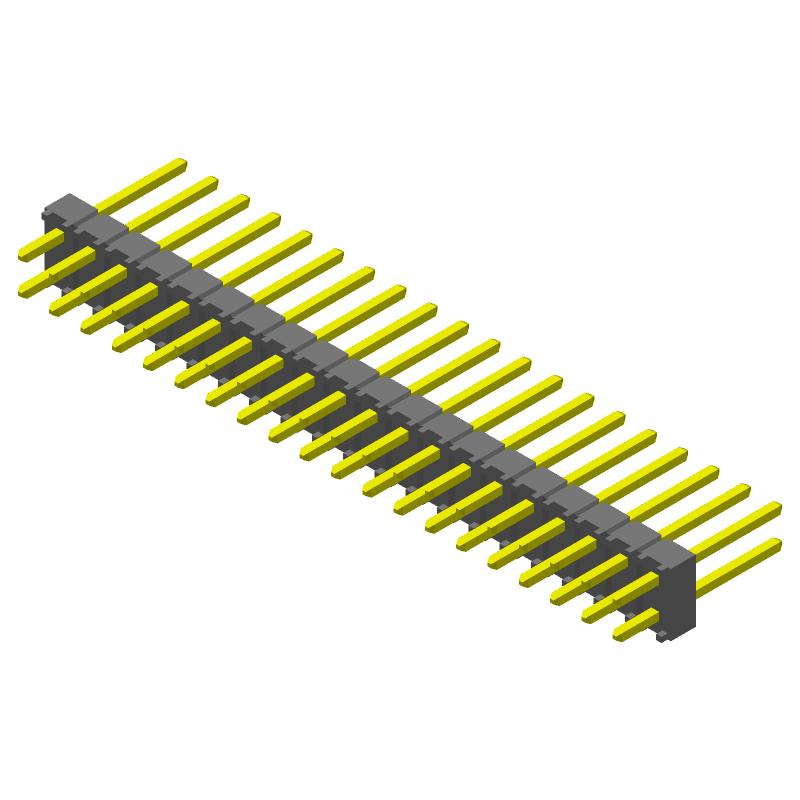

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TSW-120-07-L-D Part Data Attributes

Parametric Data
TSW-120-07-L-D Samtec Inc
Buy Now Datasheet
Compare Parts:
TSW-120-07-L-D Samtec Inc Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature E.L.P.
Body Breadth 0.2 inch
Body Depth 0.1 inch
Body Length 2 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 10u inch
Rated Current (Signal) 5.2 A
Reference Standard UL
Terminal Length 0.1 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0

Alternate Parts for TSW-120-07-L-D

This table gives cross-reference parts and alternative options found for TSW-120-07-L-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSW-120-07-L-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TSHS-120-D-08-A-H-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-08-A-H-LF
HTSW-120-07-T-D Samtec Inc $1.7710 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE TSW-120-07-L-D vs HTSW-120-07-T-D
HTSW-120-27-F-D Samtec Inc $3.4345 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE TSW-120-07-L-D vs HTSW-120-27-F-D
TSHS-120-D-32-A-T Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle TSW-120-07-L-D vs TSHS-120-D-32-A-T
TSHS-120-D-14-A-GT-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-14-A-GT-LF
PH2-230/300-409 On-Shore Technology Inc Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TSW-120-07-L-D vs PH2-230/300-409
TSHS-120-D-28-A-T-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-28-A-T-LF
TSHS-120-D-36-A-G-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-36-A-G-LF
TSW-120-11-G-D Samtec Inc $3.7932 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT TSW-120-07-L-D vs TSW-120-11-G-D
TSW-120-12-S-D Samtec Inc $5.4118 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT TSW-120-07-L-D vs TSW-120-12-S-D
Part Number Manufacturer Composite Price Description Compare
CH220F2G-E2D-BA Teka Interconnection Systems Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs CH220F2G-E2D-BA
TSHS-120-D-24-A-T-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-24-A-T-LF
TSHS-120-D-26-A-GT Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle TSW-120-07-L-D vs TSHS-120-D-26-A-GT
CH220E2G-EPD-AA Teka Interconnection Systems Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs CH220E2G-EPD-AA
TSW-120-27-F-D Samtec Inc $3.8493 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT TSW-120-07-L-D vs TSW-120-27-F-D
TSW-120-09-T-D-LC Samtec Inc $3.4532 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TSW-120-07-L-D vs TSW-120-09-T-D-LC
TSW-120-26-F-D Samtec Inc $3.2486 Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT TSW-120-07-L-D vs TSW-120-26-F-D
TSHS-120-D-34-A-H-LF Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle TSW-120-07-L-D vs TSHS-120-D-34-A-H-LF
TSHS-120-D-36-A-G Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle TSW-120-07-L-D vs TSHS-120-D-36-A-G
TSHS-120-D-36-A-GT Major League Electronics Check for Price Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle TSW-120-07-L-D vs TSHS-120-D-36-A-GT

TSW-120-07-L-D Related Parts

TSW-120-07-L-D Frequently Asked Questions (FAQ)

  • The recommended torque is 2-3 in-lbs (0.2-0.3 Nm) for the screws that hold the connector in place.

  • Yes, the TSW-120-07-L-D is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.

  • The maximum operating temperature for the TSW-120-07-L-D is 125°C (257°F).

  • Yes, the TSW-120-07-L-D is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The mating cycle life of the TSW-120-07-L-D is 500 cycles minimum.
