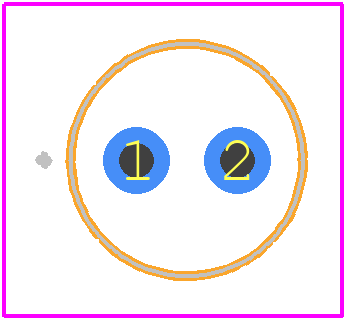

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSAL6400 by Vishay Intertechnologies
Results Overview of TSAL6400 by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
TSAL6400 Information
TSAL6400 by Vishay Intertechnologies is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TSAL6400
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
95B4859
|
Newark | Ir Emitter, 940Nm, T-1 3/4, Through Hole, Viewing Angle:25°, Diode Case Style:T-1 3/4 (5Mm), Forward Current If(Av):100Ma, Forward Voltage Vf Max:3V, Rise Time:15Ns, Fall Time Tf:15Ns, Operating Temperature Min:-40°C, Product Range:-Rohs Compliant: Yes |Vishay TSAL6400 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 927 |
|
$0.1300 / $0.1530 | Buy Now |
|
DISTI #
95B4859
|
Avnet Americas | IR EMITTER HIGH POWR 950NM 5MM 25DEG-e3 - Bulk (Alt: 95B4859) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk | 927 Partner Stock |
|
$0.1600 / $0.3760 | Buy Now |
|
DISTI #
TSAL6400
|
Avnet Americas | IR EMITTER HIGH POWR 950NM 5MM 25DEG-e3 - Bulk (Alt: TSAL6400) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0988 / $0.1070 | Buy Now |
|
DISTI #
782-TSAL6400
|
Mouser Electronics | Infrared Emitters 940nm,T-1.75 50mW/sr,+/-25deg. RoHS: Compliant | 29790 |
|
$0.1230 / $0.4500 | Buy Now |
|
DISTI #
V36:1790_09168904
|
Arrow Electronics | Infrared Emitter 940nm 420mW/sr Circular Top Mount 2-Pin T-1 3/4 Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2503 | Americas - 1950 |
|
$0.1035 / $0.4358 | Buy Now |
|
DISTI #
E02:0323_00193457
|
Arrow Electronics | Infrared Emitter 940nm 420mW/sr Circular Top Mount 2-Pin T-1 3/4 Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2503 | Europe - 1916 |
|
$0.1385 / $0.5067 | Buy Now |
|
DISTI #
88768115
|
Verical | Infrared Emitter 940nm 420mW/sr Circular Top Mount 2-Pin T-1 3/4 Bulk RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 2503 | Americas - 1950 |
|
$0.1035 / $0.2891 | Buy Now |
|
DISTI #
87810676
|
Verical | Infrared Emitter 940nm 420mW/sr Circular Top Mount 2-Pin T-1 3/4 Bulk RoHS: Compliant Min Qty: 105 Package Multiple: 1 Date Code: 2503 | Americas - 1890 |
|
$0.1045 / $0.2092 | Buy Now |
|
|
Future Electronics | 940 nm 100 mA �25� Through Hole High Power Infrared Emitting Diode - T-1 3/4 Min Qty: 1000 Package Multiple: 1000 |
16000 null |
|
$0.0527 / $0.0577 | Buy Now |
|
DISTI #
TSAL6400
|
TME | IR transmitter, 5mm, 940nm, blue,transparent, 160mW, 25°, THT Min Qty: 1 | 161 |
|
$0.0810 / $0.2140 | Buy Now |
Part Details for TSAL6400
TSAL6400 CAD Models
TSAL6400 Part Data Attributes
|
|
TSAL6400
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TSAL6400
Vishay Intertechnologies
Infrared LED, 5mm, 1-Element, 940nm, GREEN, PLASTIC PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | GREEN, PLASTIC PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.1 A | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Output Power-Nom | 35 mW | |
| Packing Method | BULK | |
| Peak Wavelength | 940 nm | |
| Shape | ROUND | |
| Size | 5 mm | |
| Terminal Finish | Matte Tin (Sn) |
TSAL6400 Frequently Asked Questions (FAQ)
-
The recommended storage condition for TSAL6400 is in a dry, dark place at a temperature range of -40°C to 100°C and humidity below 60%.
-
Handle the TSAL6400 by the body, avoid touching the leads or the optical surface, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
-
The maximum power dissipation of the TSAL6400 is 100 mW, and it is recommended to derate the power dissipation based on the ambient temperature.
-
The TSAL6400 is not recommended for use in high-humidity environments above 60% RH. If used in such conditions, it may lead to degradation of the device.
-
Clean the TSAL6400 using a soft brush, compressed air, or a lint-free cloth with a mild detergent. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning.
