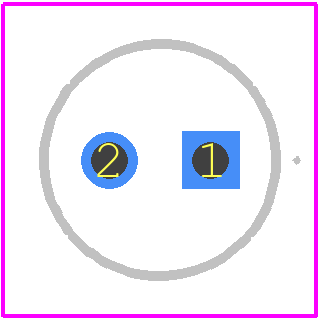

Footprint
-

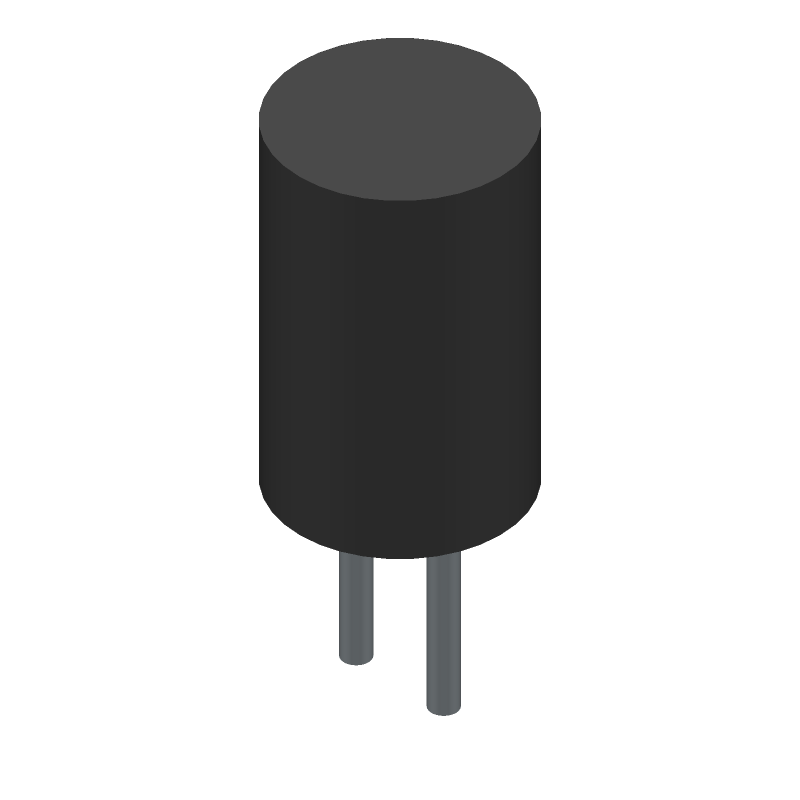

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSAL6100UL by Vishay Intertechnologies
Results Overview of TSAL6100UL by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
TSAL6100UL Information
TSAL6100UL by Vishay Intertechnologies is an Infrared LED.
Infrared LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TSAL6100UL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TSAL6100UL
|
Avnet Americas | IR EMITTER HIPOWER 950NM 5MM 10DEG UL-e3 - Bulk (Alt: TSAL6100UL) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1397 / $0.1596 | Buy Now |
|
DISTI #
78-TSAL6100UL
|
Mouser Electronics | Infrared Emitters IR EMITTER HIPOWER 950NM 5MM 10DEG UL-E3 RoHS: Compliant | 6667 |
|
$0.1520 / $0.5200 | Buy Now |
|
DISTI #
TSAL6100UL
|
TTI | Infrared Emitters IR EMITTER HIPOWER 950NM 5MM 10DEG UL-E3 RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Bulk | Americas - 0 |
|
$0.1980 / $0.2060 | Buy Now |
|
DISTI #
TSAL6100UL
|
EBV Elektronik | IR EMITTER HIPOWER 950NM 5MM 10DEG ULe3 (Alt: TSAL6100UL) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TSAL6100UL
TSAL6100UL CAD Models
TSAL6100UL Part Data Attributes
|
|
TSAL6100UL
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TSAL6100UL
Vishay Intertechnologies
Infrared LED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.40.20.00 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2016-09-25 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.1 A | |
| Forward Voltage-Max | 1.6 V | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | INFRARED LED | |
| Output Power-Nom | 40 mW | |
| Packing Method | BULK | |
| Peak Wavelength | 940 nm | |
| Reverse Voltage-Max | 5 V | |
| Semiconductor Material | GaAlAs | |
| Shape | ROUND | |
| Size | 5 mm | |
| Spectral Bandwidth | 30 m | |
| Surface Mount | NO | |
| Viewing Angle | 20 deg |
