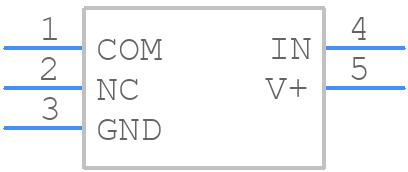

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS5A4595DCKR by Texas Instruments
Results Overview of TS5A4595DCKR by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Agriculture Technology
Medical Imaging
Telecommunications
Automotive
Education and Research
Consumer Electronics
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Communication and Networking
TS5A4595DCKR Information
TS5A4595DCKR by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TS5A4595DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TS5A4595DCKR-ND
|
DigiKey | IC SWITCH SPST-NCX1 8OHM SC70-5 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
49107 In Stock |
|
$0.1800 | Buy Now |
|
DISTI #
296-17708-1-ND
|
DigiKey | IC SWITCH SPST-NCX1 8OHM SC70-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5591 In Stock |
|
$0.1412 / $0.3600 | Buy Now |
|
DISTI #
595-TS5A4595DCKR
|
Mouser Electronics | Analog Switch ICs 8-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switc RoHS: Compliant | 4757 |
|
$0.1320 / $0.3600 | Buy Now |
|
DISTI #
V72:2272_07426873
|
Arrow Electronics | Analog Switch Single SPST 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1714 Container: Cut Strips | Americas - 1251 |
|
$0.0642 / $0.1362 | Buy Now |
|
DISTI #
86052009
|
Verical | Analog Switch Single SPST 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 2094 Package Multiple: 1 Date Code: 1101 | Americas - 33000 |
|
$0.1339 / $0.1791 | Buy Now |
|
DISTI #
86041626
|
Verical | Analog Switch Single SPST 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 2094 Package Multiple: 1 Date Code: 1001 | Americas - 6000 |
|
$0.1339 / $0.1791 | Buy Now |
|
DISTI #
86040178
|
Verical | Analog Switch Single SPST 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 2094 Package Multiple: 1 Date Code: 0701 | Americas - 6000 |
|
$0.1339 / $0.1791 | Buy Now |
|
DISTI #
86041223
|
Verical | Analog Switch Single SPST 5-Pin SC-70 T/R RoHS: Compliant Min Qty: 2094 Package Multiple: 1 Date Code: 0501 | Americas - 4107 |
|
$0.1339 / $0.1791 | Buy Now |
|
|
Rochester Electronics | TS5A4595 8-Ohm SPST 5-V/3.3-V Single-Channel Analog Switch RoHS: Compliant Status: Active Min Qty: 1 | 49107 |
|
$0.1071 / $0.1727 | Buy Now |
|
DISTI #
TS5A4595DCKR
|
TME | IC: analog switch, SPST, Ch: 1, SC70-5, 2÷5.5VDC, reel,tape Min Qty: 1 | 0 |
|
$0.1730 / $0.3030 | RFQ |
Part Details for TS5A4595DCKR
TS5A4595DCKR CAD Models
TS5A4595DCKR Part Data Attributes
|
|
TS5A4595DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TS5A4595DCKR
Texas Instruments
5-V, 1:1 (SPST), 1-channel general-purpose analog switch (active low) 5-SC70 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, SC-70, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SPST | |
| Bandwidth-Nom | 450 MHz | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | ||
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NC | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Off-state Isolation-Nom | 82 dB | |
| On-state Resistance Match-Nom | 16 Ω | |
| On-state Resistance-Max (Ron) | 16 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | COMMON OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max (Isup) | 0.0005 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 25 ns | |
| Switch-on Time-Max | 30 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
