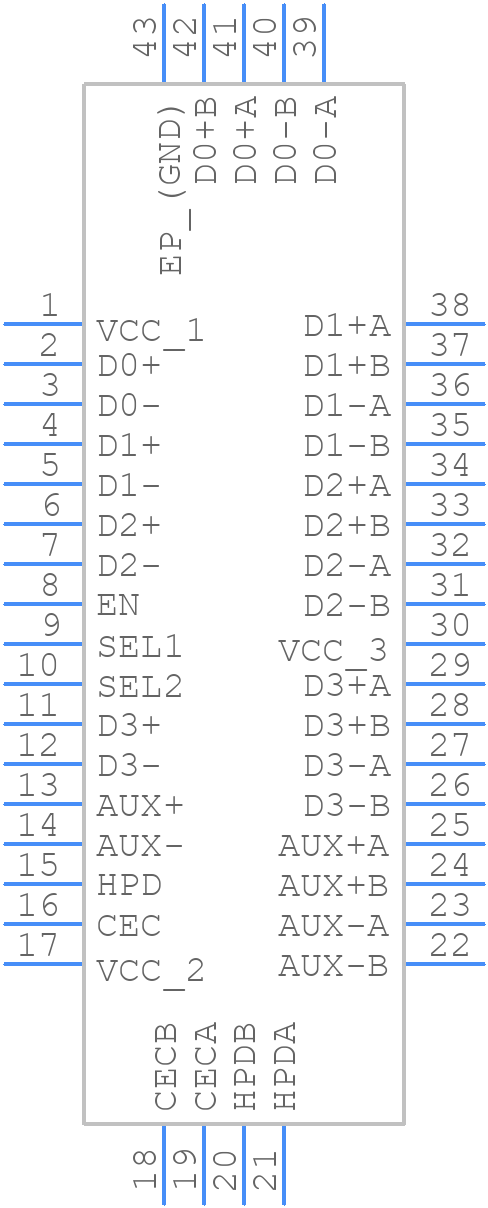

Part Symbol
-

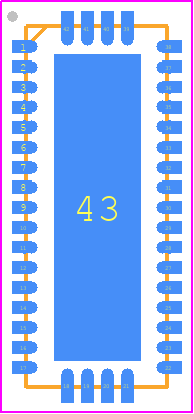

Footprint
-

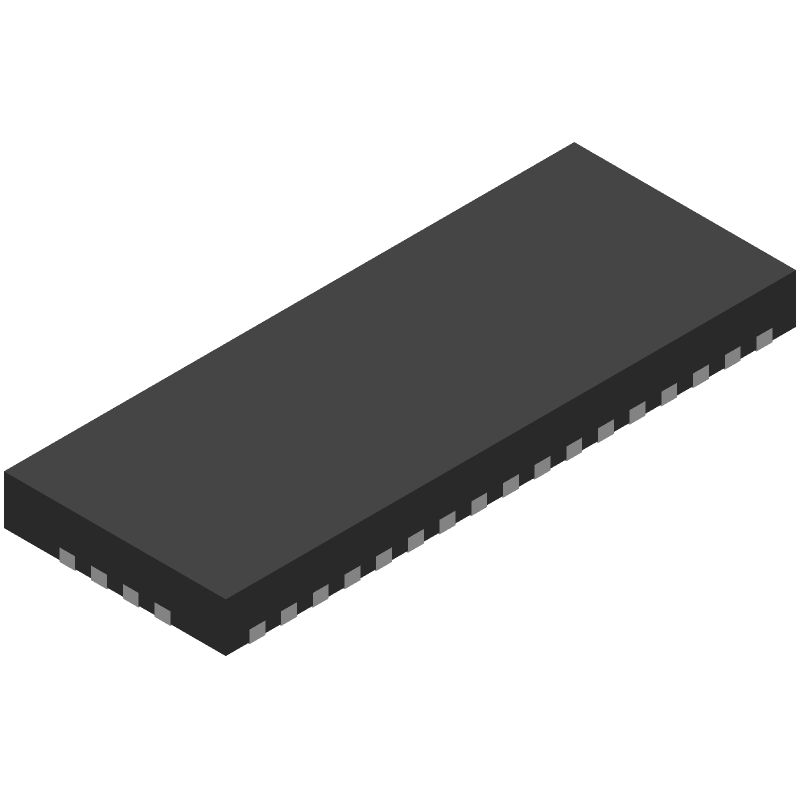

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS3DV621RUAR by Texas Instruments
Results Overview of TS3DV621RUAR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for TS3DV621RUAR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-30394-1-ND
|
DigiKey | IC VIDEO SWITCH 42WQFN Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3105 In Stock |
|
$0.8943 / $1.8400 | Buy Now |
|
DISTI #
595-TS3DV621RUAR
|
Mouser Electronics | Video Switch ICs 12Ch 1:2 Mux/DeMux RoHS: Compliant | 638 |
|
$0.8800 / $1.7200 | Buy Now |
|
DISTI #
V72:2272_07426850
|
Arrow Electronics | Analog Multiplexer Twelve 1:2 42-Pin WQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2229 Container: Cut Strips | Americas - 875 |
|
$0.8566 / $0.9294 | Buy Now |
|
DISTI #
63402192
|
Verical | Analog Multiplexer Twelve 1:2 42-Pin WQFN EP T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2229 | Americas - 875 |
|
$0.8566 / $0.9294 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 2234 |
|
$0.6227 / $1.8870 | Buy Now |
|
|
Quest Components | SPECIALTY CONSUMER CIRCUIT, PQCC42 | 1787 |
|
$0.6919 / $2.5160 | Buy Now |
|
|
Quest Components | SPECIALTY CONSUMER CIRCUIT, PQCC42 | 1787 |
|
$0.9765 / $2.6040 | Buy Now |
|
|
Quest Components | SPECIALTY CONSUMER CIRCUIT, PQCC42 | 1372 |
|
$0.6836 / $1.6275 | Buy Now |
|
DISTI #
TS3DV621RUAR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2999 |
|
$0.6790 / $0.8920 | Buy Now |
Part Details for TS3DV621RUAR
TS3DV621RUAR CAD Models
TS3DV621RUAR Part Data Attributes
|
|
TS3DV621RUAR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TS3DV621RUAR
Texas Instruments
3.4-Gbps 12-channel differential 1-to-2 and 2-to-1 mux for DVI 1.0 /HDMI 1.4 applications 42-WQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | WQFN-42 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| JESD-30 Code | R-PQCC-N42 | |
| JESD-609 Code | e4 | |
| Length | 9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 42 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC42,.14X35,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.5 mm |
