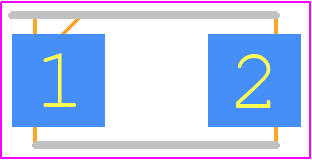

Footprint
-

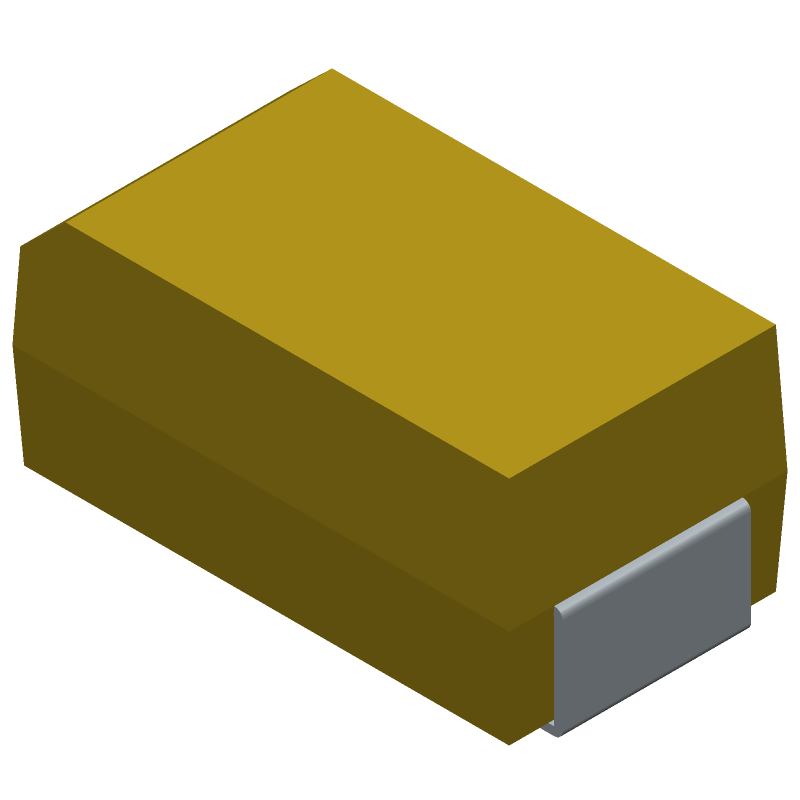

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPSC157K006T0100 by Kyocera AVX Components
Results Overview of TPSC157K006T0100 by Kyocera AVX Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPSC157K006T0100 Information
TPSC157K006T0100 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for TPSC157K006T0100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC8536
|
Newark | Tant Cap, Polymer, Aec-Q200, 150Uf/Case C, Capacitance:150Μf, Voltage(Dc):6.3V, Capacitor Case/Package:2312 [6032 Metric], Capacitance Tolerance:± 10%, Esr:0.1Ohm, Manufacturer Size Code:C, Failure Rate:-, Ripple Current:1.05A Rohs Compliant: Yes |Kyocera Avx TPSC157K006T0100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9 |
|
$0.0990 | Buy Now |
|
DISTI #
46AC8537
|
Newark | Tant Cap, Polymer, Aec-Q200, 150Uf/Case C, Capacitance:150Μf, Voltage(Dc):6.3V, Capacitor Case/Package:2312 [6032 Metric], Capacitance Tolerance:± 10%, Esr:0.1Ohm, Manufacturer Size Code:C, Failure Rate:-, Ripple Current:1.05A Rohs Compliant: Yes |Kyocera Avx TPSC157K006T0100 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3400 / $0.4000 | Buy Now |
|
DISTI #
478-11486-1-ND
|
DigiKey | CAP TANT 150UF 10% 6.3V 2312 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3591 In Stock |
|
$0.3315 / $1.1000 | Buy Now |
|
DISTI #
TPSC157K006T0100
|
Avnet Americas | Surface Mount Tantalum Capacitor, 150 uF, 6.3 V, ? 10%, -55 ?C, 125 ?C, 2312 [6032-28 Metric] - Tape and Reel (Alt: TPSC157K006T0100) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.2812 | Buy Now |
|
DISTI #
46AC8536
|
Avnet Americas | Surface Mount Tantalum Capacitor, 150 uF, 6.3 V, ? 10%, -55 ?C, 125 ?C, 2312 [6032-28 Metric] - Product that comes on tape, but is not reeled (Alt: 46AC8536) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 3 Days Container: Ammo Pack | 0 |
|
$0.5420 | Buy Now |
|
DISTI #
581-TPSC157K006T0100
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 6.3V 150uF 10% 2312 ESR 100mOhm AEC-Q200 RoHS: Compliant | 1086 |
|
$0.3410 / $1.1000 | Buy Now |
|
DISTI #
73979600
|
RS | Low ESR MnO2,150 uF,6.3 V Min Qty: 500 Package Multiple: 1 Lead time: 33 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8600 / $1.0100 | RFQ |
|
DISTI #
TPSC157K006T0100
|
TME | Capacitor: tantalum, 150uF, 6.3VDC, SMD, C, 2312, ±10%, -55÷125°C Min Qty: 500 | 0 |
|
$0.3040 / $0.3880 | RFQ |
|
DISTI #
TPSC157K006T0100
|
Avnet Abacus | Surface Mount Tantalum Capacitor 150 uF 63 V 10 55 C 125 C 2312 603228 Metric - Tape and Reel (Alt: TPSC157K006T0100) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 14 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for TPSC157K006T0100
TPSC157K006T0100 CAD Models
TPSC157K006T0100 Part Data Attributes
|
|
TPSC157K006T0100
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
TPSC157K006T0100
Kyocera AVX Components
Tantalum Capacitor, Tantalum (dry/solid),
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 150 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 100 mΩ | |
| Height | 2.6 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.0095 mA | |
| Length | 6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, PLASTIC, 7 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 420 mA | |
| Size Code | 2312 | |
| Surface Mount | YES | |
| Tan Delta | 0.06 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | J BEND | |
| Width | 3.2 mm |
TPSC157K006T0100 Frequently Asked Questions (FAQ)
-
The recommended land pattern for TPSC157K006T0100 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
-
To prevent damage, handle the component by the edges, avoid touching the terminals, and use an anti-static wrist strap or mat. Also, ensure the assembly area is clean and free from debris.
-
The maximum reflow temperature for TPSC157K006T0100 is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
-
Yes, TPSC157K006T0100 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress and vibration-induced failures.
-
Store TPSC157K006T0100 components in their original packaging, in a dry, cool place, away from direct sunlight and moisture. Avoid exposing them to extreme temperatures, humidity, or physical stress.
