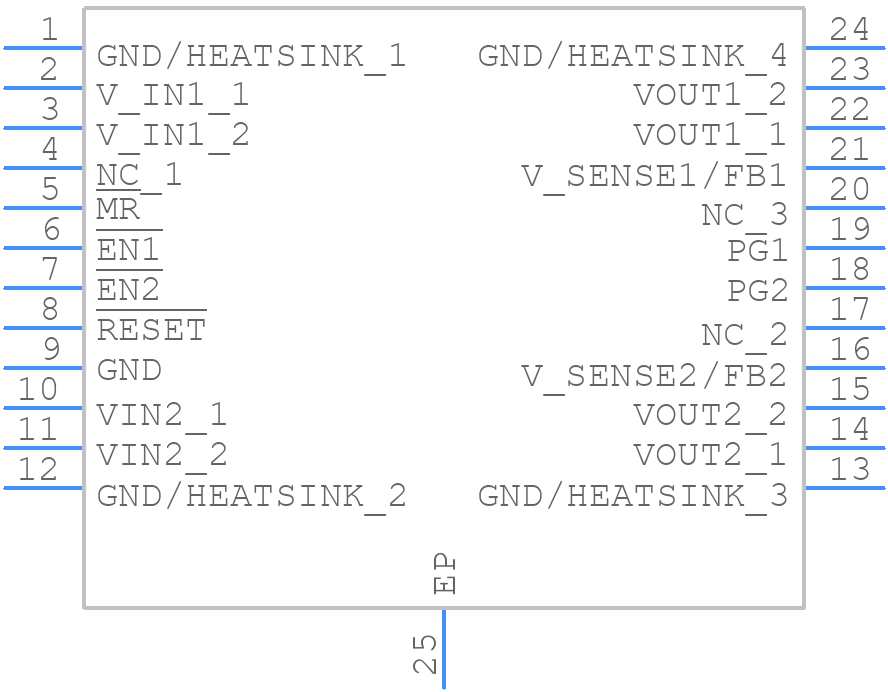

Part Symbol
-

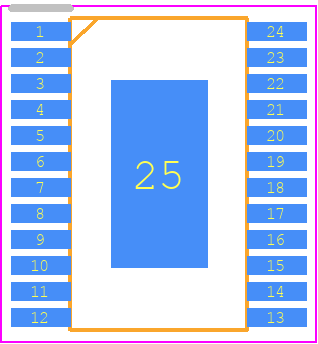

Footprint
-

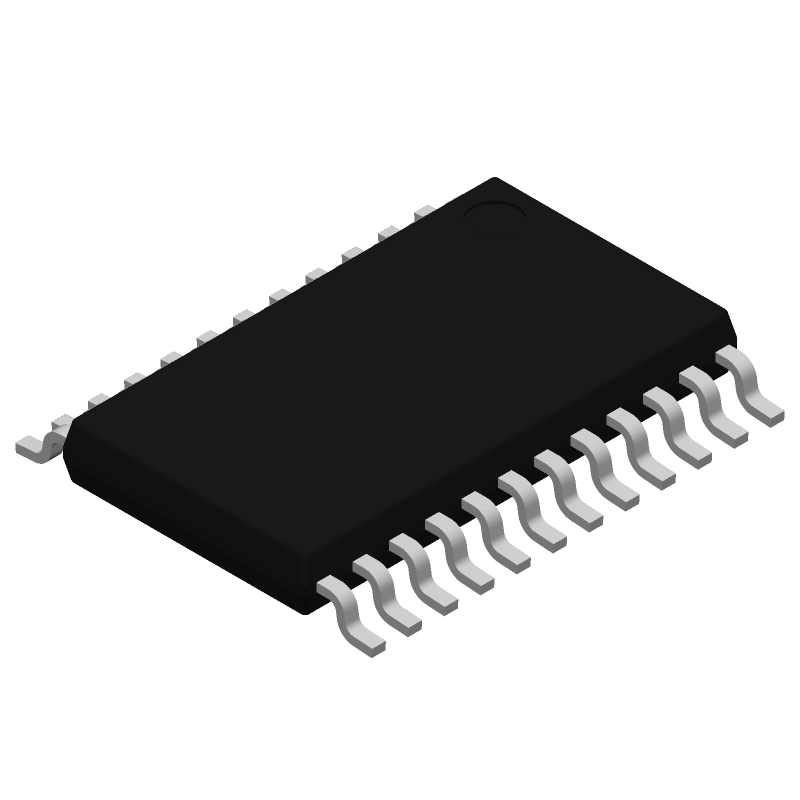

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS70448PWP by Texas Instruments
Results Overview of TPS70448PWP by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS70448PWP Information
TPS70448PWP by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS70448PWP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TPS70448PWP-ND
|
DigiKey | IC REG LINEAR 3.3/1.5V 24HTSSOP Min Qty: 62 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
13745 In Stock |
|
$4.8800 | Buy Now |
|
DISTI #
296-8028-5-ND
|
DigiKey | IC REG LINEAR 3.3/1.5V 24HTSSOP Min Qty: 62 Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
$5.2589 | Buy Now |
|
DISTI #
595-TPS70448PWP
|
Mouser Electronics | LDO Voltage Regulators Dl-output 3.3V/1.2V 1A/2A A 595-TPS70448PWPR RoHS: Compliant | 0 |
|
$5.0300 / $10.0200 | Order Now |
|
DISTI #
V99:2348_07421725
|
Arrow Electronics | LDO Regulator Pos 1.5V3.3V 1A/2A 24-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1747 | Americas - 79 |
|
$1.4160 / $3.8618 | Buy Now |
|
DISTI #
86049547
|
Verical | LDO Regulator Pos 1.5V3.3V 1A/2A 24-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 64 Package Multiple: 1 | Americas - 12973 |
|
$4.6875 / $5.8625 | Buy Now |
|
DISTI #
86049194
|
Verical | LDO Regulator Pos 1.5V3.3V 1A/2A 24-Pin HTSSOP EP Tube RoHS: Compliant Min Qty: 64 Package Multiple: 1 Date Code: 0001 | Americas - 764 |
|
$4.6875 / $5.8625 | Buy Now |
|
|
Rochester Electronics | TPS704 Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Power Good RoHS: Compliant Status: Active Min Qty: 1 | 13745 |
|
$3.7500 / $4.6900 | Buy Now |
Part Details for TPS70448PWP
TPS70448PWP CAD Models
TPS70448PWP Part Data Attributes
|
|
TPS70448PWP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS70448PWP
Texas Instruments
1-A, dual-channel ultra-low-dropout voltage regulator with power good & independent enable 24-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.25 V | |
| Dropout Voltage1-Nom | 0.16 V | |
| Dropout Voltage2-Max | 0.25 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 3.616 V | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 mm | |
| Line Regulation-Max | 0.0056% | |
| Load Regulation-Max | 0.001% | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Current2-Max | 2 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Output Voltage2-Max | 1.53 V | |
| Output Voltage2-Min | 1.47 V | |
| Output Voltage2-Nom | 1.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.2 mm | |
| Surface Mount | YES | |
| Technology | PMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 4.4 mm |
